| Prod Model: |
SQ5 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

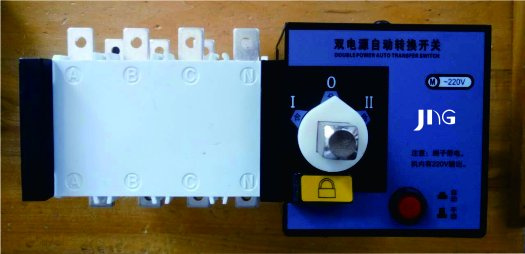

Sq5 Series Dual Power Automatic Transfer Switch (hereafter called as SQ5) is a kind of new professional ATS, and main componentsparts including logic intelligence controller, electric mechanical interlock device , and independent arc-arc extinguishing chamber. achieve mechanic and electricity turn into a integral whole. It was widely used in the place where the high reliable power supply required. Rated volt:400Vac, (Frame insulation Level:800Vac), rated frequency 50Hz, conventional heating current up to 3200A.
It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and military installation etc.
The switch is an operation device that various logic order is sent by control circuit board to managing electrical engine, then through gear box, arouses spring store energy, release instantaneously after
deceleration. So that can make and break circuit quickly or make circuit transfer. By obvious state can achieve safety insulation.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation; While have lack phase examination and protection, under/over voltage examination and protection, frequency
examination and protection and delay regulation, electric mechanism interlock etc. Function The switch is the best choice of the same kind product with beautiful appearance, novel, simple and direct design, small volume, complete function.
1. Altitude of not over 2000 meters.
2. The upper limit of the ambient temperature is not higher than +40 , the lower l imit is not
lowerthan -5 , 24-hour average does not exceed +35 .
3. The relative humidity of the ambient air atmosphere at a temperature of +40 not more than
50%, at lower temperatures, there can be higher temperatures, condensation products should
take into account the surface temperature change.
4. No explosive medium, and the medium enough to corrode and damage the insulation of gas
and dust.
5. No significant shake and shock vibration.
Guangzhou Ruihu Electric Co., Ltd. Can Professionally provide all kinds of 10kv to 42kv electrical distribution production and components and some low voltage production. The production informat as below.
10kv up to 36kv Cooper power system Brand pad mounted transformer
Components:
15kv/27kv/38kv/46kv two positions/three postions/four postions loadbreak switch,
15kv/27kv/38kv 250A Elbow,
15kv/27kv/38kv Elbow arrest,
Voltage indicator, fualt indicator,
15kv/27kv/38kv Bay-o-net fuse holder assembly,
15kv/27kv/38kv Single phase and three phase Magnex
15kv/27kv/38kv Dual sensing fuse, ELSP Backup fuse,
15kv/27kv/38kv Loadbreak bushing insert, loadbeak Rotatable feedthru insert,
15kv/27kv/38kv Tap changer switch, insulated protective cap,
FR3 transformer high fire point oil
15kv/27kv/38kv Bushing well;
Low voltage 0.4kv- 1000V capacitor, contractor.
Door lock
Hot stick
Fault indicator
Overhead line indicator,
Test type fault indicator,
Cable mounted fault indicator,
Panel mounted fault indicator(EKL4 EMG brand)
Cooper brand fuse
Hight voltage from 3.6kv up 42kv fuse used RUM(loadbreak with fuse unit) and PT and pad mounted transformer
Low voltage fast speed fuse
***Cooper power system brand cable terminal(12kv up to 42kv)***
IEC separable connector, 250A streight and ELbow, 630A bolt T connector Bushing 250A, 630A. From 12kv up to 36kv(Italy brand)
ANSI separable connector, 15kv\25kv\35kv 200A Series and 600A Series
Cold shrinkable cable terminal
Heat shrinkable cable terminal
Open core current transformer, PT
RMU
Cooper power system brand, ABB, Schneider, ormazabal, Siemens,
and SF6 RMU loadbreak swtich comonent, mechanism, fuse holder, bushing, ground swtich, SF6 express indicator, insulator, voltage indicator,
High voltage capacitor
From 2kv up to 25kv, single phase
100kar, 200kar, 300kar, 334kar, 400kar, 500kar, 750kar, 800kar, 1000kar, 1200kar
Overhead loadbreak, overhead interrupter, reclose.
Vacuum or SF6
Cutout, cutout fuse. Disconnector.
Vacuum contractor, vacuum switchgear(VD4, VS1, VN2-24, CE, VN3-12, VN1-36).
Relay
FUSE
High voltage fuse 12kv-42kv, 3A, 8A, 10A, 15A, 20A, 31.5A, 40A, 50A, 63A, 100A
Low voltage fuse 0.4kv-1000V
NH and RT16 fuse 0.4kv-1000V
And low voltage production.
You are welcome.
