| Prod Model: |
JT2088 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
DC12-32V |
| Mounting Hole Pitch: |
44mm |
| Transmitter Matching: |
Pressure and Level Transmitter |
| Dimension: |
Diameter=52mm |
| Operating Temperature: |
-30°c ~ +70°c |
| Accuracy Grade: |
0.2% |
| Pressure Range: |
4-20mA |
Product Description

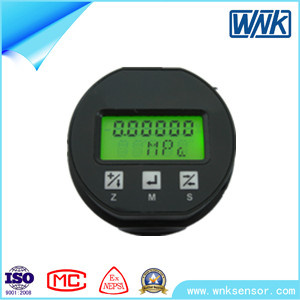

JT2088 Diezoresistive Intelligent Pressure Circuit BoardJT2088 Diezoresistive Intelligent Circuit Board replaced the original 4~20mA analog board. With the main body of Microcontrollers CPU, JT2088 is capable to do logical operation and programming. It combines analog and digital circuit in one machine, so is able to output analog signal as well as digital signal. Parameters configuration and compensation of transmitters can be done by buttons on LCD module and internal debugging program. JT2088 supports standard diffused silicon, strain gauge,piezoresistive ceramic pressure sensors. It is suited for 2088 housing.
Features - Intelligent Pressure Circuit Board1.Two wires working mode provides sensors with two exciting ways - constant current and constant voltage.
2. Calibrating as per full scale realizes bulk production
3.Easy to do temperature compensation, under -20~70ºC the complete machine accuracy better than 0.5% (including accuracy of sensors)
4.Three points calibrating, complete machine accuracy better than 0.2%. Multi-point calibrating is available as required.
5.AD accuracy > 20 bits, DA accuracy > 16 bits;
6.span can be changed on-site by LCD module buttons without standard pressure source
7.Small signal wiping off and reset function
8.LCD head is available to use once connected with sensor, free from calibration. And the head is dismountable, customers could equip LCD indicator or not.
Technical Parameters- Intelligent Pressure Circuit Board
| Supply power | DC12-32V (DC 24V is suggested) |
| Constant current excitation | 0.4mA(suitable for diffused silicon, strain gauge sensors) |
| Constant voltage excitation | 2.5VDC(suitable for piezoresistive ceramic pressure sensors) |
| Sampling rate | 20~30times/s |
| Displaying and bits | LCD with backlight, displaying 5 bits, and 4 decimal places |
| Displaying units | Ten displaying units as KPa, Pa, MPa, mmH2O, mH2O, mbar, bar, PSI, M,% |
| Output resolution | 1uA |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity is better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Range ratio | 10:01 |
| Circuit protection Measurement | surge current protection, reverse power protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200M |
| Communication Protocol | Private protocol |
| Adjusting method | by buttons on LCD head or program on pc |
| Dimensions | OD=52mm, Mounting hole pitch=44mm (suited for pressure and level transmitter in 2088 housing) |
| Motherboard buttons operation | reset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration) |
| LCD head buttons operation | changing span units, decimal place, output features, changing damping time, currant fixing, write-protection,factory reset and zero clearing |
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
