Different Specification Customized PVC Insulated Electrical Wire
| Price: |
US $ 0.2-1.8/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BV BVR |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Produceing Experience: |
More Than 15 Years |
| Export Experience: |
Indonesia,Phillpines,Australia,South Ameria,Russia |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Household,Building,Equipment Inner Connection |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
Product Description

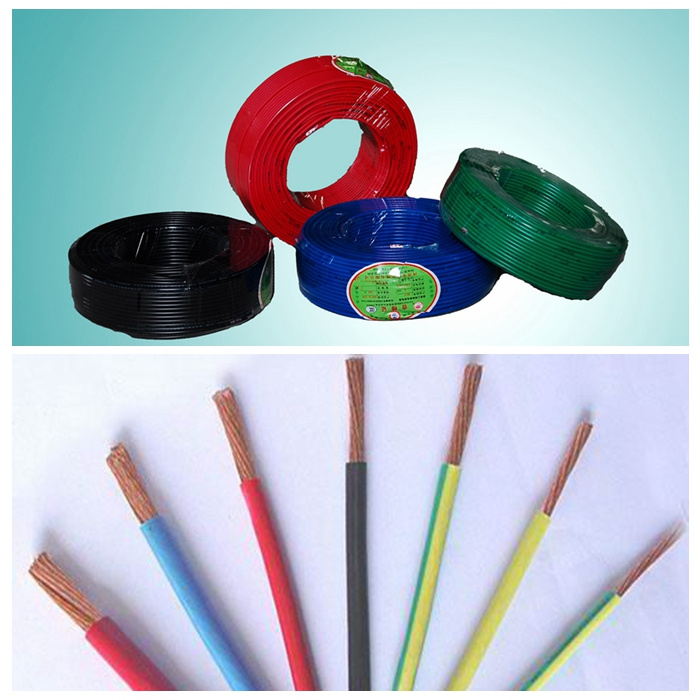

PVC Insulated Electrical Wire for Equipment and Household
Different size and specification including H07V-U H-7V-R H0V-K can be Customized for your different requirement
Rated voltage 300/500V,450/750V Electric Wire Standard:
GB 5023.1, IEC 60227 ,BS6004,B S6242Y 3Structure:Conductor:Solid or Stranded Copper
Insulation:PVC
Sheathing:PVC
Specification:0.5mm2, 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2,6.0mm2........185mm2
Color:Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

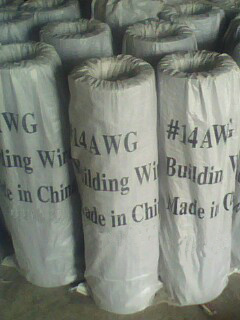

Packing:100Meter per Roll, then put into PP Plastic bags or into Cartons.
Drum or According to the customer's request
Technical Type Introduction:
Type
| Description | Core Number | Area
mm2 | Voltage
V | Standard |
227IEC01
(BV) | Single-core hard drawn
non-sheathed cable | 1 | 1.5~400 | 450/750 |
GB5023.3
IEC60227 |
227IEC02
(RV) | Single-core soft drawn
non-sheathed cable | 1 | 1.5~240 | 450/750 |
227IEC05
(BV) | Single-core solid conductor
drawn non sheathed cable for internal wiring is 700C | 1 | 0.5~1.0 | 300/500 |
227IEC06
(RV)
Flexible type | Single-core soft drawn non sheathed cable for internal wiring is700C | 1 | 0.5~1.0 | 300/500 |
227IEC07
(BV-90) | Single-core solid conductor drawn non sheathed cable for Indoors wiring is 900C | 1 | 0.5~2.5 | 300/500 |
227IEC08
(RV-90) | Single-core Soft drawn non sheathed Wire for indoors wiring is 900C | 1 | 0.5~2.5 | 300/500 | GB5023.3 |
227IEC10
(BVV) | PVC sheathed Wires | 2~5 | 1.5~35 | 300/500 | GB5023.4 |
227IEC52
(RVV) | PVC sheathed Soft wires | 2,3 | 0.5/0.75 | 300/300 | GB5023.5 |
227IEC53
(RVV) | Ordinary PVC sheathed soft wires | 2~5 | 0.75~2.5 | 300/500 |
| BV | Cu-core PVC insulated wires | 1 | 0.75/1.0 | 300/500 | JB8734.2 |
| BLV | Al-core PVC insulated wires | 1 | 2.5~400 | 450/750 |
| BVR | Cu-core PVC insulated soft wires | 1 | 2.5~70 | 450/750 |
| BVV | Cu-core PVC insulated and sheathed circle type wires | 1 | 0.75~10 | 300/500 | JB8734.2 |
| BLVV | Al-core PVC insulated and sheathed circle type cable | 1 | 2.5~10 | 300/500 |
BVVB
(Flat) | Cu-core PVC insulated and sheathed Flat type cable | 2,3 | 0.75~10 | 300/500 |
BLVVB
(Flat) | Al-core PVC insulated and sheathed Flat type cable | 2,3 | 2.5~10 | 300/500 |
| RVVP | Cu-core PVC insulated and sheathed the Metallic shielded soft cable | 1~24 | 0.08~2.5 | 300/500 | JB8734.5 |
If you want to know more techincal information,pls contact us.
sending email or telephon us:
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Cables and Wires
Be Your Most Reliable Supplier
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
