| Prod Model: |
RV AV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Size: |
From 0.35mm2, 0.5mm2..2.5mm2..to 35mm2 |
| Color: |
Red, Blue, Green, Balck, Yellow, Orange, ...... |
| Produceing Experience: |
15 Years |
| Export Experience: |
Australia, Southeast Asia, Germany, Europe |
| OEM: |
Yes |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Automotive, Auto Light |
| Insulation Material: |
Teflon |
| Certification: |
VDE |
| Conductor Material: |
Cu, Tinned Copper |
| Sheath Material: |
Non-Sheathed |
| Range Of Application: |
Auto Wire, High Temperaturue Wire, Flame Resistant |
Product Description

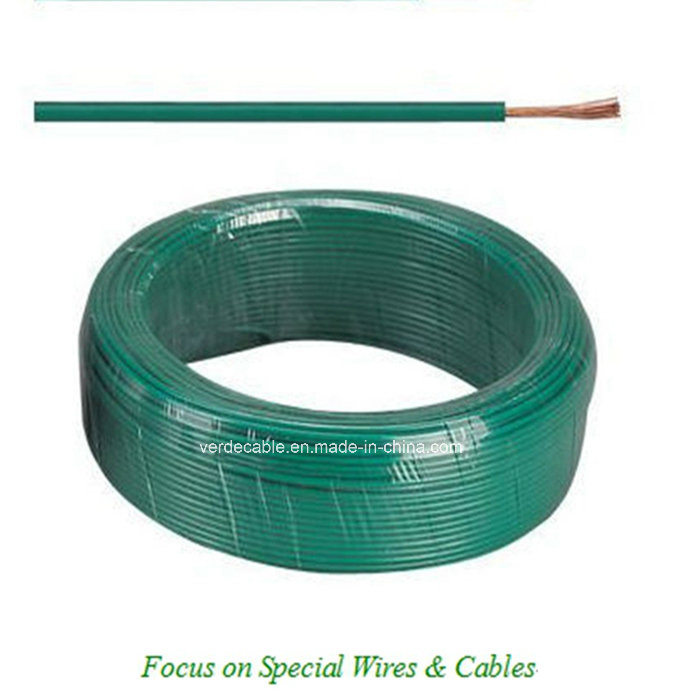

200ºC Heat resisting Auto cable Automotive wire for Internal using in the Car
1.Different Specification Automotive wire can be Customized by the client's special requirement.
2.OEM is available.3.Product features:Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage
4.Technical Specification Type:Type 1: FLRY-B
Flame Retardant Single core thin-wall Insulated wire
Temperature: -40'C ~+105'C
Conductor: bare copper stranded wires
Insulation: 105'C flame retardant PVC
Type 2: AV
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant PVC
Type 3: AVS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 4: AVS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 5: AVSS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 6: AVX
Temperature: -40'C ~+100'C
Conductor: bare copper stranded wires
Insulation: 105'C flame retardant PVC
Type 7: AEX (Heat resisting type)
Temperature: -40'C ~+120'C
Conductor: bare copper stranded wires
Insulation: 120'C Compounded XLPE
Type 8: QVR
Temperature: -25'C ~+70'C
Conductor: bare copper stranded wires
Insulation: 70'C flame retardant PVC
Insulation material: besides PVC,XLPE, we can also supply with FEP PFA PTFE Teflon and
UV irradiation XLPE Insulated automotive wire.
More types can be customized according to the customer's request
5.. Color:red yellow blue green white black orange purple brown
different color according to the customer's request6. Specification for FEP Coated Automotive wire (AF200)| Conductor Nominal Section(mm2) | Conductor Construction (No/mm) | Average.
Insulation Thickness
(mm) | Calculated.
Outer Diameter
(mm) | D.C. conductor resistance at 20ºC(Ω/km) |
| Tinned copper | Silver coated copper |
| 0.035 | 7/0.08 | 0.20 | 0.64 | 562 | 550 |
| 0.05 | 10/0.08 | 0.30 | 0.90 | 383 | 370 |
| 0.06 | 7/0.10 | 0.30 | 0.90 | 348 | 339 |
| 0.08 | 7/0.12 | 0.30 | 0.96 | 286 | 280 |
| 0.10 | 7/0.14 | 0.30 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.30 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.30 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.30 | 1.10 | 111 | 105 |
| 0.20 | 7/0.02 19/0.12 | 0.30 | 1.20 | 87 | 82 |
| 0.35 | 19/0.16 | 0.30 | 1.40 | 57 | 54 |
| 0.50 | 19/0.18 | 0.30 | 1.50 | 40 | 37.5 |
| 0.80 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1.00 | 19/0.26 | 0.35 | 2.00 | 21 | 20 |
| 1.20 | 19/0.28 | 0.45 | 2.30 | 19 | 18 |
| 1.50 | 19/0.32 | 0.45 | 2.50 | 13 | 12 |
| 2.00 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.50 | 37/0.30 | 0.55 | 3.20 | 8 | 7 |
| 3.00 | 37/0.32 | 0.68 | 3.60 | 6.8 | 6.4 |
We list one parts of automotive wire we produce,if you want to know more information about automotive wire,pls send me email or telephone us:0086-13938400126

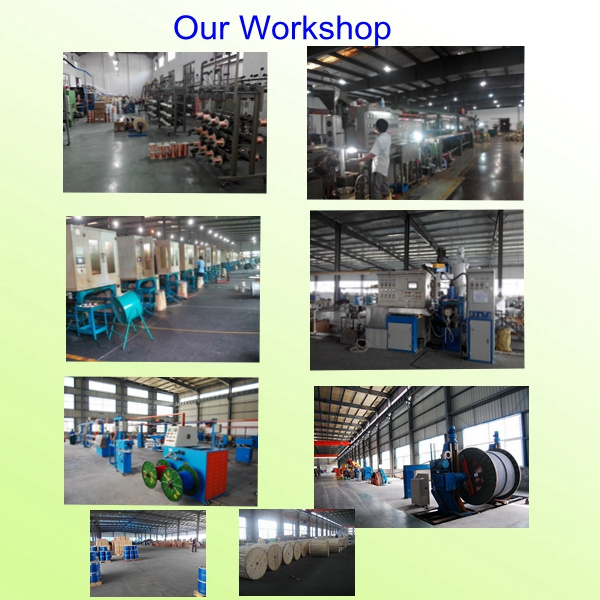

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
