Different Types of Electrical Cables

Different Types of Electrical Cables
Price: US $ 0.1-30/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: different types of electrical cables
Product Name: PVC Insulated 0.6/1kv Copper PVC Power Cable
Rated Voltage: 0.6/1 Kv
Conductor: Copper
Insulation: XLPE / PVC
Sheath: PVC
Core Number: 1 2 3 4 5
Color Color: Red , Yellow , Blue ,Green or as Your Requirement
Origine: Shandong , China
Packaging: Wooden Drum
Shipping: 3-10 Working Days
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: VDE
Model: XLPE Power Cable
Brand: Chan Qing Teng

Product Description

ITEM NAME : Different Types of Electrical Cables



Application  of  different types of electrical cables

These cables are used for electricity supply in low voltage installation system,
They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power
and switching stations, local energy distributions, industrial plants, where there is no risk of
mechanical damage.

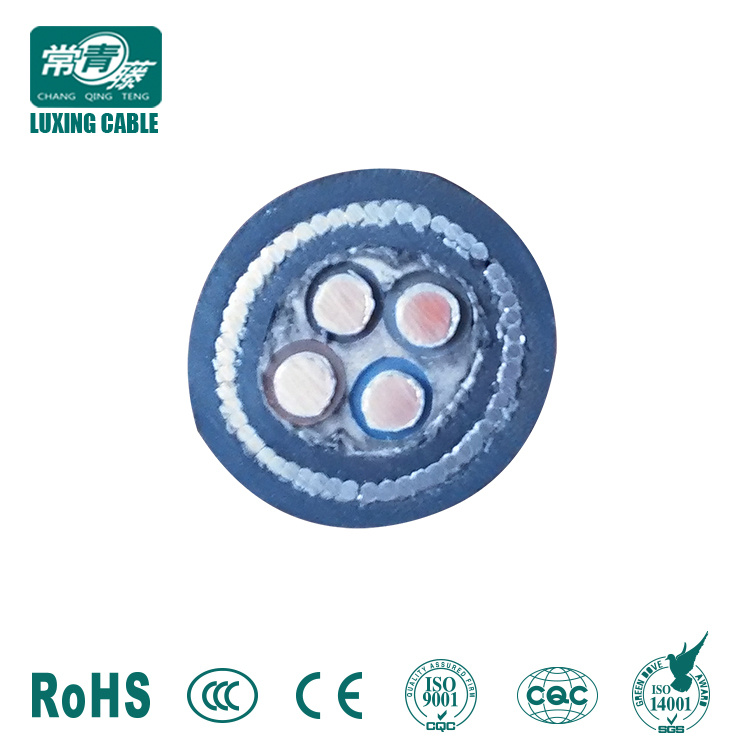

Construction of  different types of electrical cables

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper
or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in
accordance with IEC 60228.


Insulation

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90C continuous operation.


Colour Code

Colour Code (1)

1 Core

Red or Black

2 Cores

Red, Black

3 Cores

Red, Yellow, Blue

4 Cores

Red, Yellow, Blue, Black

5 Cores

Red, Yellow, Blue, Black, Green

Above 5 Cores

Black Cores with White numerals


Colour Code (2)

1 Core

Brown or Blue

2 Cores

Brown, Blue

3 Cores

Brown, Black, Grey

4 Cores

Blue, Brown, Black, Grey

5 Cores

Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores

Black Cores with White numerals



 Assembly /Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with
more than five cores, a lapped inner covering shall be permitted only if the interstices between the
cores are substantially filled. A suitable binder is permitted before application of an extruded inner
covering. The material is compatible with the insulating material,The materials used for inner
coverings and fillers shall be suitable for the operating temperature of the cable and compatible
with the insulating material.For halogen free cables, the inner covering and fillers shall also be
halogen free compound.


Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1,
or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.


Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type
ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar
polymers, type SE1 are also available on request.



Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame
test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material
comply to IEC60754-1/2 and IEC 60684-2.

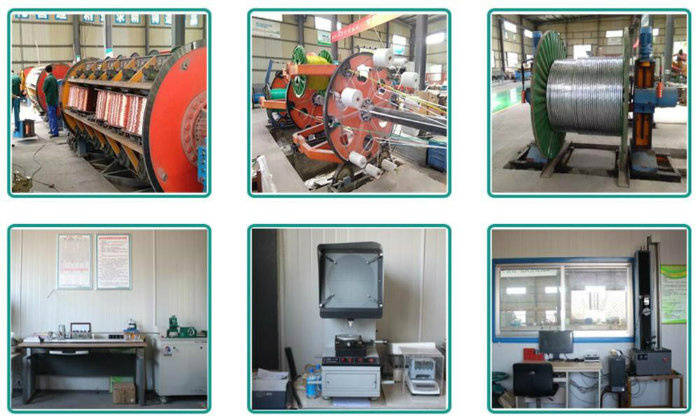

Luxing Factory : Our Production Base

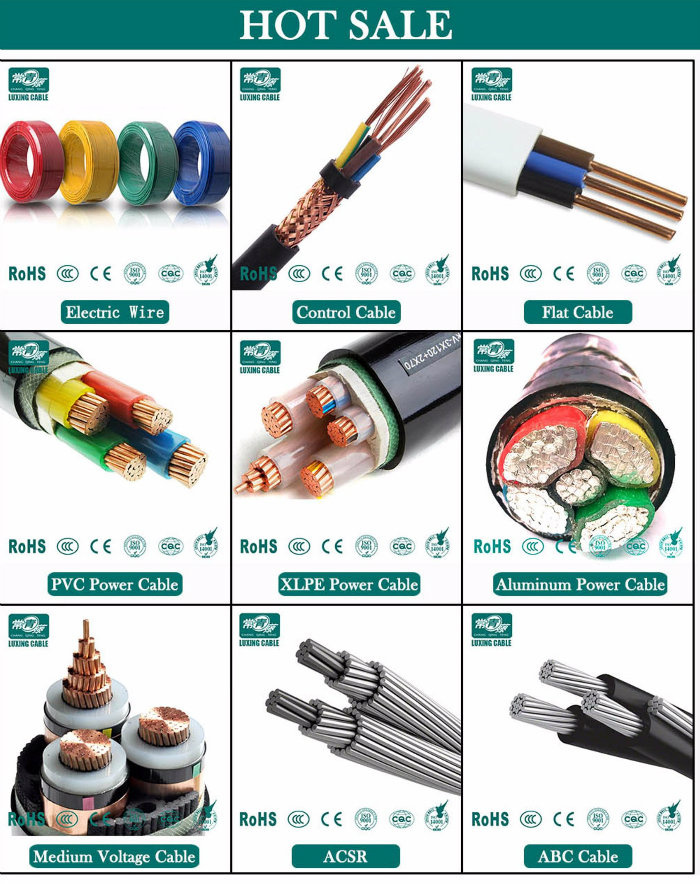

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable

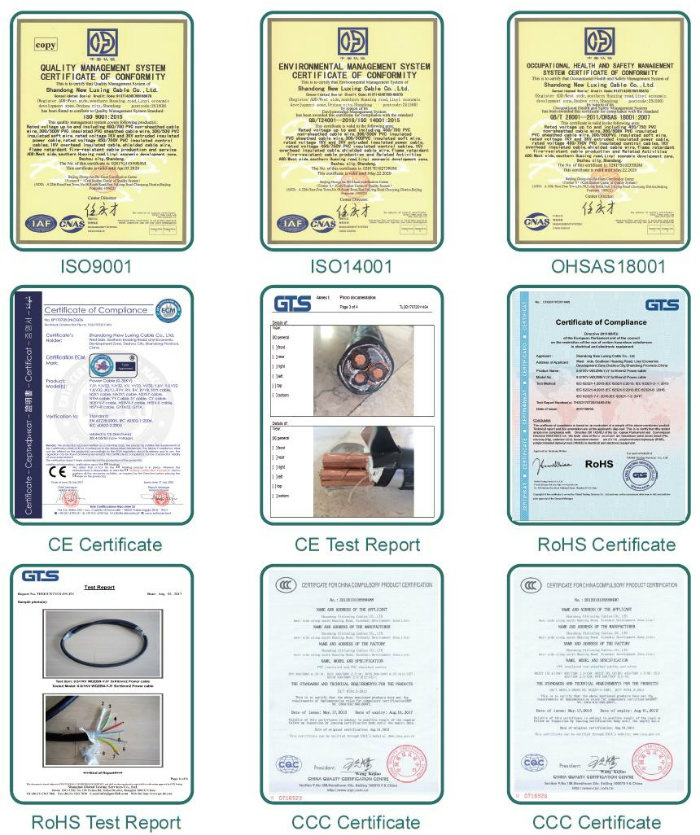

Certificates

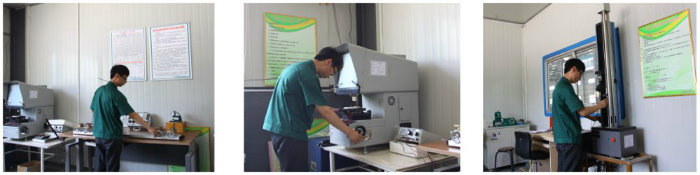

Strict Quality Test


Packaging & Shipping

Why Choose US

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency


Contact Information




1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
