Greensky Power Company Limited >> Different Voltage DC Brushless Motor for Electric Mashine

Different Voltage DC Brushless Motor for Electric Mashine

Different Voltage DC Brushless Motor for Electric Mashine
Price: US $ 27.5-32/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: GS-BLDC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 29/36/42/43/52/60/62mm
Power: 5/10/15/20/30/35/40/50/60/70/80/120W
All Technical Data: Can Be Customized
Structure And Working Principle: Brushless
Operating Speed: Adjust Speed
Application: Power Tools
Brand: GS
Certification: UL, Rohl, CE

Product Description

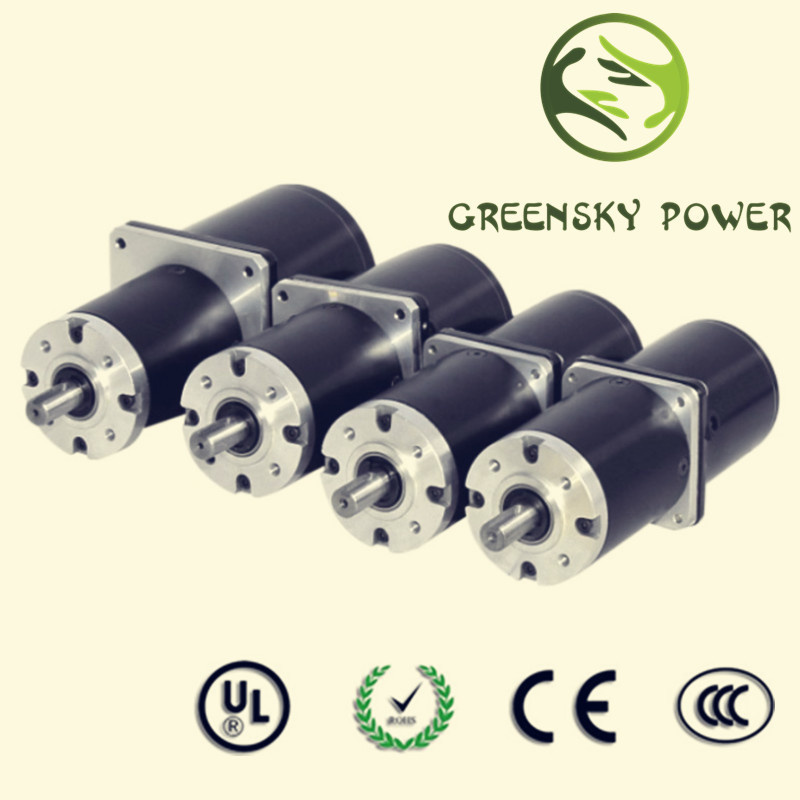

5W ~ 120W Brushless DC Motor

Introduction
Brushless DC motor (BLDC) is made up of motor and driver, which is a kind of typical product of mechanical and electrical and electrical integration. It is high regarded by market as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy.

Specification

Note:

Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

View Of Item

About Greensky Mechanical

  • History:  Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
  • Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
  • Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.



Greensky's Advantage

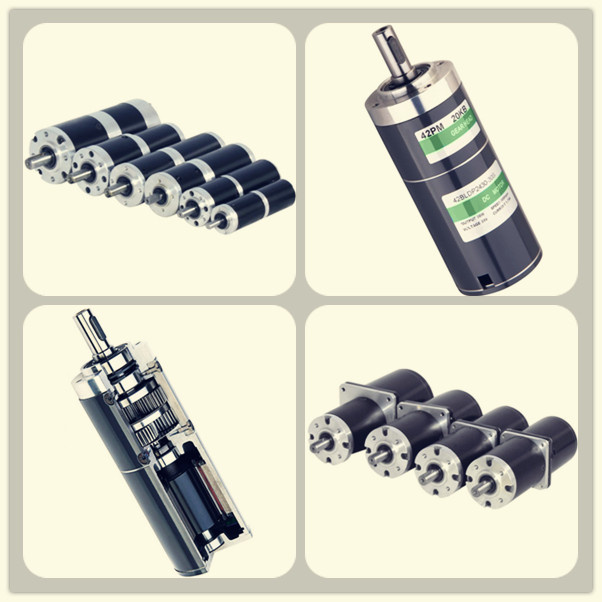

On the site you can find a range of renewable products including ac/dc motor, induction motor, reversible motor, brake motor, speed control motor, ac angel motor, gear motor, planetary gearbox, worm gearbox and their relevant components.


If you have any other questions, please feel free to contact us.

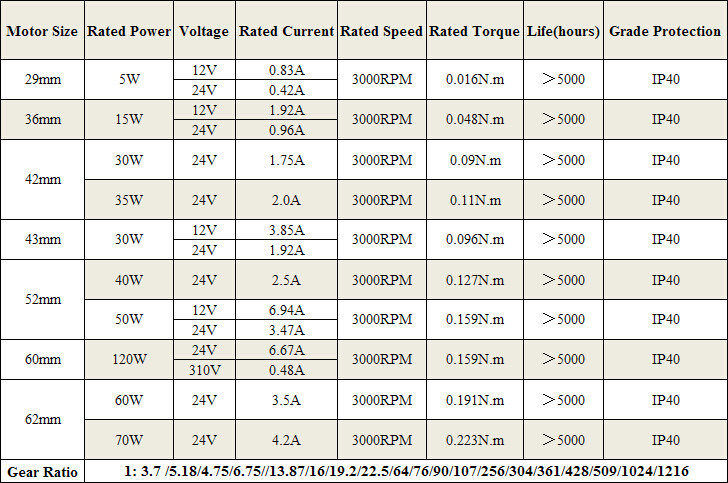

Motor SizeRated PowerVoltageRated CurrentRated SpeedRated TorqueLife(hours)Grade Protection
29mm5W12V0.83A3000RPM0.016N.m>5000IP40
24V0.42A
36mm15W12V1.92A3000RPM0.048N.m>5000IP40
24V0.96A
42mm30W24V1.75A3000RPM0.09N.m>5000IP40
35W24V2.0A3000RPM0.11N.m>5000IP40
43mm30W12V3.85A3000RPM0.096N.m>5000IP40
24V1.92A
52mm40W24V2.5A3000RPM0.127N.m>5000IP40
50W12V6.94A3000RPM0.159N.m>5000IP40
24V3.47A
60mm120W24V6.67A3000RPM0.159N.m>5000IP40
310V0.48A
62mm60W24V3.5A3000RPM0.191N.m>5000IP40
70W24V4.2A3000RPM0.223N.m>5000IP40
Gear Ratio1: 3.7 /5.18/4.75/6.75//13.87/16/19.2/22.5/64/76/90/107/256/304/361/428/509/1024/1216
About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
