Differential Air Pressure Sensor

Name: Differential Air Pressure Sensor
Brand: all-electronics-online.com
SKU: 831422475
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IP18

Product Description

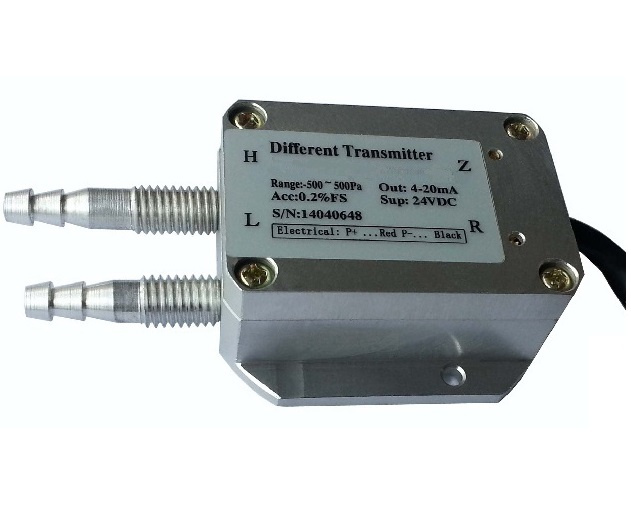

IP18 Dry Media Differential Pressure Transducer

DESCRIPTION:

IP18 series diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.

FEATURES:

MEMS technology ,diffused silicon die, range as low as ±200Pa or 0-400Pa
High accuracy, stability and repeatability, wide pressure range, good compatibility
Cost- performance
EMI/RFI

Technical parameters:

Range	±(50Pa~200Pa~1KPa~10KPa ~100KPa)
High pressure	three times the range values
Comprehensive accuracy	0.5%FS, 1.0%FS
Output signal	4~ 20mA ( two wire system ), 0~5V, 1~5V, 0~10V ( three wire system ),RS485(Modbus protocol)
Power supply voltage	24DCV ( 9 ~ 36DCV)
Medium temperature	-20 °C ~ 85 °C
Environment temperature	room temperature ( -20 ~ 85°C)
Load resistance	current output type: maximum 800 Ω; voltage output type: larger than 50KΩ
Insulation resistance	larger than 2000MΩ ( 100VDC)
Sealed class	IP65
Long term stability	0.1%FS/year
Influence of vibration	within mechanical vibration frequency: 20Hz ~ 1000Hz, output variation is less than 0.1%FS
Electrical interface	The lead wire
Mechanical connection	M10 ×1,custom made is available.
