Differential Pressure Industrial Strain Sensor for Measurement

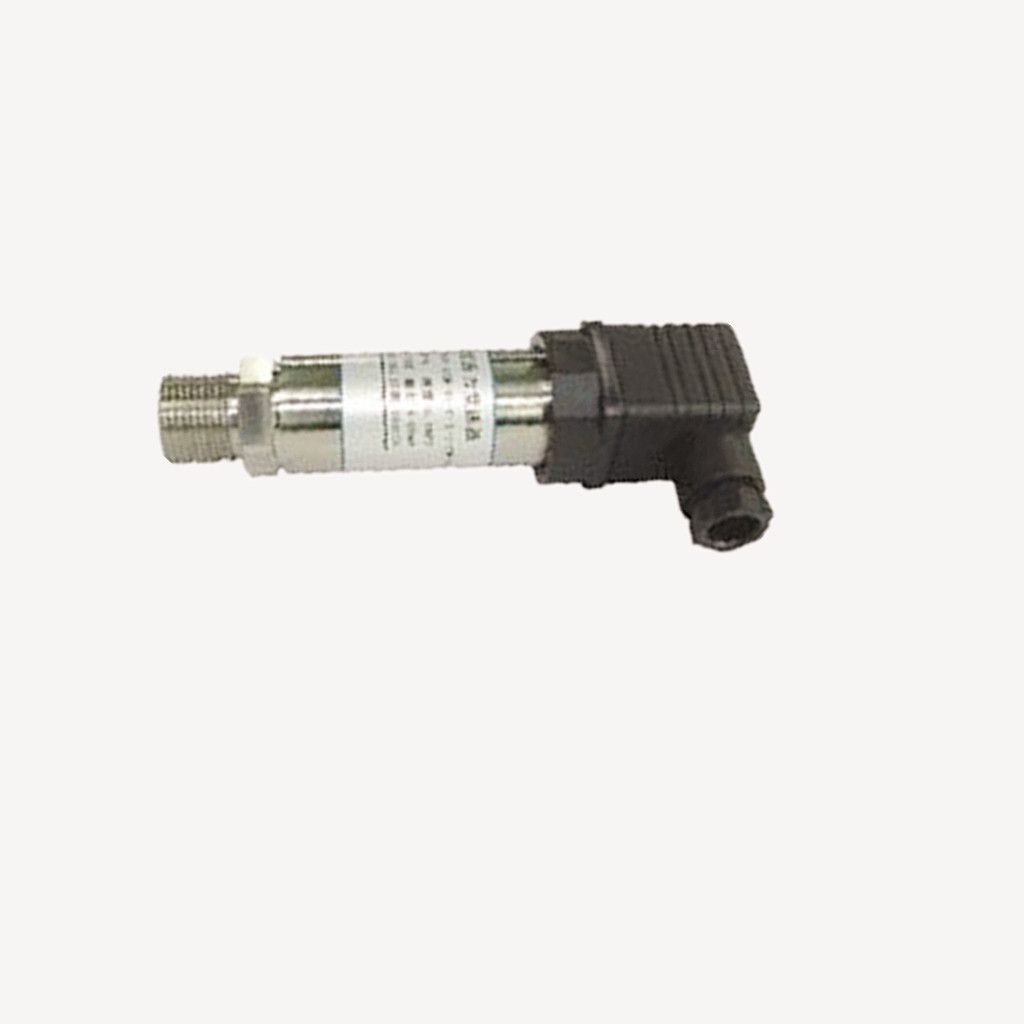

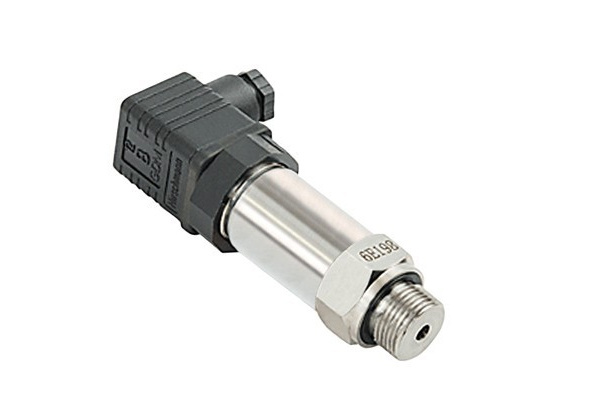

Name: Differential Pressure Industrial Strain Sensor for Measurement
Brand: all-electronics-online.com
SKU: 827750615
Availability: InStock
Rating: 4.9 (69 reviews)

Price:	US $ 500-600/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLS400-05
Scale Range:	-0.1~0~1~150MPa
Feature:	High Sensitivity
Application:	Industrial Strain Sensor
Sealing Rating:	IP65
Wiring Type:	Hessman Plug

Product Description

Differential Pressure Industrial Strain Sensor for Measurement

Scale Range	-0.1~0~1~150(Mpa)
Overall Accuracy	0.25%FS, 0.5%FS
Output Signal	4-20mA (2 Line), 0-5V/ 1-5V/ 0-10V(3 Line)
Supply Voltage	24DCV (9~36DCV)
Medium Temperature	-20~85~105ºC
Ambient Temperature	-20~85ºC
Load Resistance	Current output:Max 800Ω/ Voltage output:more than 50KΩ
Insulation Resisitance	more than 2000MΩ (1000VDC)
Response Time	less than 0.1ms
Sealing Rating	IP65
Long-term Stability	0.1%FS/year
Vibration	During 20HZ~1000HZ, output variation less than 0.1%FS
Electrical Interface	Hessman plug
THreaded Connection	M141.5, M201.5, and customized

Product Feature:
Imported airframe original
316 stainless steel and whole sealing
compact conformation
stable performance
high sensitivity

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

FAQ:
Q: Are you manufacturer?
A: Yes, we are manufacture.

Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.

Q: How to buy 1 pcs to test quality?
A: Please contact us, we have our express agent can choosing the cheapest and fastest way to delivery.

Q: I only want to buy 10pcs, but express is too high cost, what can I do?
A: Please contact us and provide destination port details. We have own forwarder. Working term is very fexible in our company, FOB or C&F are no problem for us

Q: How can I pay to you?
A: We accept , T/T, L/C or you any other payment terms for your convenience.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
