Differential Pressure Sensor (DP500)

Name: Differential Pressure Sensor (DP500)
Brand: all-electronics-online.com
SKU: 624260125
Availability: InStock
Rating: 4.5 (123 reviews)

Price:	US $ 126/Piece
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Prod Model:	DP500

Product Description

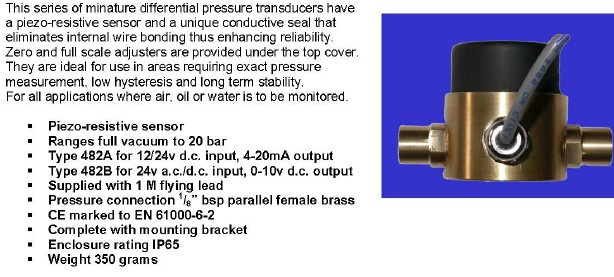

Pressure transducer DP Series
Piezo-resistive sensor
Ranges full vacuum to 20 bar
12/24 v. C. Dinput, 4-20mA output
Or 24 v. Oc/dc input, 0-10v output
Supplied with 1M Flying lead
Pressure connection 1/8 bsp parallel female brass
Complete with mounting bracket
Enclosure rate IP65
Accuracy: 0.25%FS
Temperature range: -20 to +80 Centigrade
Repeatability: 0.2FS/Year typical
Air, oil or water is to be monitored

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
