Prod Model:	IP12

Product Description

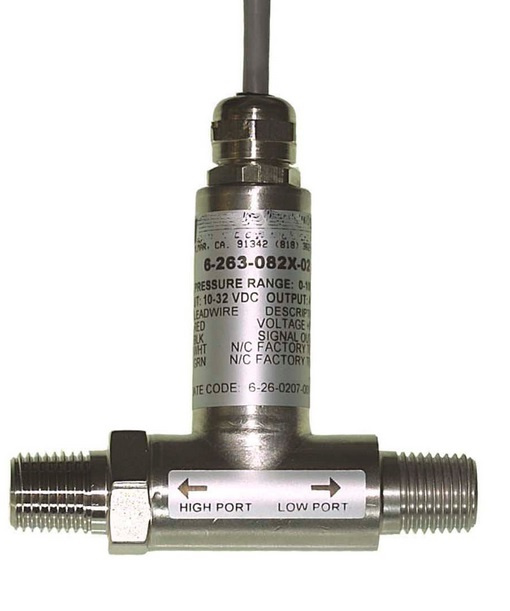

IP12 Differential Pressure Transmitter

Outline

The IP12 anti-corrosion differential pressure transmitter select the high accuracy, high stability isolated pressure sensor that has the strict precision temperature compensation, signal amplification, V / I conversion. It has 4-20mA or 0-10mA signal output and it is connected with the industrial instrument to achieve the accurate measurement of differential pressure and the fluid flow of the corrosive medium on the production process. It is widely used in petroleum, chemical, metallurgy, electric power, textile, environmental protection and other fields, especially in the HVAC system.

Feature

Compact, easy to install.
Double-sided, 316L metal diaphragm, good corrosion resistance.
High precision, stable and reliable.

Parameters

Range	Kpa	-100~0,5,100,500,800,1000
	Mpa	-0.1~0,2,7
Type		gauge,absolute
Output		4-20mA
Accuracy		0.25%FS	0.5%FS
Non-linear		<0.25%FS	<0.5%FS
Hysteresis		<0.25%FS	<0.5%FS
Repeatability		<0.25%FS	<0.5%FS
Zero Drift		<0.1%FS	<0.2%FS
Temperature drift		<0.01%FS	<0.02%FS
Stability(year)		<0.2%FS	<0.25%FS
Supplier		12-36V DC (typical:24V DC)
Working Temp.		-20~85ºC
Over Load		600%
Life		>90 million times (25ºC)
Load Resistance		<750Ω
Response Time		<1ms
Media		Compatible with 316L
Diaphragm Material		316L
Shell Material		1Cr18Ni9Ti
Interface		M20*1.5 ,1/4-18NPT or customized
Explosion Levels		ExibIICT6
Protection Class		IP65
