Differential Pressure Switch for Fluorinated Refrigerants

Name: Differential Pressure Switch for Fluorinated Refrigerants
Brand: all-electronics-online.com
SKU: 670474071
Availability: InStock
Rating: 4.9 (33 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-M2D-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contacts:	Normally Open
Application:	Industrial
Media:	Refrigerant, Air, Water, Oil
Media Temperature:	-10 C to 100 C
Connection:	M12X1.25, 7/16-20unf Other Connection Is Available
Type:	Electronic

Product Description

We are first class retailer, wholesaler, and exporter for Differential pressure switch PS-M2D-B in China since 2009. Quick response, fast delivery.
Introduction:

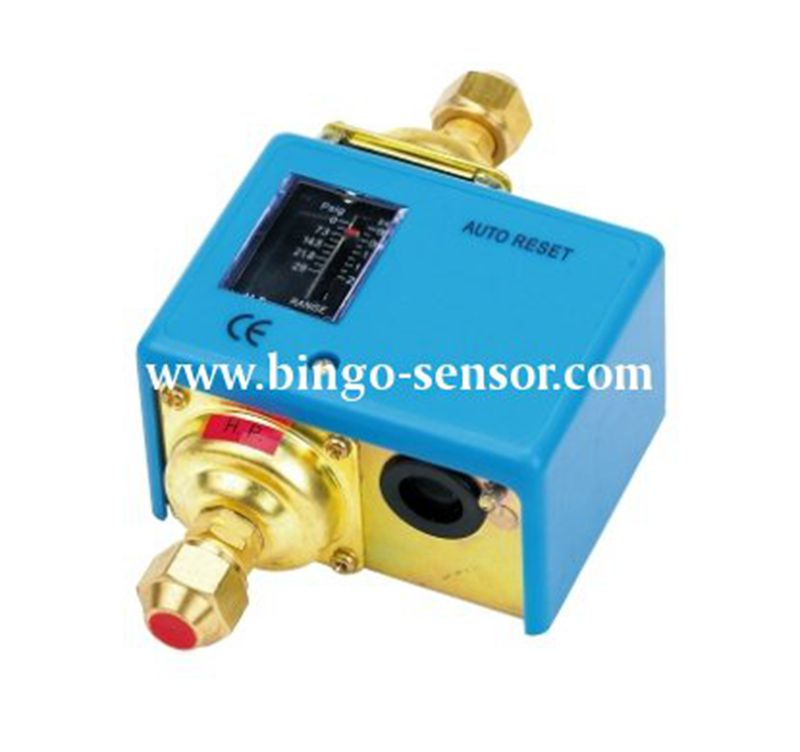

PS-M2D-B series differential pressure switch / pressure control, normally use in water, oil series control difference of the outlet tube and inlet tube. One typical application is, put valve install in the next to water (oil) system pumps by-pass valve line, when the pressure difference rise (or reduce) of two side of the systems tube exceed the setting data of the pressure control, so the valve open big (or close small), so the system tubes two sides pressure difference is reduce, to reach the system normal circulate.
PS-M2D-B series differential pressure controls two side have a high-sensitive parts each other, when the pressure of two side of the parts change, it will let switch institution action to control systems equipment, such as motor drives valve.
Technical Data:

Media	Refrigerant, Air, Water, Oil
Media Temperature	-10 C to 100 C
Connection	M12X1.25, 7/16-20UNF other connection is available on request
Contact Arrangement	SPDT
Electrical Rating:	Non-Inductive: 20A @125VAC, 10A@ 250 VAC
Electrical Rating:	Inductive: FLA: 15A @ 125VAC, 8A @250VAC LRA: 72A @ 125VAC, 64A @250VAC

Model	Differential Range (Bar)		Factory setting (Bar)	Max working pressure (Bar)
Model	Min.	Max.	Factory setting (Bar)	Max working pressure (Bar)
PS-M2D-B2	0.5	2	0.5	16.5
PS-M2D-B4	0.5	3.5	1	16.5
PS-M2D-B4H	0.5	3.5	1	33
PS-M2D-B6	1	6	1	16.5
PS-M2D-B6H	1	6	1	33
