| Prod Model: |
PT-DP003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Two Wire 4~20madc |
| Power: |
Supply Voltage 12.5~45VDC |
| Output Display: |
4 Digital Display,5 Digit LCD Display, Pointer Typ |
| Marking: |
Exiaii CT5 ;Explosion-Proof Isolation Type |
Product Description
Introduction

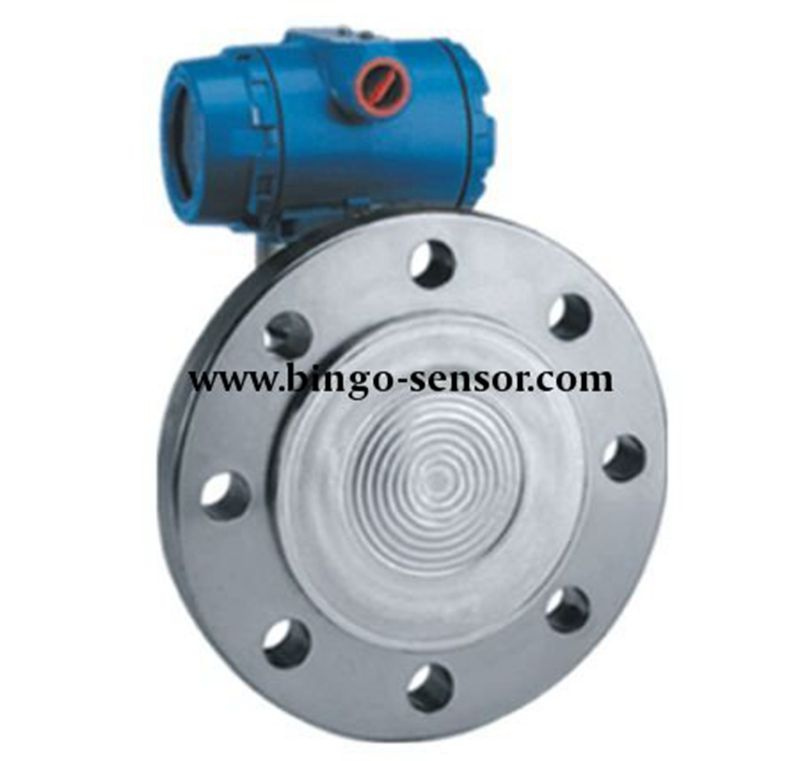

PT-DP003 capacitive differential pressure transmitter can precision measurement for liquid level and density of various containers. Transmitter is fixed to the container with pipe flange. Fit to measure medium of high temperature, high viscosity and easy to subside or strong corrosive. Membrane subassembly have plane and plug-in types. Flange size: 3inch and 4inch; Pressure grade: 50Ib and 300Ib. The membrane can select 316 stainless steel, Hastelloy or tantalum according to measure medium.
Technical Parameter
| Output | Analog output: two wire 4~20mADC Digital output: two wire 4~20mADC and variable digital signal in accordance with HART AGREEMENT. |
| Power | supply voltage 12.5~45VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage,see the below drawing. HART AGREEMENT require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Output display | 4 digital display,5 digit LCD display, pointer type. |
| Marking | ExiaII CT5 ;explosion-proof isolation type |
| Zero offset | can positive offset or negative offset,but can not overstep the utmost value |
| Temperature | environment temperature:-40~85ºC (When choose LCD : -20~70ºC ) Medium temperature: -40~104ºC |
| Static pressure and one side overload | 150Ib flange:3.45Kpa(absolute)~1.89MPa(37ºC )
300Ib flange:3.45Kpa(absolute)~4.9MPa(37ºC ) |
| Relative humidity | 5~98%RH |
| Startup time | less than 5 sec |
| Capability change | less than 0.16cm3 |
| Damp adjust | 0.20~25sec. |
| Malfunction alarming | If appear malfunction, automatism diagnose function will output 3.9 or 21.0mA |
| Protection | To avoid the datas are modified random,can utilize software or protect switch lock the memory data.
|
| Reference condition | zero is the lower limit and not offset, temperature 25ºC , Atmospheric pressure, 24VDC power, silicon oil , diaphragm 316L, data adjust range the same as the up and lower limit of the range |
| Accuracy | ±0.1%, adjust range ≥0.1URL ±[0.05+(0.005URL/span)]%, adjust range 0.025URL~0.1URL ±[0.01+(0.006URL/span)]%, adjust range 0.01URL~ 0.025URL Note: accuracy have include the influence of linearity,hysteresis and repeatability |
| Stability | ±0.1%URL/year |
| Tem. influence | ±(0.05%URL+0.15%span)/20ºC |
| Static pressure influence | zero error 0.1URL/6.9Mpa |
| Libration effect | withstand frequency 200Hz at any direction, arouse error ±0.05%URL |
| Power influence | 0.005%/V |
| Load influence | no load influence |
| Install position influence | about 250Pa zero offset, can be eliminate via calibration,no range influence |
| RF interference | drift is ±0.1%span in the condition of 30-1000MHz frequency and the most field intensity 10V/m |
