Differential Pressure Transmitters with 4 -20 Ma Output

Name: Differential Pressure Transmitters with 4 -20 Ma Output
Brand: all-electronics-online.com
SKU: 824284605
Availability: InStock
Rating: 4.9 (90 reviews)

Price:	US $ 120/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-86
Power:	12~36 (Standard 24VDC)
Body Material:	Stainless Steel
Temperature Compensation:	-20°c~75°c
Static Pressure Range:	0~3.5 MPa
Differential Pressure Range:	10~2500 Kpa

Product Description

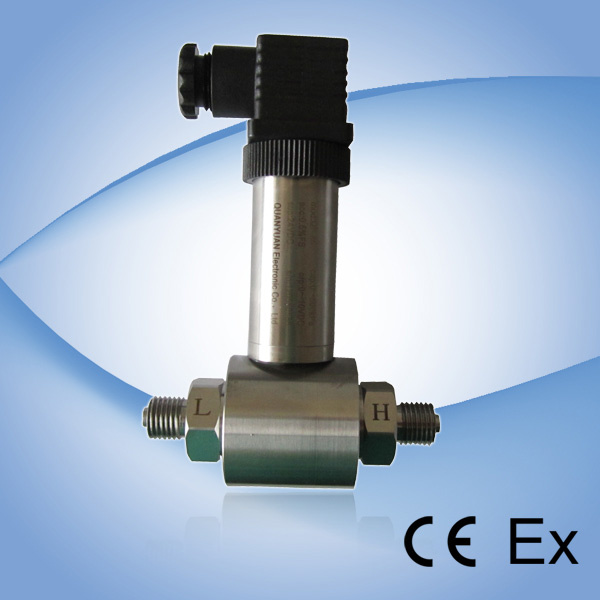

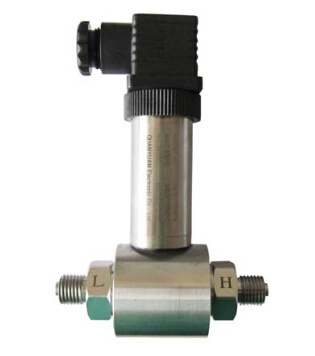

Differential Pressure Transmitters with 4 -20mA output

Model:QP-86
Differential pressure range:10~2500 KPa
Static Pressure range:0~3.5 MPa

Feature:
Measuring differential pressure
Small in size, light in weight,easy to install
Various output scheme:0/4~20mA, 0/1~5V, or0/1~10V
Have the characteristics of high precision, good stability, long working life and high reliability.
Suitable for measuring gases and liquids.

Sizes:

Technical specifications:

Model: Parameter:	differential pressure transmitters
Pressure Range:	5KPa~50KPa	51~100KPa		101~200KPa	201~500KPa		501~1000KPa	1~2MPa
High port overload:	5 Bar	10 Bar		15 Bar	21/30 Bar		25/40 Bar	40 Bar
Low port overload:	5 Bar	10 Bar		15 Bar	21/30 Bar		25/40 Bar	40 Bar
DP Safe overload:	150%F.S.
Limited Overload:	300%F.S.
Max Static Pressure	5 Bar to 40 Bar according DP pressure range
Accuracy: (Linearity Hysteresis Repeatability)	≤±0.5%F.S ≤ ±1.0%F.S Optional
Stability:	Standard: 0.1%F.S, Max:0.2%F.S
Working Temp:	-20°C~85°C
Medium compatible:	Compatible with 316L Stainless Steel
Electronic Wire:	2 Wires		3 Wires
Output:	4~20mA		0~5V			0~10 V
Power Supply:	9~36Vdc (24 V DC)		9~36Vdc (12 V DC)			12~36Vdc (24 V DC)
Load resistance:	(U-10)/0.02(Ω )		>100kΩ
Insulate resistance:	>100M Ω @100V
Electronic connection:	Fixed cable and water proof IP68 (HPT700-S); Terminal Box DIN43650 IP65 (HPT700-H,HPT700-G)
Pressure connect port:	1/4''-18NPT Female hose connection; G1/4'' Male; G1/2'' Male; RG=Ø8/ Ø 10gas mouth optional. (by Customized)
Response time:	≤10ms
Pressure Type:	Differential Pressure (Gauge pressure)

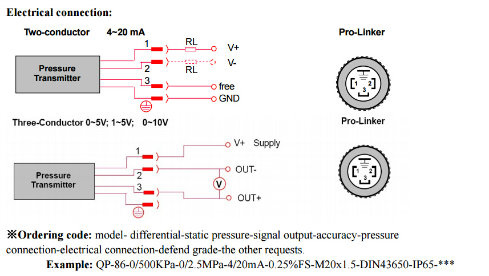

Electrincal Connections:

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
