Wenzhou Bingo Imp. & Exp. Co., Ltd. >> Diffused Silicon Pressure Transmitter with Display

Diffused Silicon Pressure Transmitter with Display

Diffused Silicon Pressure Transmitter with Display
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: PT-F003-H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: 12-30VDC
Connection Size: 1.5''clamp,2.5''clamp,Customized
Protection Grade: IP65

Product Description

Flush-diaphragm Pressure Transmitter for PT-F003-H
Feature
1) Advanced circuit processing technology,performance stability,high sensitivity
2) Range,zero external continuous adjustable
3) Configuration flexibility,depending on the need to choose a different configuration
4) No mechanical moving parts,less maintenance
5) Diaphragm isolation process
6) Effectively avoid viscous medium blockage

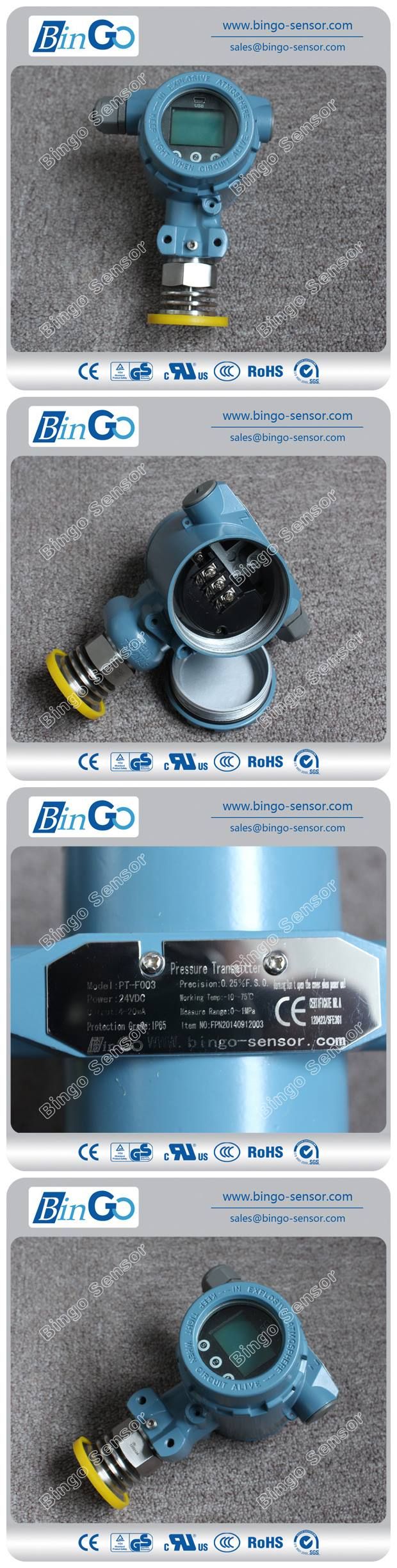

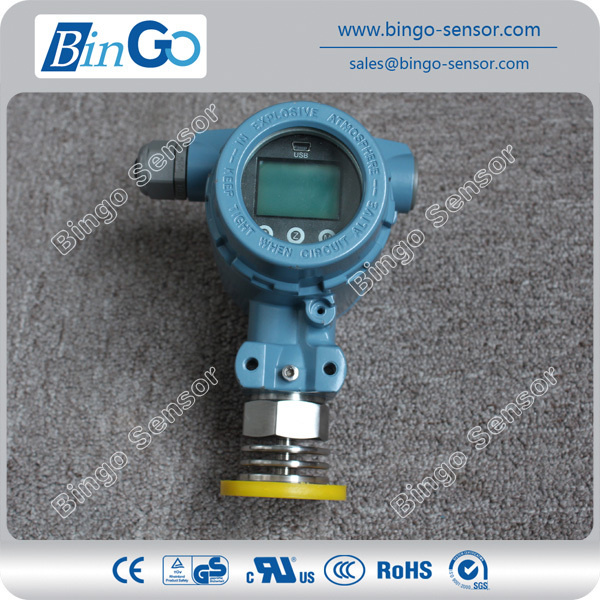

Product Show

Specification
                              PT-F003-H(diffuse silicon)
Mediumviscous fluid(medical,wine,milk,food field)
Pressure range-0.1~0~0.1...35Mpa
Accuracy0.1%F.S,0.2%F.S
Power supply12-30VDC
Working temperature-40~150ºC
Compensated temperature-10-70ºC
Signal output4~20mA,RS485,HART
Flush-diaphragm materialSS316L
Junction boxaluminum alloy,LCD display or without
Connection size1.5''clamp,2.5''clamp,customized
Protection gradeIP65

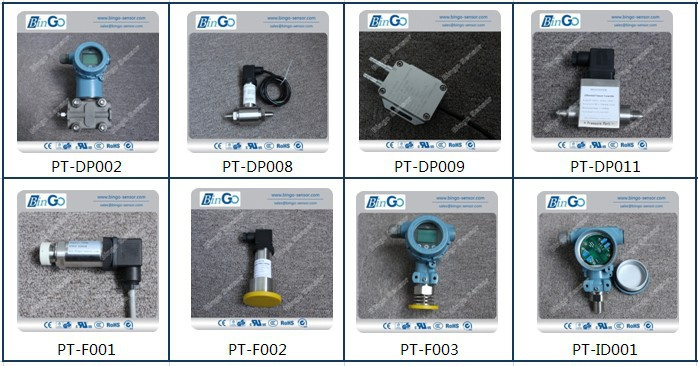

Other Type we can supply

About US

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
