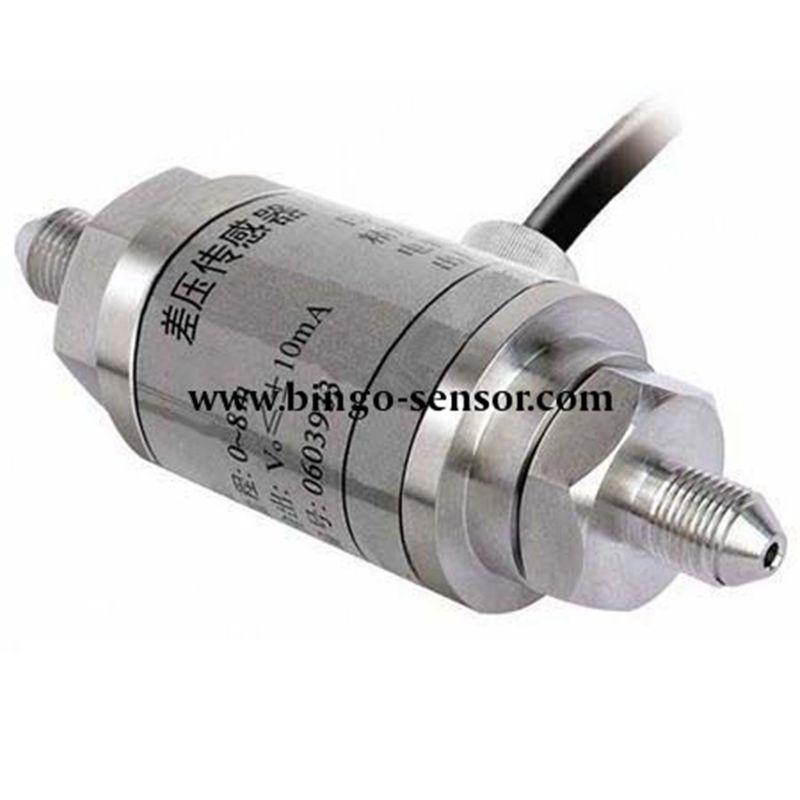

Digital Differential Pressure Transmitter for Steam

Name: Digital Differential Pressure Transmitter for Steam
Brand: all-electronics-online.com
SKU: 726083275
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-DP006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:	-100kpa^0~5MPa
Static Pressure:	2xf@S
Zero Output:	V 0 ≤±3mv
Repetition:	<±0.05%Fs

Product Description

Introduction
PT-DP006 series differential pressure transmitter is made use of advanced micro-machining technology, better accuracy, stability and strong impact resistance, the product has a high resistance to overload, better sensitivity and higher resolution, can measure positive and negative the symmetric differential pressure range, the best choice of the micro-differential pressure, flow field, flow velocity, flow measurement

Technical Parameter

Pressure range	-100KPa^^0~5MPa
Static pressure	2×F@S
Zero output	V 0 ≤±3mV
Full scale output	V FS =100mV±25%\V FS =50mV±30% \V FS =10mV±30%
Power supply	Constant current:1~4mA; Constant voltage:6~9VDC
linearity	<±0.1%FS
Repetition	<±0.05%FS
Delay	<±0.05%FS
Input impedance	0.6~6KΩ
Compensation temperature	-10ºC ~+70ºC
Working temperature	-40ºC ~+85ºC
Insulation resistance	>100MΩ/50V
Insulating strength	>500MΩ/500V
Pressure connection	M20×1.5\M12×1\internal thread
Electrical connection	Cable
Medium	Liquid compatible with 316 stainless steel
Protection Grade	IP65
Explosion-proof Grade	ExiallCT5
