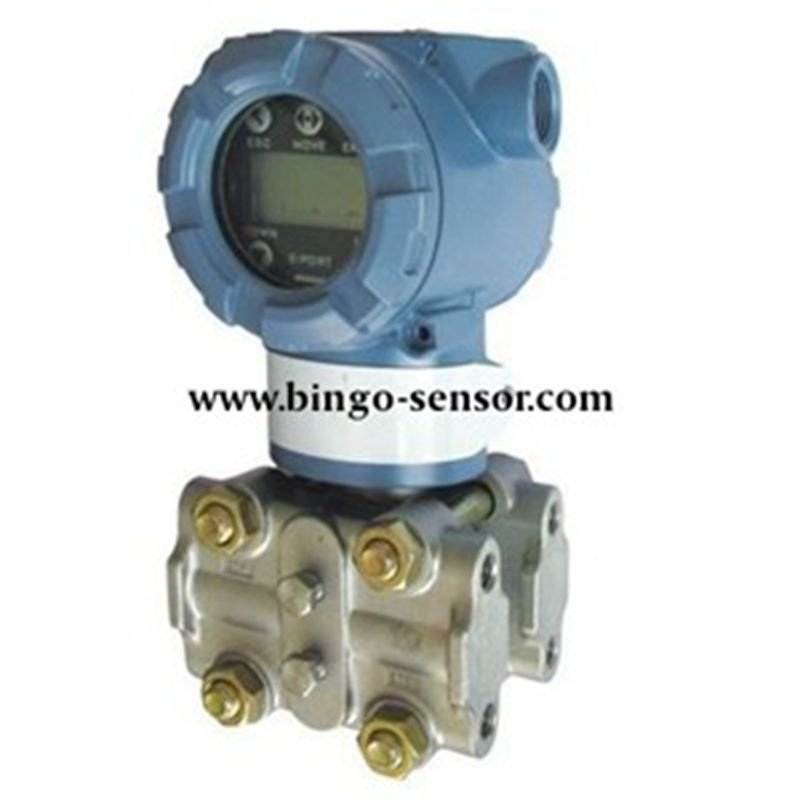

Digital Differential Pressure Transmitter / Pressure Transducer

Digital Differential Pressure Transmitter / Pressure Transducer
Price: US $ 1-11/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: PT-DP002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: Digital Output Two Wire 4~20madc
Power: Supply Voltage 12.5~45VDC
Limit Load: Not Less Than 250Ω,Not More Than 600Ω
Communication Distance: Max. 1.5km
Output Display: 4 Digital Display,5 Digit LCD Display, Pointer Typ
Marking: Exiaii CT5 ;Explosion-Proof Isolation Type

Product Description

Introduction

PT-DP002 Capacitive Different Pressure Transmitter adapt to measure the differential pressure of liquid, gases or flux.
Range codeRangeMeasure span
MinMax
40.374 KPa3704 KPa-37.4~37.4KPa
51.868 KPa186.8 KPa-186.8~186.8 KPa
66.9 KPa690 KPa-690~609 KPa
720.68 KPa2068 KPa-690~609 KPa

Technical Parametert
OutputAnalog output: two wire 4~20mADC
Digital output: two wire 4~20mADC and variable digital signal in accordance with HART AGREEMENT.
Powersupply voltage 12.5~45VDC
Limit loadMax load resistor Rmax in loop decided by the supply voltage,see the below drawing. HART AGREEMENT require the load resistor not less than 250Ω,not more than 600Ω
Communication distanceMax. 1.5Km, multi-address communication can connect 15 smart transmitters Max.
Output display4 digital display,5 digit LCD display, pointer type.
MarkingExiaII CT5 ;explosion-proof isolation type
Zero offsetcan positive offset or negative offset,but can not overstep the utmost value
Temperatureenvironment temperature:-40~85ºC
(When choose LCD : -20~70ºC   )
Medium temperature: -40~104ºC
Static pressure and
one side overload
3.45Kpa(Absolute)   31.2MPa(Gauge)
Relative humidity5~98%RH
Startup timeless than 5 sec
Capability changeless than 0.16cm3
Damp adjust0.20~25sec.
Malfunction alarmingIf appear malfunction, automatism diagnose function will output 3.9 or 21.0mA
ProtectionTo avoid the datas are modified random,can utilize software or protect switch lock the memory data.
