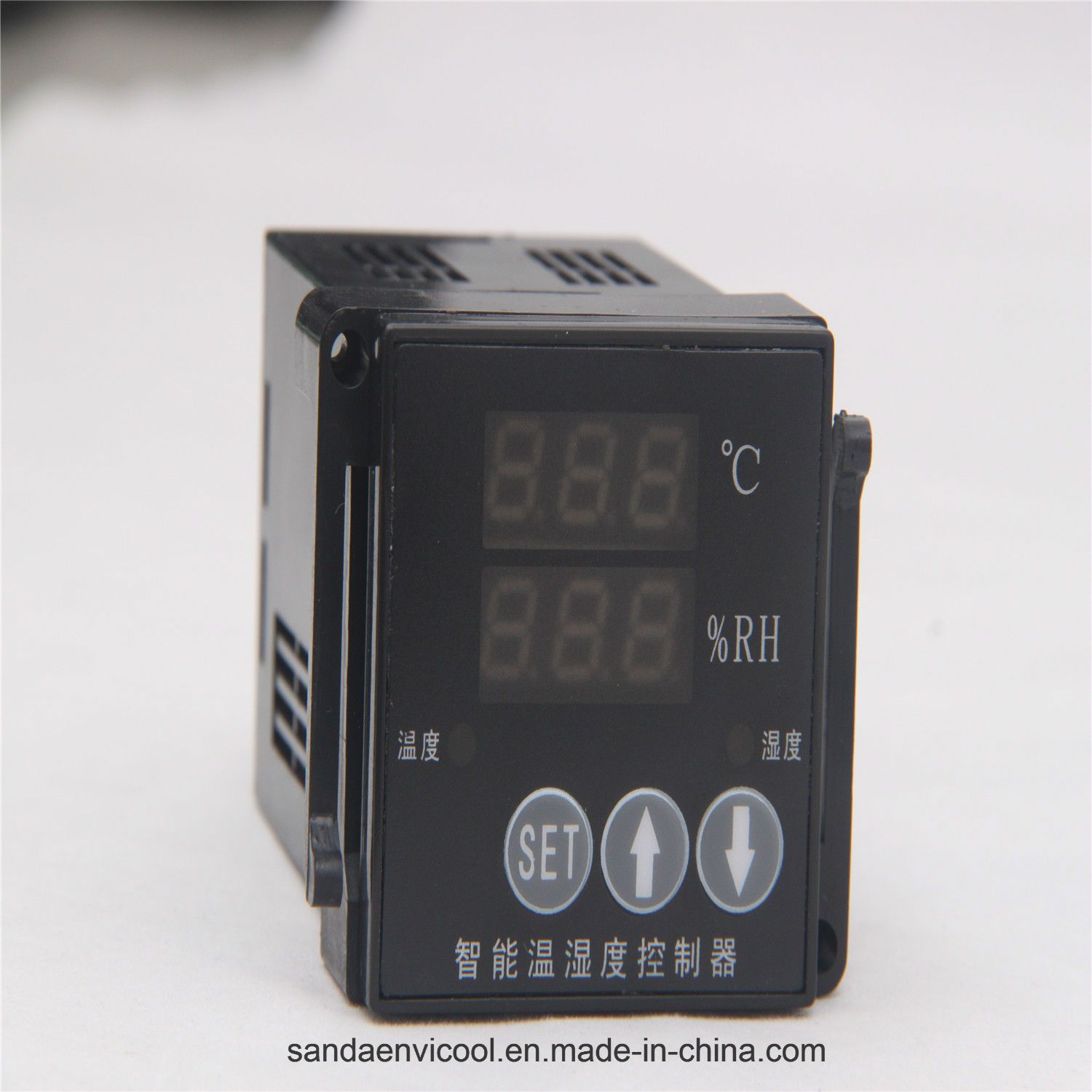

Digital Display Temperature and Humidity Controller
| Price: |
US $ 30.46/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SD-ZW9200 |
| Humidity Control Range: |
0-100%Rh |
| Temperature Control Range: |
-20-99degrees Celsius |
| Working Power: |
AC220V+/-20% |
| Installing Size: |
45X45mm |
Product Description
Factory direct supply, all goods can be customized.
OEM/ODM is available.
Overview
With one way temperature monitoring and one way the humidity monitoring. According to the change of environmental temperature automatic control load, and adjust temperature and humidity to normal. The function is heat up ,cool down, dehumidification, humidification and so on. Applicable to electric power high and low voltage switchgear, box-type substation, high-grade thermostatic chamber (box), vegetable greenhouses and other places where need to control the temperature and humidity.
Technical Requests
1)Humidity control range:0~100%RH,accuracy 3%,Resolution ratio:1RH%
2) Upper limit range:11-99%RH,Lower limit range:0~99%RH
3) Return difference set range:0-99oC(Can be set)
4) Temperature control range:-20oC~99oC,accuracy:0.5%,Resolution ratio:0.1oC
5) Upper limit range:,Lower limit range:-40oC~99oC
6) Return difference set range:0-99oC(Can be set)
7) Control Output:two-way relay active contact output
8) Temperature upper or lower, humidity upper and lower
9) Contact capacity:AC250V, 3A(resistance load) Max 5A
10) Working Power:AC220V±20%
Frame and installing sizeFrame size:48×48×78
Installing size:45×45 (Panel opening)

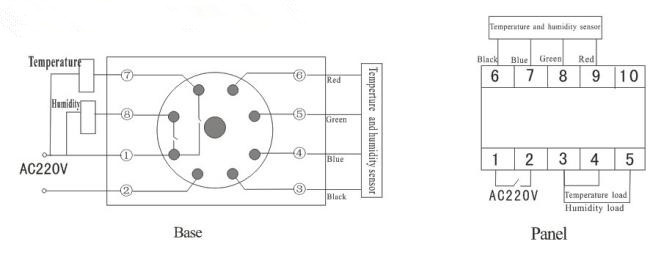

Wiring Diagram
Zhuzhou Sanda Electronic Manufacturing Co., Ltd is a high-tech enterprises who engaged in electrical power systems and industrial automation products.
Our company integrates development, design, production, sales and service as one of the operating entity. Our main products include: Digital meters, multi-function meters, electrical quantity transducer, intelligent dehumidifier, integrated protection relay system, intelligent back-end monitoring system, intelligent control device for switch cabinet, temperature and humidity controller, electric heater, motor protector, over-voltage protection device and microcomputer with associated products and so on.
Products have been widely used in metallurgy, petrochemical, electric power, construction, machinery, power plants, water conservancy, transportation and other fields, and our products reach a high reputation from our customers. We have a group of experienced & professional technical engineering staffs, with a high starting point, high technology, by constantly absorbing the latest international technology and design concept, and actively learn to market demand, to establish a long-term strategic partnership with customers. The company has always pursued the "quality is life, credibility is the guarantee, the user is God, " provide with professional, fast, excellent, safety and after-sales service.
The company has the leading testing and calibration equipment and the establishment of a modern management system. Perfect technology, strict production process, to ensure product quality and safety. The company has passed ISO9001 quality management system certification, the product passed the National Relay Protection and automation equipment quality supervision and inspection center testing, and obtain a certificate. The company also received a number of product patents, "Hunan famous trademark", "love enterprise" and other honorary titles.
Service innovation, the pursuit of excellence" is the purpose of Sanda, we will as in the past to adhere to the "people-oriented, positive enterprising, harmonious development" concept of talent, to provide "safe, accurate, high-quality" product demand for power transmission field demand, and make the greatest contribution to China's intelligent power distribution products manufacturing industry.
Corporate culture:
Goal: The global leading brands of smart grid equipment suppliers!
Mission: To make electricity safer and more intelligent!
Values: Employee happiness, customer appreciation, dedication to the community!
Five executive power: Absolute obedience, the courage to take responsibility, no excuse, act immediately, to create excellence.
Spirit: Integrity, tolerance, respect, pursuit, transcendence, innovation
Motto: To be as good as gold, to be perfect.
Product concept: Safety, accuracy, high quality.
Criteria: Strict implementation, strive for perfection.
Declaration: We are honest and trustworthy, harmonious and development; Diligence, sharing success; We forge ahead, to achieve the ideal; We are closely united, create brilliant; Our ability and customer satisfaction to achieve self value; We use a sincere attitude and effective action to return society.
Process quality
According to the "leading technology, strict selection and excellence" quality policy twelve words, solid backing to establish a sound scientific management system for quality assurance, strict implementation of ISO9001: 2008 quality management system, and through certification. The introduction of advanced inspection equipment, according to the national standards for the establishment of a comprehensive test of safety performance, to ensure that all the products have passed strict inspection to ensure that the product pass rate of 100%.
