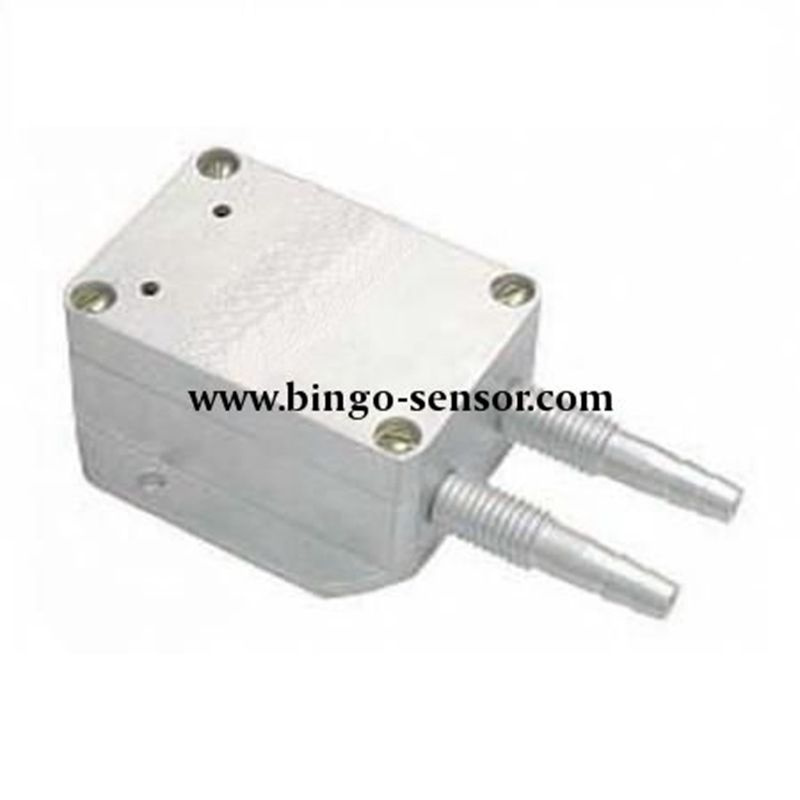

Digital High Pressure Differential Pressure Transmitter for Gas, Oil

Name: Digital High Pressure Differential Pressure Transmitter for Gas, Oil
Brand: all-electronics-online.com
SKU: 726083255
Availability: InStock
Rating: 4.4 (125 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-DP009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:	-100kpa^^0~1kpa^^100kpa
Static Pressure:	2×f@S
Zero Output:	3mv
Overload Capacity:	150%

Product Description

Introduction
PT-DP009-type wind differential pressure transmitter using silicon pressure transmitter assembled housing aluminum alloy structure. Two pressure ports with M10 thread, and can be installed directly in the instrument chassis or connected through the pressure tube. Choose products
Millivolts, standard voltage, current, frequency signal, to install and easy to use, widely used
In the field of wind pressure control of the boiler air supply, mine ventilation, electricity, coal industry.

Technical Parameter

Pressure range	-100KPa^^0~1KPa^^100KPa
Static pressure	2×F@S
Zero output	V0≤±3mV
Full scale output	VFS=100mV±25%\VFS=50mV±30% \VFS=10mV±30%
Overload capacity	150%
Power supply	Constant current:1~4mA; Constant voltage:6~9VDC
linearity	<±0.1%FS
Repetition	<±0.05%FS
Delay	<±0.05%FS
Input impedance	0.6~6KΩ
Compensation temperature	-10ºC ~+70ºC
Working temperature	-40ºC ~+85ºC
Insulation resistance	>100MΩ/50V
Insulating strength	>500MΩ/500V
Pressure connection	The pagodas head with M10 thread
Electrical connection	Cable or connectors
Medium	Liquid compatible with 316 stainless steel
Protection Grade	IP65
Explosion-proof Grade	ExiallCT5
