Digital Input Electronic Temperature Controller

Name: Digital Input Electronic Temperature Controller
Brand: all-electronics-online.com
SKU: 824649485
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STC-100A
Application:	Widely
Silk Print:	Available
Usage:	Refrigeration&HVAC
Sensor:	Ntc
Color:	Grey and Orange
Function1:	Deforst
Function2:	Compressor
Function3:	Fan
Product Size:	75mm34.5mm85mm
Hole Size:	71mm*29mm

Product Description

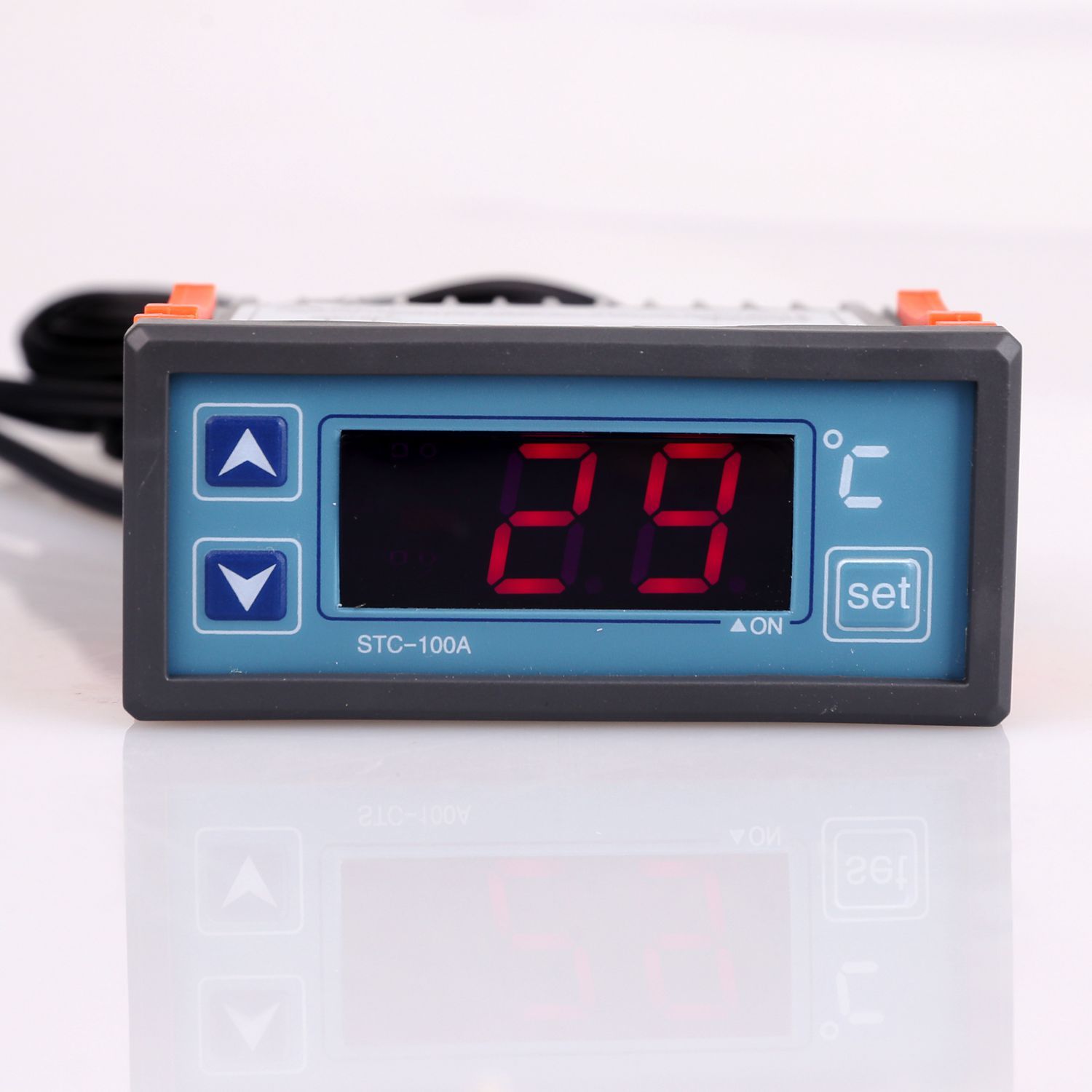

Digital input electronic temperature controller STC-100A

Feasures:
This product with functions of cooling and heating, alarm output mode conversion, temperature control adopts the return difference method, the user parameters and managers set respectively, and a compressor delay is adjustable, temperature after correction, fault alarm, sensor fault compressor according to the preset program operation, etc. Is a good versatility, high cost performance, applies to refrigerated, seafood machine, water heater and other places of equipment and simple control gentle alarm products.

Specifications:

The mounting holes size	70.5 x 28.5 ( mm)
The running environment temperature	-5 ºC ~ 60 ºC
The storage temperature	-30ºC ~ 85 ºC
The relative humidity	20% ~ 85%
The power supply voltage	220 VAC ±10% (12 V ±10% optional)
Power consumption	≤5 W
Temperature measurement range	-50 ºC ~ 99 ºC
Relay contacts capacity	10 A / 250 VAC

Company Information:

For over 50 years, XUZHOU SANGE AUTOMATIC CONTROL EQUIPMENT CO.,LTD has specialized in designing and manufacturing temperature controllers, temperature control systems, and temperature sensors. We sell a standard line of products as well as provide custom design services. All of our products are developed and designed at our state-of-the-art manufacturing facility inXuzou, Jiangsu, China.

Shipping terms:
1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:15-25days(Depends on the Qty) after advanced payment received

QC:
All digital thermometer must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed

We can create a custom product specifically for you.

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd

Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration

Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.

Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.

Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.

We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
