Digital MCU 3 Phase Automatic Voltage Compensated Regulator (SBW-10kVA)

Name: Digital MCU 3 Phase Automatic Voltage Compensated Regulator (SBW-10kVA)
Brand: all-electronics-online.com
SKU: 703013302
Availability: InStock
Rating: 4.9 (106 reviews)

Price:	US $ 850/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-10kVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 6-60kVA:	Output Voltage: 380V/400V
Frequency: 50Hz/60Hz:	Response Time: <0.5
Effeiciency: >96%:	Phase :3phase
Waveform Distortion: <1%:	Ambient Temp: -10c~+40c
Relative Humidity: <90%:	Industry Power Voltage:2000V/60s
Current Type:	AC
Phase:	Three Phase
Usage:	SVC
Frequency:	High Frequency
Frequency Characteristics:	50Hz/60Hz
Brand:	Kewang

Product Description

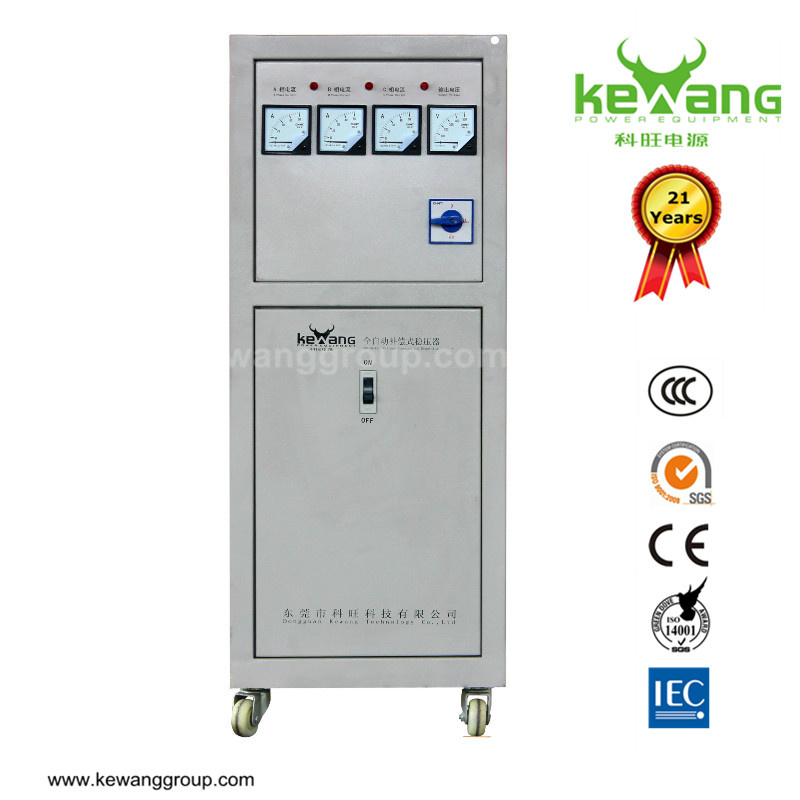

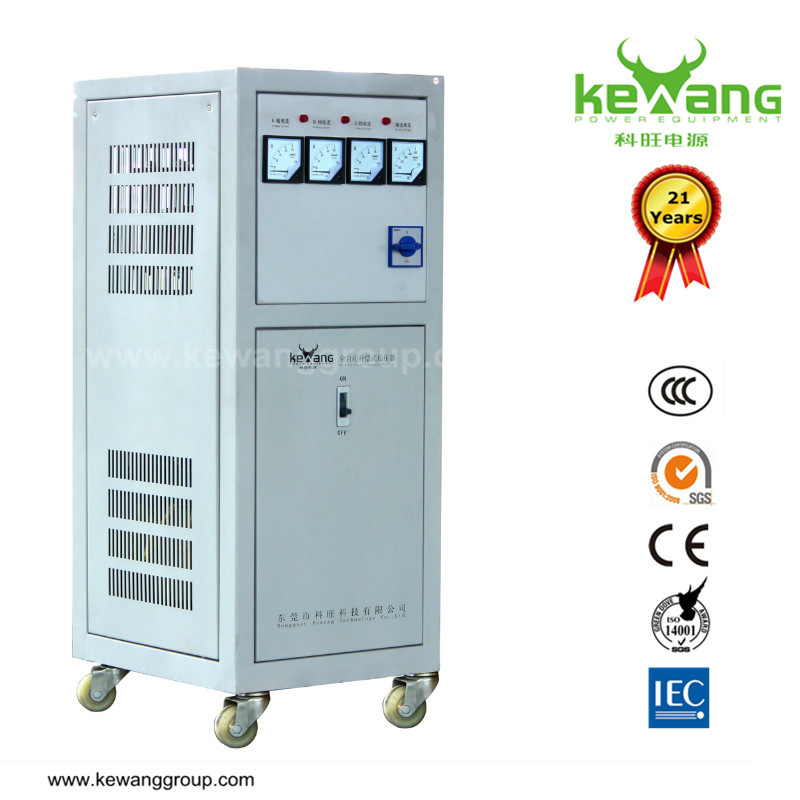

Digital MCU 3 Phase Automatic Voltage Compensated Regulator (SBW-10kVA)

Working principle
Advanced technology of voltage compensation adopted,Automatic voltage compensated regulator series samplings its output voltage via control system according to preset voltage precision to stabilize output voltage;

Application
Apply to varied precision machines and instruments, test equipments electric equipments, lightings, prodution lines, schools,hotels,hospitals,railwaws, science R&D institutions, and so on.

Main features
Large capacity;
High efficiency;
Infinitely variable voltage regulation;
No additional waveform distortion;
Simple operation;

PARAMETERS

Input voltage	Three-phase 323-437V		Single phase 187-253V
Output voltage	Three-phase 380V		Single phase 220V
Voltage precision	±2~5
Efficiency	>=96%
Response Time	<=0.5S
Frequency	50Hz/60Hz
Waveform Distortion	<1%
Ambient Temp	(-10ºC~+40ºC)
Relative Humidity	<90%
Dielectric Strength	2000VMin	1500V Min
Insulation Resistance	>5ΜΩ

SPECIFICATION(ONLY FOR REFERENCE)

Model	Capacity(KVA)	Phase	Dimension(W×D×H)mm	N.W(kg)	Cabinet
SBW-6	6	3	430×480×760	48	1
SBW-10	10	3	430×480×760	65	1
SBW-15	15	3	430×570×760	75	1
SBW-20	20	3	450×500×1100	130	1
SBW-30	30	3	450×500×1100	150	1
SBW-45	45	3	450×550×1260	163	1
SBW-60	60	3	450×550×1260	192	1
DBW-3	3	1			1
DBW-5	5	1			1
DBW-10	10	1			1
DBW-15	15	1			1
DBW-20	20	1			1
DBW-30	30	1			1

BRIEF VIEW OF KEWANG GROUP

Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.

As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.

Product line:

1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.

2. RlS Series Contactless Intelligent type Voltage Stabilizer

3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery

4. DBW/SBW Dry type Voltage Regulator

5. SE series Air-cooled Transformer

6. UPS

7. Generator Set
