Digital Microprocessor- Based Overcurrent Relay Provides Nondirectional Phase to Phase and Phase to Ground Overcurrent Protection
| Price: |
US $ 115-130/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SD2200 |
| Product Name: |
High-Speed Instantaneous Overcurrent Fault Detecto |
| Temperature: |
-5ºC to +55ºC |
| Humidity: |
56 Days at 93% Rh and 40ºC Non-Condensing |
| Mounting: |
Panel Mounting |
| Enclosure Protection: |
IP54 at The Panel |
| Approximate Weight: |
0.8 Kg |
| Rated Voltage: |
250V AC / DC |
| Contact Rating: |
5 a |
| Certifications: |
ISO9001 |
| Function: |
Overcurrent and Earth Fault Relay |
Product Description
Digital microprocessor- based overcurrent relay provides nondirectional phase to phase and phase to ground overcurrent protection
Product Description

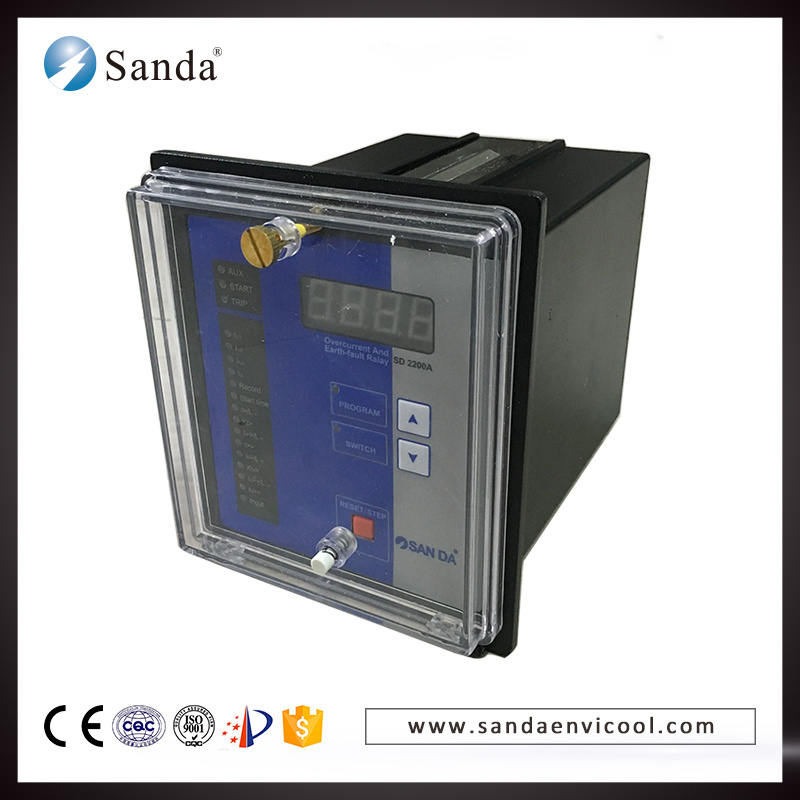

SANDA's SD2200 combined overcurrent and earth-fault relay is a digital microprocessor based relay. This relay employs extensive advance numerical technique simple mented in real-time, for the computation of measured input quantity. Other advance features include programmable control output, metering and fault data recording.
Overcurrent protection Functions:
1 Phase Overcurrent Protection
2 Earth-Fault Protection
3 Low-set Characteristic Curves
4 High-set Characteristic
5 External Binary Input
6 Relay Output
7 Configuration
8 Metering and Fault Record
Overcurrent protection Features:
• Multifunction numerical relay
• Three-phase, low-set and high-set phase overcurrent
• Two sets of low-set and high-set setting for phase overcurrent
• Low-set and high-set earth fault
• Two sets of low-set and high-set setting for earth fault

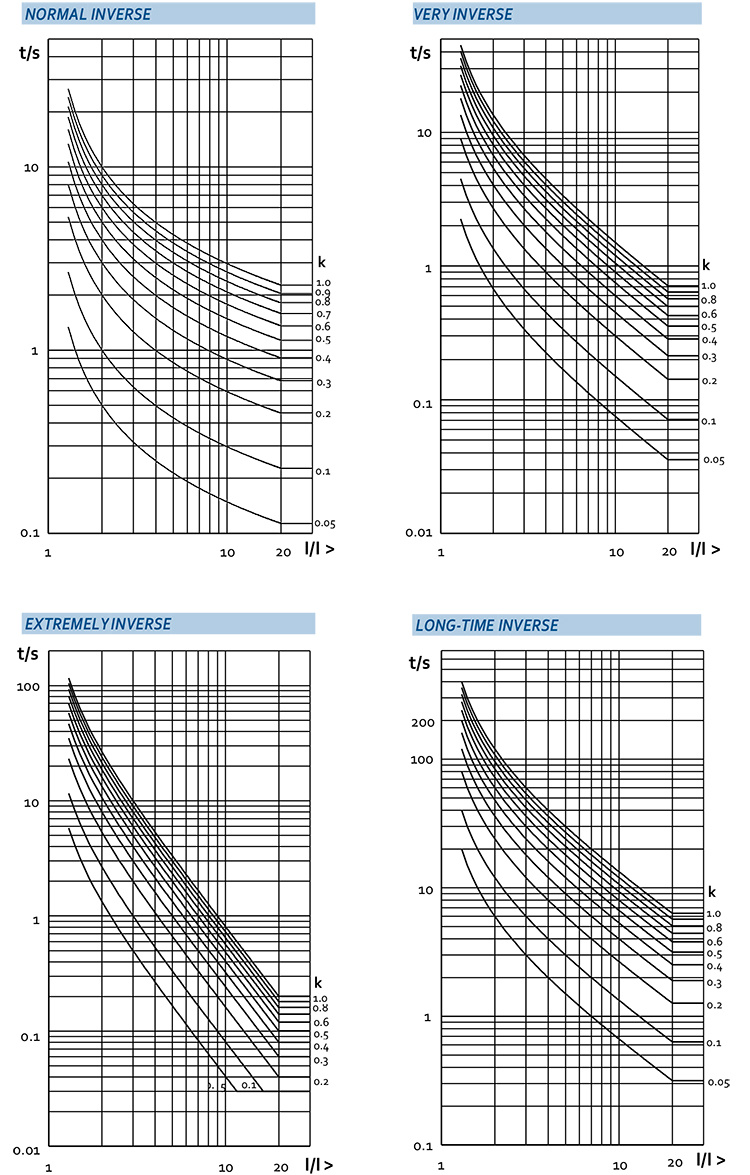

• Four selectable IDMT characteristic curves
• Definite time for low-set and high-set
• Numeric display of phase and earth fault currents
• Display of relay settings
• 9 non- volatile records of previous tripping currents
• Recording of relay start time
• Highly flexible programmable relay outputs
• Multifunction external digital input
• Isolated RS485 Modbus -RTU communication
• Selectable 50 Hz / 60 Hz
Overcurrent protection Benefits:
- Programmable relay outputs provide a high degree of flexibility
- Definite time for low-set and high-set
- Digital display for ease of use
- Robust casing protects the unit from external interference
- Complies with IEC 60255-26 standards
Overcurrent protection Applications:

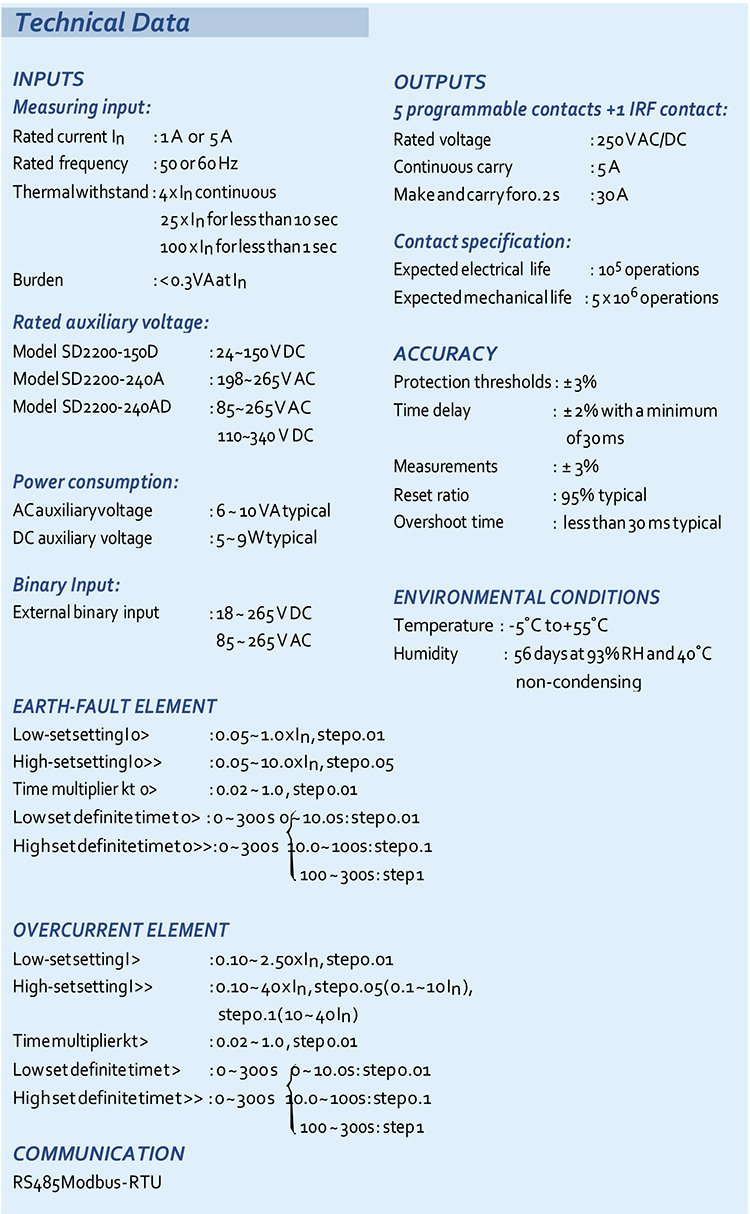

Overcurrent protection Technical Data:
