Digital Multi Channel Temperature Controller

Prod Model:	STC-1000
Application:	Widely
Silk Print:	Available
Usage:	Refrigeration&HVAC
Sensor:	Ntc
Color:	Grey and Orange
Function1:	Deforst
Function2:	Compressor
Function3:	Fan
Product Size:	75mm*34.5mm*85mm
Hole Size:	71mm*29mm

Product Description

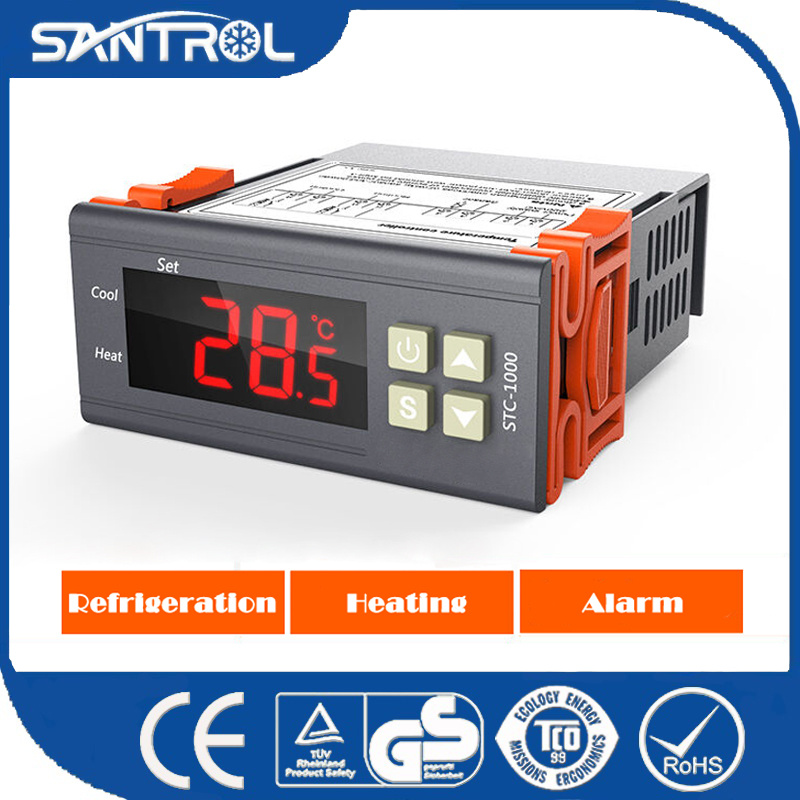

Digital multi channel temperature controller STC-1000

Product features:
1.Switch the modes between cool and heat.
2.Control temperature by setting the temperature setting value and the difference value.
3.Temperature calibration.
4.Refrigeration control output delay protection.
5.Alarm when temperature exceeds temperature limit or when sensor error.

Technical parameter:
1.Temperature measurement range:-50ºC~+99ºC
2.Operating ambient temperature:0ºC~+60ºC
3.Stored temperature:-30ºC~+75ºC
4.Relative humidity:20%~85%(No condensate)
5.Power supply:220VAC±10%,50/60Hz
6.Power consumption:<3W
7.Resolution:1
8.Accuracy:±1ºC
9.Relay contact capacity:Cool(10A/250VAC);Heat(10A/250VAC)
10.Sensor:NTC sensor(1PC)
11.Sensor error delay:1 minute

Installation size:

1.Product size:75.0×34.5×85.0(mm)
2.Front panel size:75.0×34.5(mm)
3.Mounting size:71.0×29.0(mm)


Model number	STC-1000
Product name	refrigerator thermostat price
Type	digital refrigerator thermostat
Temperature range	-50°C~99 °C
Installing Size	71*29  mm
Packing	59X21X41 CM  Carton
Usage	refrigerator, air condition, water heater,cooked food display

Company Information:

For over 50 years, XUZHOU SANGE AUTOMATIC CONTROL EQUIPMENT CO.,LTD has specialized in designing and manufacturing temperature controllers, temperature control systems, and temperature sensors. We sell a standard line of products as well as provide custom design services. All of our products are developed and designed at our state-of-the-art manufacturing facility inXuzou, Jiangsu, China.




Shipping terms:
1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:15-25days(Depends on the Qty) after advanced payment received

QC:
All digital thermometer must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed

We can create a custom product specifically for you.
