| Prod Model: |
Combos cable 2xRG6+2xcat6 (bundle cable RG6+cat6) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Multimedia Connection for Smart Home |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Rg11 Messenger Cable |
Product Description

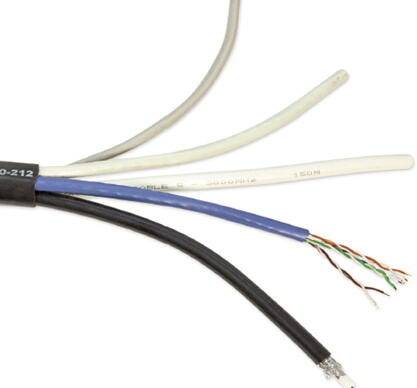

Composite coaxial cables and LAN cables in one single outer Jacket.
Easily convennient to installation.
High quality 2 standard/Tri/Quad shield RG6 coaxial cable with 2 LAN cables CAT5e.
Apply for multi use in CATV & LAN network system, high performance, easy for installation, quality warranty.
CAT 5e Construction:
1. Construction:
Conductor: Solid bare copper / AWG 23
Conductor Dia(mm): 0.574
Insulation: PE
Average thickness ( +/-0.03mm): 0.25mm
Min point thickness: 0.22mm
Insulation Dia ( +/-0.03mm): 1.00mm
Jacket: PVC or LSZH
Average thickness: 0.5
Min point thickness: 0.46
Outer Dia( +/-1.0mm) 6.3
Rip cord: YES
Core color:
Pair 1: Blue - white/blue
Pair 2: Orange - white/orange
Pair 3: Green - white/orange
Pair 4: Brown - white/brown
2. Electrical Performance (At 100MHz)
1.0-100.0MHz Impendance(ohms) 100+/-15
1.0-100.0MHz Impendance delay screw(ns/100m) <45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max
Conductor DC resistance 20%(ohms/km) <93.8
Resistance Unbalance(%): 5
Spark Test 850 V AC
Dielectric Strength 2500 V DC / 3 seconds
Insulation Resistance Test Min. 150 MΩ /Km
Conductor Resistance Max. 9.38Ω /100m at 20
Resistance Unbalance Max. 5%
Capacitance Unbalance Max. 330 pF/100m
Mutual Capacitance Max. 5600 pF/100m
RG6 coaxial cable
1) Construction
Center Conductor: 1.02+0.01mm Solid Copper/Copper Clad Steel
Dielectric: 4.57+/-0.05mm Foam PE
Shield: Optional Bonded or unbonded Aluminum Foil or double Aluminum foil
Braid Coverage: 40 - 95% Al-Mg or copper or CCA wires
Jacket: 6.9+0.05mm PVC
Jelly/APD: Per Customers' Special Requirement
2) Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)
3) Composite available
1.2*RG6+2*CAT5e UTP or CAT6
2.2*RG6 TRI shield + 2*CAT5e UTP or CAT6
3.2*RG6 quad shield + 2*CAT5e UTP or CAT6
4.4*RG6 (different color, can be in standard shield, Tri shield or Quad super Shield)
5.5 Cat5e UTP...
More option available upon your requirements.
3. Package: 500ft, 1000ft wooden drum, and then pallet.
|
Attenuation |
[@68 o F. (20 o C. )] |
|
Frequency (MHz) |
Maximum (dB/100 ft. ) |
Maximum (dB/100 m) |
|
5 |
0.58 |
1.9 |
|
50 |
1.5 |
4.9 |
|
100 |
2.0 |
6.5 |
|
200 |
2.8 |
9.2 |
|
400 |
4.1 |
13.6 |
|
700 |
5.6 |
18.4 |
|
900 |
6.2 |
20.3 |
|
1000 |
6.5 |
21.4 |
|
1450 |
8.0 |
26.2 |
|
1800 |
8.5 |
27.9 |
|
2100 |
9.5 |
31.1 |
|
2250 |
10.0 |
34.0 |
|
3000 |
11.4 |
37.5 |
