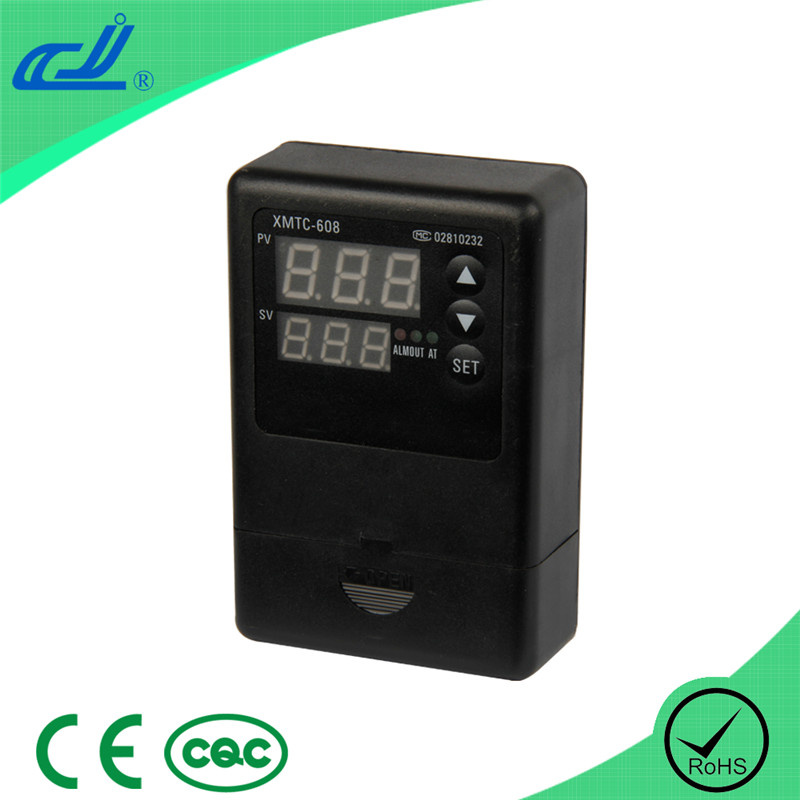

Digital Pid Temperature Controller with Wall-Mounted Installation (XMTC-608)

Prod Model:	XMTC-608

Product Description

XMT*608 series intelligent temperature controller, is double row 3-LED display and include on/off, PID

control, including with parameter of self-setting function. This temperature meter respectively display

temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is

time temperature control, respectively display temperature measurement value (PV) and running time

count down (SV), and also provide kinds of time control method selection; The controller can input kinds

of signal which are used interchangeably, it adopt ON/OFFP=0PID control, allowing an easy parameter

setting and convenient inputting, is widely used over temperature automatic control systems of

machinerychemicalceramicslight industrialmetallurgypetrifaction and heat treatment and so on.


Main technical Indexes

1 Measurement deviation± 0.5F· S± 1, additional cold end compensating deviation± 1

2 Input(can be selected)CU50(-50150)PT100-80600K-30999E-30700

J-30900T199400

3 Relay output (passive) contact capacity AC250V 5A(resistance load)

Period 2120s can be adjusted.

4 Time range0999s or 0999mcan be selected

5 Driving solid relay signal outputDriving electric current 15mA no-load voltage12V, period is about 2S.

6 Work power85V242V, 50HZ Power consumption3W

7 Work environment050, relative humidity≤ 85, without corrode and strong electric radiation.

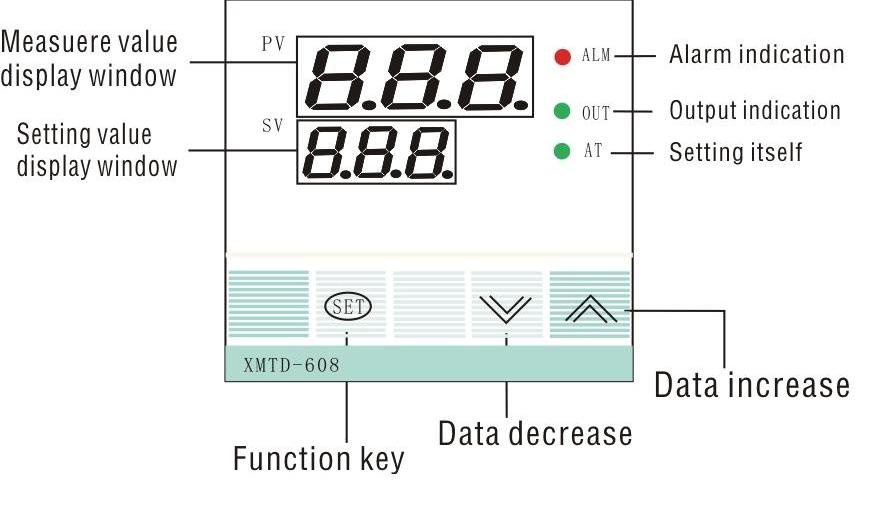

Instrument panel and connection scheme

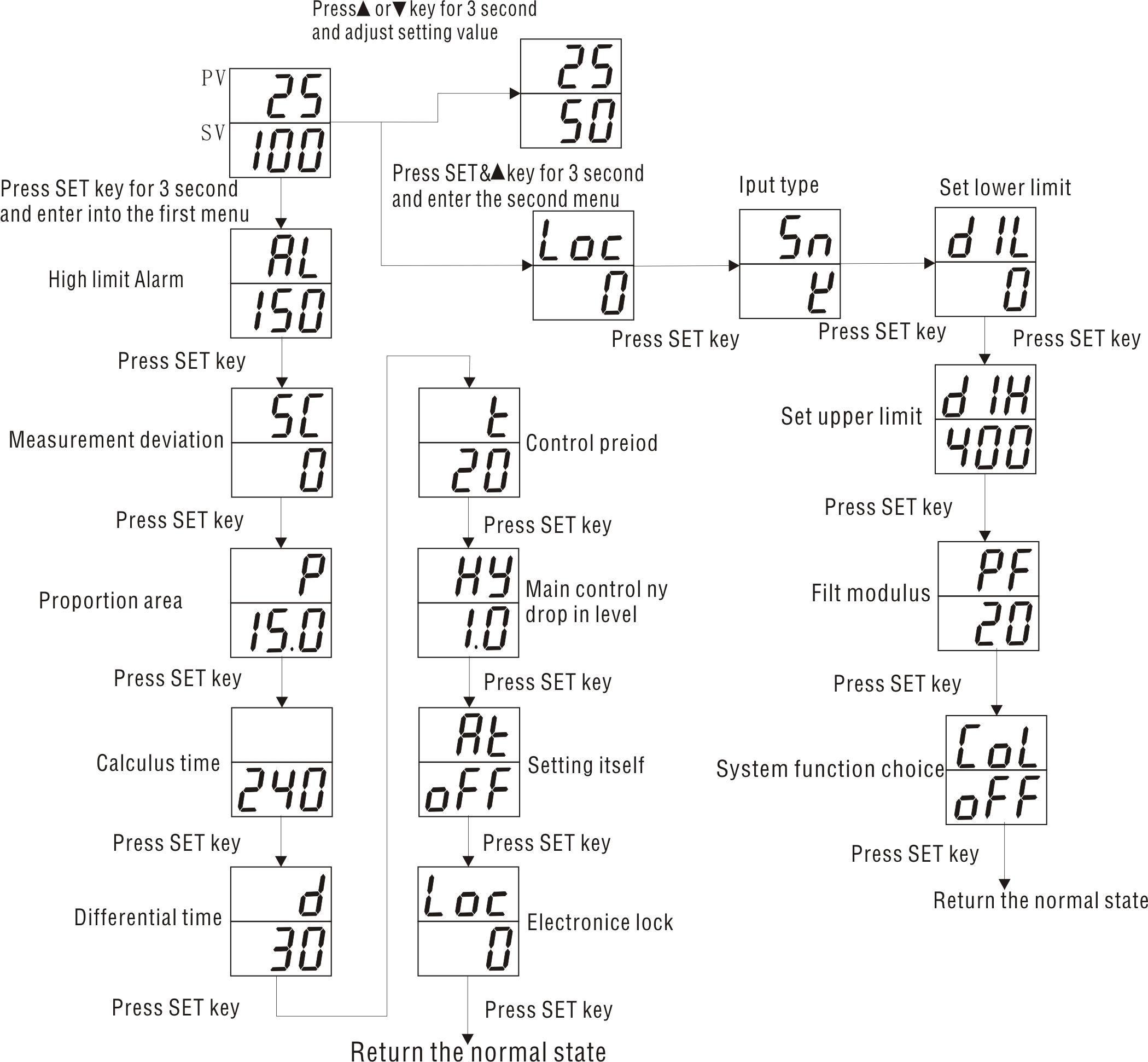

 Flow chart
