Digital Pressure Gauge for Gas and Liquids

Name: Digital Pressure Gauge for Gas and Liquids
Brand: all-electronics-online.com
SKU: 817059025
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	US $ 75/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QZP-S9
Battery:	9V
Accuracy:	0.25%Fs
Operating Temperature:	-1~+49 ºC(30~120f)
Case Material:	ABS
Wetted Parts:	316lss
Measuring Compatible:	All Corrosive Medium Compatible with 316lss
Measuring Medium:	Gas and Liquid

Product Description

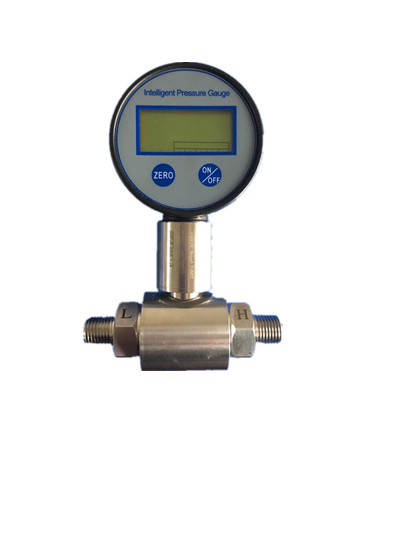

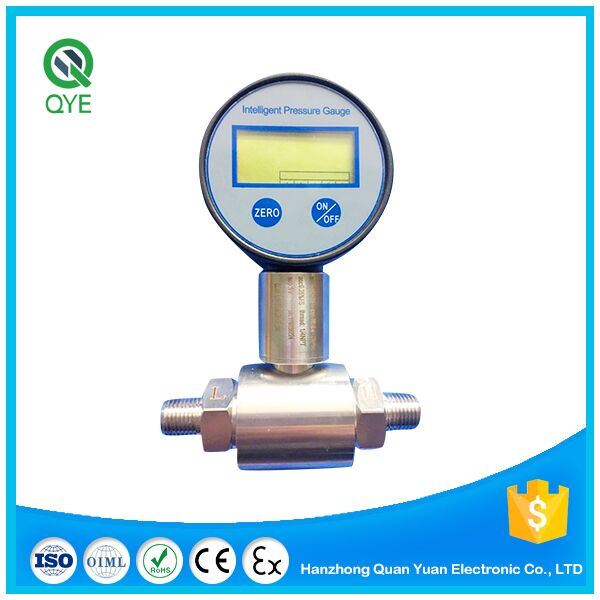

The QZP-S9 is a "ture" medium isolated,wet/wet differential digital pressure Gauge designed to measure corrosive gases and liquids.it offers the accuracy of a solid state sensor that results from its proprietary ASIC design. Its solid state construction incorporates a micro-machined silicon pressure sensor(MEMS) and has no moving parts,ensuring a long life .Pressure is transferred from stainless steel diaphragms to the sensor through silicone oil.
The large LCD digital display, 18mm(0.71'') high ,eliminates the guesswork that occurs when taking readings with an analog dial gauge.Zeroing the display on the BPZ2006 is done with the push of a button.
The auto-off function will display the pressure readings for 1-15 minutes(optional) before the unit automatically shuts off,prolonging battery life.

Feature:
Large 4-digit LCD display 18mm(0.71'') high
0.25%FS full scale accuracy
9V battery included
User-selectable 0 or 15 minute auto-off
User-selectable engineering units: psi, bar,kg/cm2,or kPa
User-selectable peak and hold or continuous reading
Compatible with dry, non-corrosive gases

Technical Specifications

Measuring compatible	All corrosive medium compatible with 316LSS
Pressure range	5,15,30,100,300,500psi
Accuracy	0.25%FS
Operating temp.	-1~+49 ºC(30~120F)
Proof pressure	200%FS
Brust pressure	300%FS
Pressure connection	1/4-18NPTM
Battery	9V
Battery life	2 years in power-saving mode

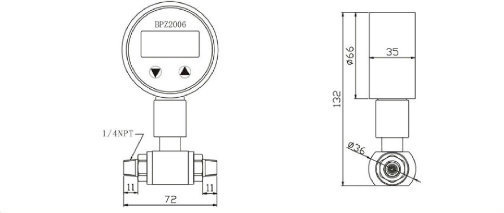

Case dimension	67D×116mmH
Case material	ABS
Wetted parts	316LSS
Over static pressure ≤5X rated range or 4MPa(whichever is lower)

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
