Digital Pressure Sensor with Displayer (BST-104)

Name: Digital Pressure Sensor with Displayer (BST-104)
Brand: all-electronics-online.com
SKU: 823327285
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BST-104

Product Description

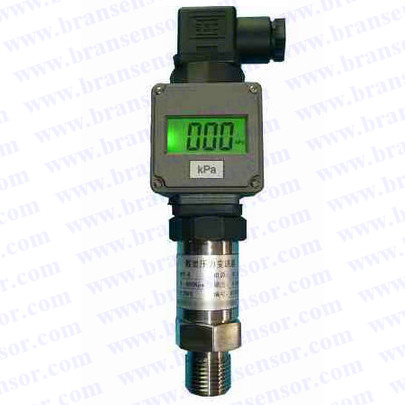

1.    Product Name: Digital pressure sensor with displayer (BST-104)
2.       Model: BST104
3.       Material: Stainless Steel
4.       Cpacity: -0.1~0~1~150(MPa)

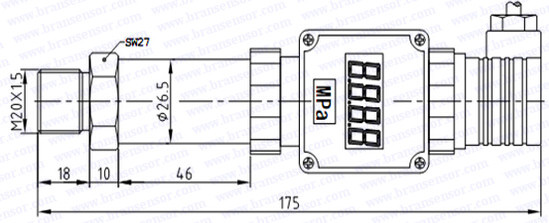

5.       Size: M20×Φ26.5×175mm
6.       Design:

7.       Main Features
(1)     Fully Welded Stainless Steel Housing
(2)     No Oil Fill, Welds, or Internal O-rings
(3)     Wide Operating Temperature
(4)     Compatible with Liquids and Gases
(5)     Rugged, Compact Design
(6)     Pressures up to 10,000 PSI
(7)     High Shock and Vibration

8. Technical Datasheet

	Specifications	Technique
	Capacity	-0.1~0~1~150(Mpa)
	2wires	4~20mA
	3wires	0~5V,1~5V,0~10V
	Comprehensive accuracy	0.25%FS,0.5%FS
	Display	LED Display, 0000-1999
	Power supply	24VDC(9~36VDC )
	Medium temperature	-20ºC~85ºC~105ºC (Option)
	Ambient temperature	-20ºC~85ºC
	Load resistance	Voltage type≥50kΩ Current type≤800kΩ
	Insulation	≥2000MΩ/100VDC
	Respone time	<1ms
	IP Class	IP65
	Long term stalibity	0.1%F.S./Year
	Vibration effects	20~1000HZ<0.1% F.S. Impact is less than 0.1% F.S.
	Electrical interface	Hirschmann connectors
	Thead connection	M20×1.5, M14×1.5 /customized
	Outline size	M20×Φ26.5×85mm
	Material	Stainless Steel

9.Applications:

Industrial OEM Equipment
Hydraulic Systems
HVAC Equipment
Refrigeration Equipment
Automotive
Energy / Water Management
Test Stands
Off-Road / Construction Equipment
Railways (Braking, Compressor & Engine Control

The new compact BST104 pressure transmitter is ideal for monitoring pressure in hydraulics and pneumatics applications as well as inert gases where mounting space is limited. These pressure sensors feature a thin film measuring cell which is welded directly to the process connection. No separate seal is required. This innovative design technology guarantees high accuracy in a compact housing. Constructed of stainless steel, the robust pressure sensors are designed to withstand extreme shock and vibration in harsh environments. The one-piece, completely welded housing eliminates moisture ingress and is rated IP 67 / IP 69K. The transmitter provides an analog output at an exceptional fast response time of 1 millisecond and reliable repeatability of < 0.05 %. Through innovative design technology, features that ensure reliability.

In this catalog, you could find pressure transducers/transmitters of liquid and gas; Flow meters; displacement sensors; Temperature sensors; Liquid Level Sensor/Meters.
If you need any special requirements, we could make it as customized according to your design.
