Digital Rkc Pid Temperature Controller Thermostat (REX-C400)

Name: Digital Rkc Pid Temperature Controller Thermostat (REX-C400)
Brand: all-electronics-online.com
SKU: 816235945
Availability: InStock
Rating: 4.8 (144 reviews)

Price:	US $ 6-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	REX-C400
Power Supply:	AC85-AC265V 50/60 Hz
Operating Voltage:	220V
Current:	5A
Input Specification:	K,E,J,PT100
Accuracy:	0.5 Class

Product Description

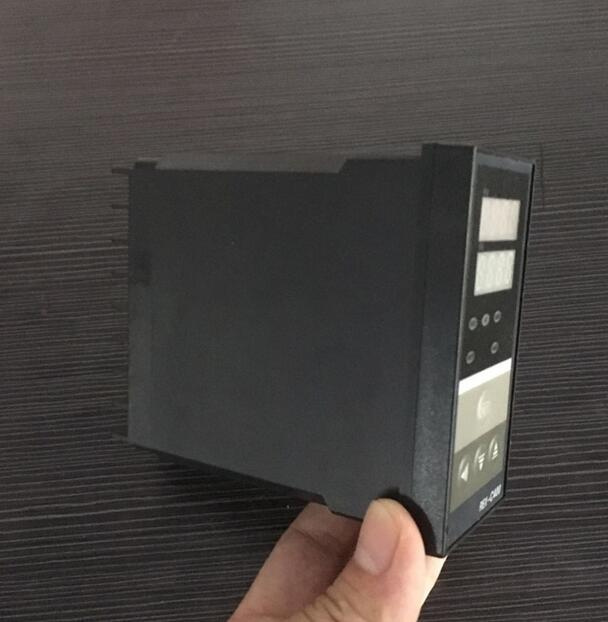

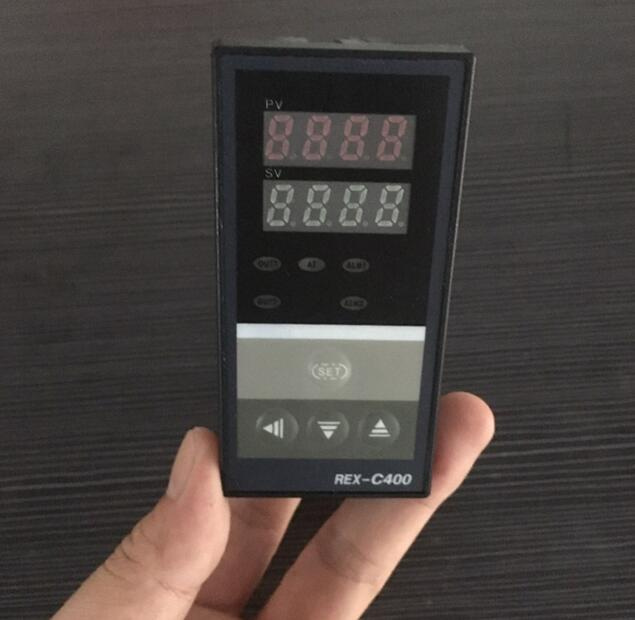

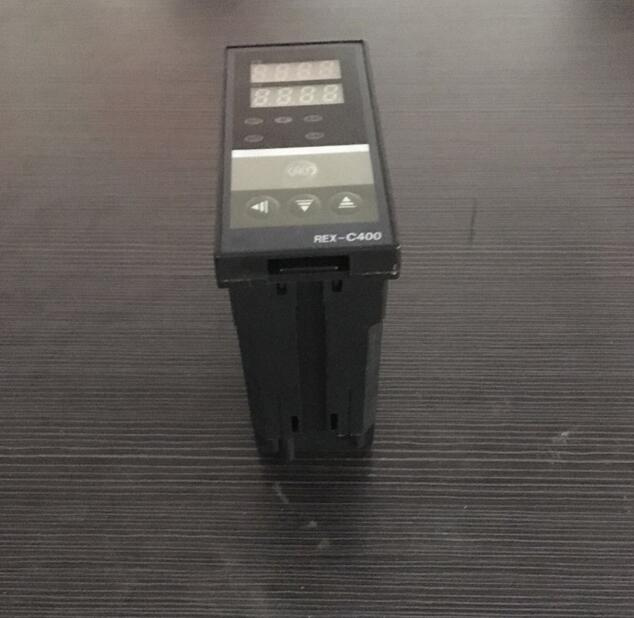

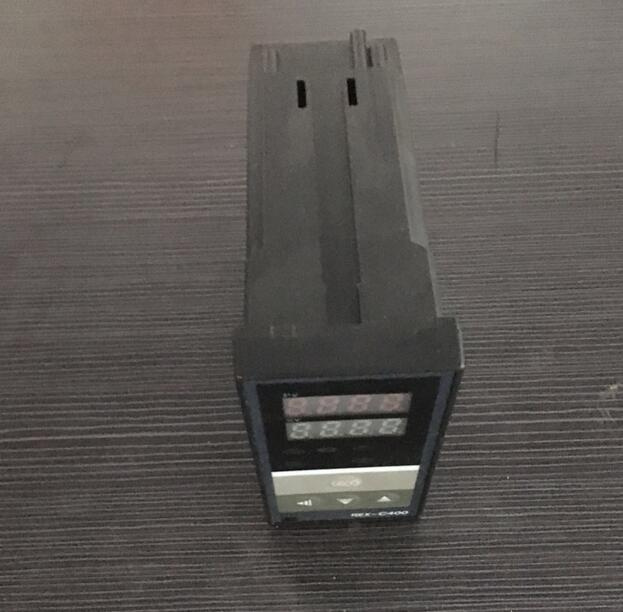

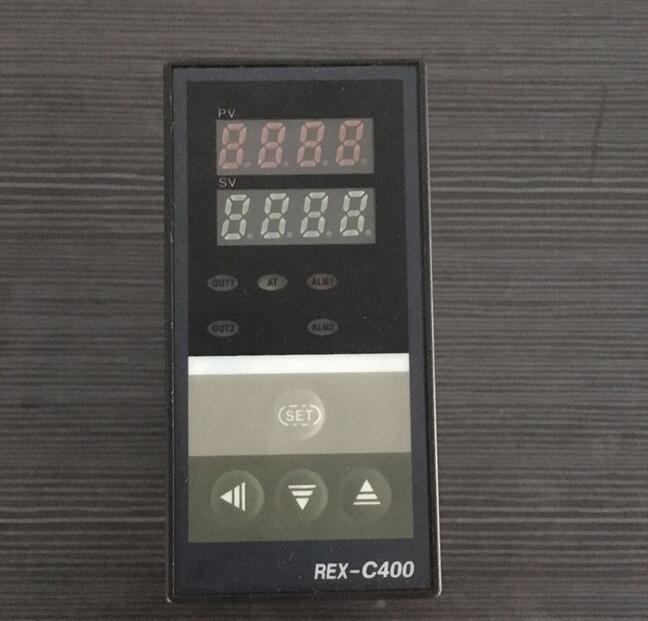

REX-C400 Relay Output PID Thermomstat Dual Digital Temperature Controller

Features:

This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor. It can be powered by 85-265V AC, Comsumption5VA. DIN 1/16.

Model: REX-C400+K thermocouple
PID contrpl

Specifications:

Display: Dual display for Celsius (C)
Range: -0-400C (Only when with the factory K type thermocouple)

Main Output: Relay:
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
Accuracy: 0.5%
Input: Thermo Resistor: PT100, Cu50
Thermocouple: J,S,K,E,Wre3 ~ Wre25
Dimension: DIN: 1/8 (48mm x 96mm x 110mm)
Weight: about 300g
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
K type thermocouple: 0-400C, 2m cable (6 feet).
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.
Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 4-20mA signal.
Control output: RELAY
Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.

Package include:

1x REX-C400 PID Temperature Controller
1x K thermocouple ( 0-400C, 2m cable (6 feet).)
1x User Manual in English
