| Prod Model: |
DRCM-99 |
| Type: |
Magnetostrictive |
Product Description

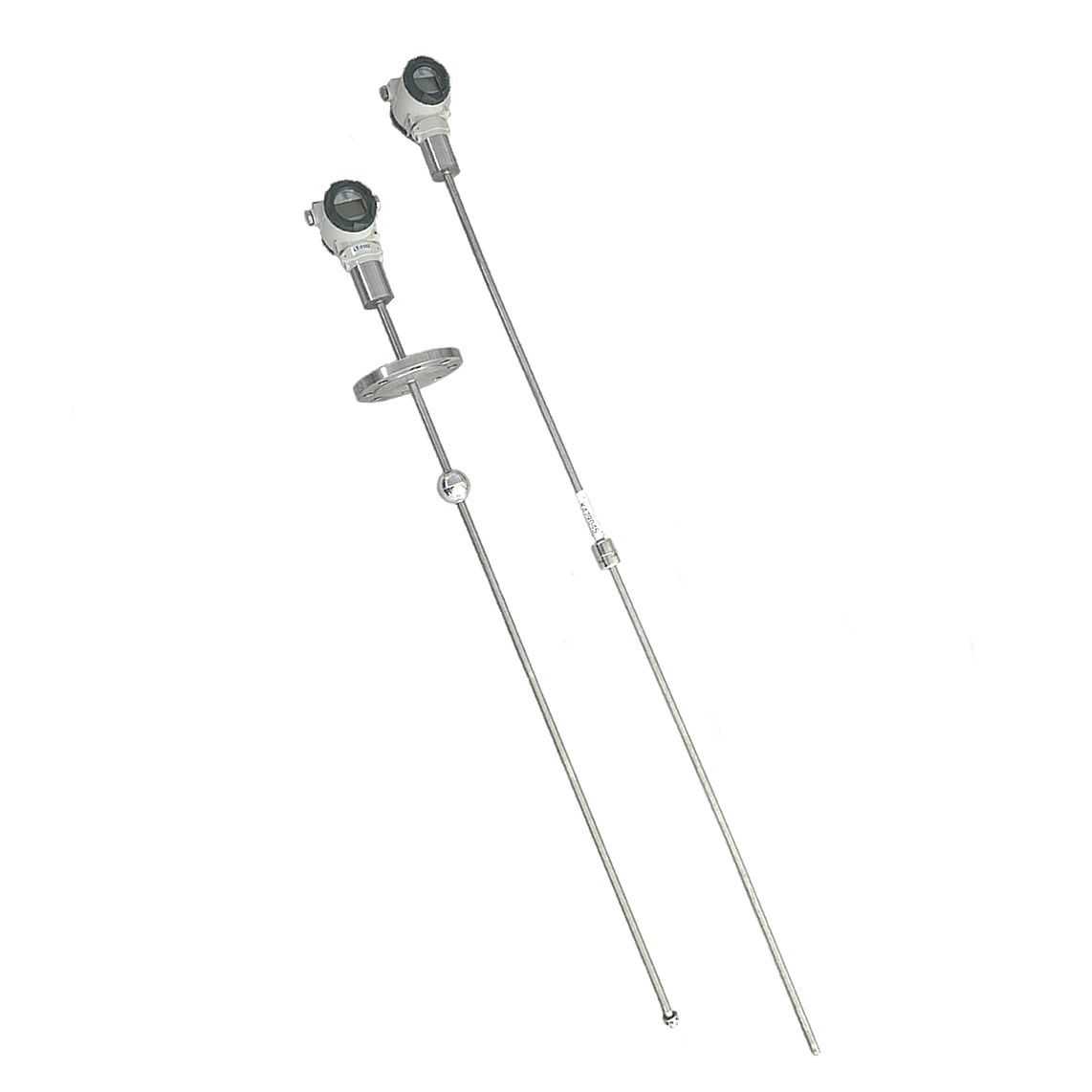

Series DRCM-99 Magnetostrictive Liquid Level Gauge adopts magnetostrictive principle and belongs to a new generation of measuring instruments. The output is a absolute value, does not require periodic re-calibration and maintenance. Series DRCM-99 provide customers with current, voltage, ModBus, Profibus and other signal output and provide effective solutions in different applications.It can be widely used to measure and control liquid level of various tanks in petroleum, chemical, water, pharmaceutical, beverage, food and other industries. It also can be applied in measurement and monitoring of hydrological measurements, water treatment and other environmental and industrial measurement process.
Key features - Simple structure, easy for installation.
- No signal drift.
- No need for periodic calibration or maintenance.
- High accuracy, no wearing parts and reliable and durable.
- Multiple choices of signal output mode.
- Flexible cable types apply for the large range
Technical Parameter
| Measurement output | Standard type:2-wire4-20mA(HART protocol can be selected.)
Digital type:ModBus, Profibus, multi-parameter( level, interface, temperature ( up to 5 points) |
Liquid level measurement
| Liquid level, interface, liquid level+ interface |
| Measurement range | 0. 50m to22m |
| Accuracy | The maximum between 0. 01 %F. S. and +0. 5mm |
| Temperature output | Up to 5 single points temperature |
| Temperature range | -50 ~ +200C |
| Temperature accuracy | ± 0. 25 C |
| Power Supply | 18-36VDC |
| Output signal | 4-20mA ,ModBus, Profibus |
| Explosion-proof | ExiaIICT6 |
| Ambient humidity | 0-100% R.H.(not frost) |
| Working temperature | Electronic unit:-4 0 ~ +80 C, waveguide:-40 ~ +125 C |
| Operating pressure | Rely on the pressure the float can withstand |
| Electronic Cabin | Cast aluminum/304 stainless steel |
| Probe material | 304/316L /304+PTFE or FEP |
| Process connection | Thread or flange connection |
| Electrical interface | 1/2" NPT thread |
