| Prod Model: |
TL1245 |
| Size: |
90(L)*70(W)*101(H)mm |
| Weight: |
1.3kg |
| Color: |
Black / Grey or Other |
| Nominal Capacity: |
4ah |
| Charge Voltage (Cycle): |
14.4~15.0V |
| Charge Voltage (Float): |
13.5~13.8V |
| Container Material: |
ABS |
| Designed Lifef: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Alarm System Power Tools,Electric Toys |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

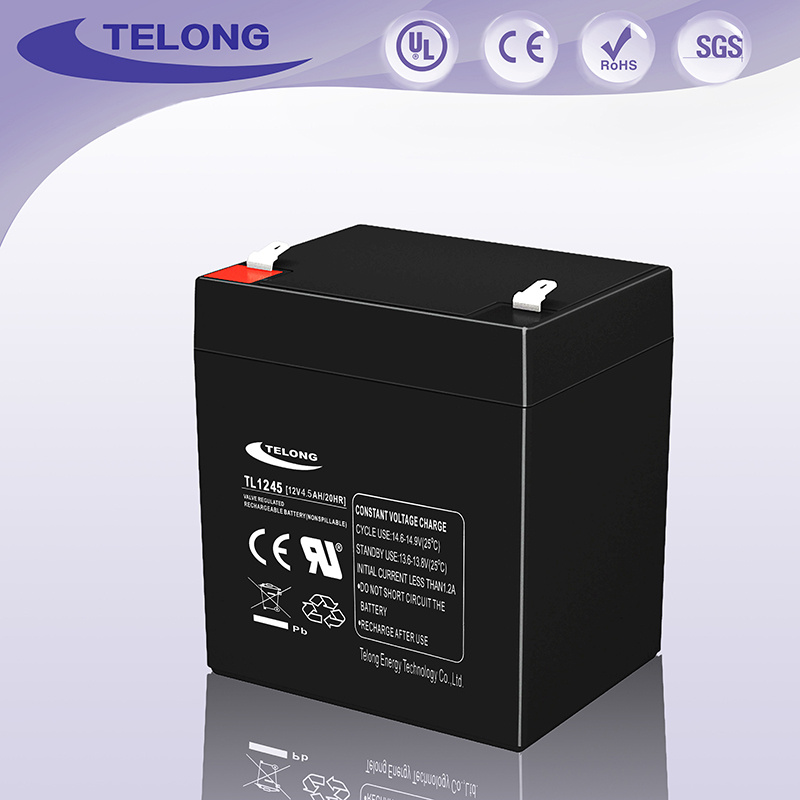

TELONG 12V4.0Ah Rechargeable Battery is a lead acid battery. It is mainly used for rechargeable loud speaker,
rechargeable fan, home solar system. Work as a storage battery, the battery is also applied in UPS, alarm
system, emergency system. The quality is guaranteed by the UL, CE, RoHS Certification.
SPECIFICATION
| Nominal Voltage | 12V |
| Rated capacity (20 hour rate) | 4 Ah |

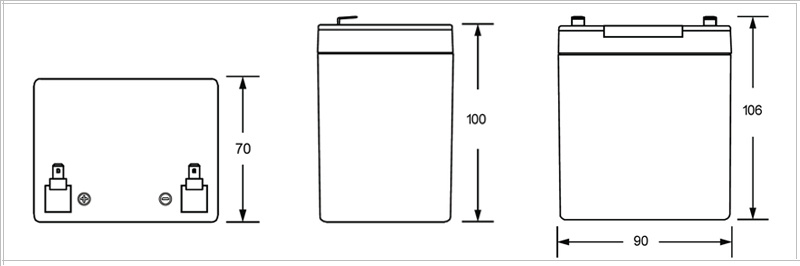

| Dimension | Length | 90mm (3.51inches) |
| Width | 70mm (2.73 inches) |
| Height | 100mm (3.90inches) |
| Weight Approx | 1.3Kg(2.87Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%
and freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge.
9).Wide Operation Temperature Range from 5'F to 122'F
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
(at different hour rate)
25'C (77'C) | 20 hour rate(0.20A ) | 4.0AH |
| 10 hour rate(0.37A ) | 3.7AH |
| 5hour rate(0.68A ) | 3.4AH |
| 1 hour rate(2.51A ) | 2.51AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 40milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |

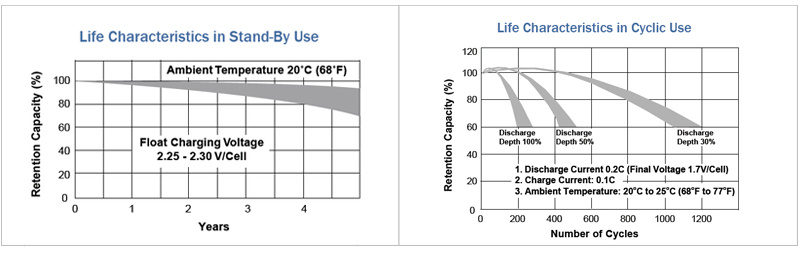

Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 1.2A |
| Voltage 14.4~15.0 V |
| Voltage 13.5~13.8 V |
APPLICATIONS
Solar Light / LED Light / Home Solar System
Rechargeable Loud Speaker / Rechargeable Fan
Power Tool / Electric Toy / Electric Scale
Control Equipment / Medical Equipment
Alarm System / Emergency Lighting System
Uniterruptible Power Supplies (UPS) and Other DC Power Supplies.
OTHER INFORMATION
| Model | Normal
Voltage
(V) | Normal
Capacity
(AH) | Dimension
(L*W*Hmm) | Weight
(kg) |
| TL1212 | 12 | 1.2 | 98*45*56 | 0.55 |
| TL1222 | 12 | 2.2 | 70*47*100 | 0.74 |
| TL1223 | 12 | 2.3 | 178*34*60 | 0.95 |
| TL1226 | 12 | 2.6 | 70*47*100 | 0.84 |
| TL1230 | 12 | 3.0 | 90*70*100 | 1.25 |
| TL1232 | 12 | 3.2 | 135*67*60 | 1.35 |
| TL1240 | 12 | 4.0 | 90*70*100 | 1.30 |
| TL1245 | 12 | 4.5 | 90*70*100 | 1.45 |
| TL1245 | 12 | 4.5 | 90*70*100 | 1.40 |
| TL1255 | 12 | 5.5 | 90*70*100 | 1.50 |
| TL1260 | 12 | 6.0 | 151*50*95 | 1.60 |
| TL1250 | 12 | 5.0 | 151*65*95 | 1.80 |
| TL1260 | 12 | 6.0 | 151*65*95 | 1.90 |
| TL1270A | 12 | 7.0 | 151*65*95 | 2.00 |
| TL1270B | 12 | 7.0 | 151*65*95 | 2.08 |
| TL1270B | 12 | 7.0 | 151*65*95 | 2.15 |
| TL1280 | 12 | 8.0 | 151*65*95 | 2.25 |
| TL1290 | 12 | 9.0 | 151*65*95 | 2.35 |
