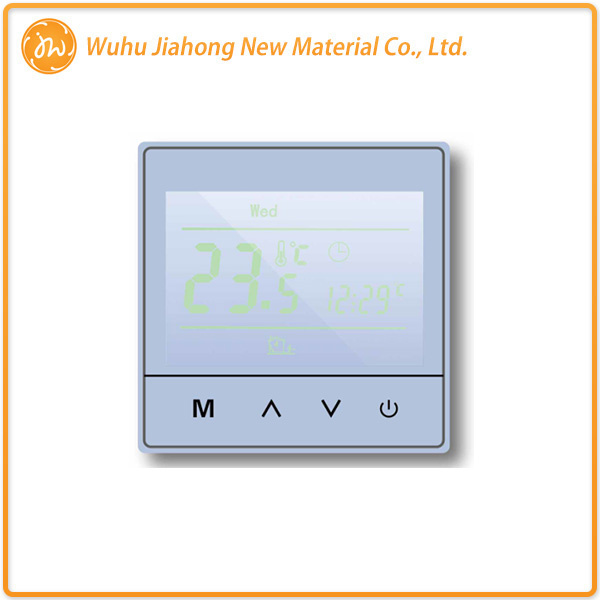

Digital Temperature Controller Room Thermostats with Large LCD Screen

Prod Model:	warmlife-m
Temperature Sensor:	Ntc
Temperature Accuracy:	±1ºC
Screen:	LCD
Power Consumption:	<1W
Key:	Touch Key
Temperature Setting:	5-60ºC
Load Current:	3A/16A
Voltage:	AC230V 60Hz
Electrical Appliance Standards:	GB14536 .1-2008

Product Description

Digital Temperature Controller Room Thermostats with large LCD screen

1.General imformation of Digital Temperature Controller Room Thermostats with large LCD screen
Warmlife-M Intelligent digital thermostat is a suitable for sub room temperature control and household room temperature control in floor heating systems, through comparing the environment temperature and setting temperature to control the operation of the floor heating system and fulfill comfortable temperature and energy saving.Warmlife-M thermostat used microcomputer control technology , with large LCD screen,elegant design , easyto use ,and the thermostat has manual automatic function , programmable function and memory function.

User Operation
Power key: Touch the On / Off key to turn the system on or off.
Mode key: You can select "period control mode" or "manual mode" by this key.
Up / Down key: Touch the Up and Down keys to set the temperature and adjust system parameters.And press Up and Down simultaneously and hold for 5 seconds to enter lock key function.
Manual mode: Set the temperature manually by this key.
Automatic mode: Adjust to the automatic mode, the thermostat will work cyclically by week programming.
Temporary manual mode: The temperature can be setted manually to
the temporary manual mode in programming mode.

Technical data
1. Temperature sensor : NTC          2. Temperature accuracy : ±1ºC    3. Screen : LCD
4. Power consumption : <1W          5. Key : Touch key        6. Temperature setting : 5-60ºC
7. Load current : 3A/16A            8. Voltage: AC230V    60Hz
9. Electrical appliance standards :   GB14536 .1-2008

Company Information

1.About Us
WuHu Jiahong New Material Co. Ltd is the largest heating cable manufacturer in Asia-pacific. We are always dedicated to research, develop and produce both constant wattage and self-regulating heating cables since 1993. Till now, Jiahong has obtained more than 30 national patents. We are one of the few members of China self-regulating heating cable national standard GB/T 19835-2005.
Most of WuHu Jiahong products passed UL, CSA, ETL, TUV, CE, ATEX etc. We export to many regions, especially North America, Europe, Australia and Asia. High quality combines with professional services earned us a good reputation.

FAQ
1.How long will it take for the underfloor heating system to warm up?
The warm up time of an electric underfloor heating system will be dictated by the insulation used beneath it and the output of the system. In general, the better insulated the sub-floor the faster the system will warm up, with Underfloor Insulation boards?facilitating a very speedy warm up time of as little as 15 minutes, and un-insulated concrete floors causing the slowest warm up time. Using a?200W system?beneath ceramic/stone tiles provides a faster warm up time than 150W system.

2. Can I turn my heating on the day it is fitted?
If you have installed your heating beneath tile adhesive, levelling compound or a screed you must allow this to dry out before turning on your system for the first time. If the system is turned on too early it will force the moisture out of the covering which may lead it to crack. We would recommend speaking to the manufacturer of your flexible tile adhesive, grout or screed to confirm the drying time required.

3. Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat. This will allow for simpler and more accurate temperature control of each room and will avoid heating rooms which do not require it.
