Digital Temperature Controller with Time Control Function (XMTA-918T)

Name: Digital Temperature Controller with Time Control Function (XMTA-918T)
Brand: all-electronics-online.com
SKU: 714127982
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 29.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTA-918T

Product Description

XMT*-918T series intellectual ability temperature regulator series controlled by single chip,free input
multi signals of thermocouple, ON/OFF control and PID control,besides,it has time function,you can
adjust time unit hour and minute or minute and second .they are widely used in the automatic control
system of the temperature, chemical, ceramics, light, metal, petrochemical and heat treatment industry.

Main technical specification
1. Basic deviation: ± 0.5%F. S± 1
2. Cold end compensating deviation: ≤ ± 2.0
3. Sampling cycle: 0.5s
4. Time range: 1S~59.59H
5. Time precision: Class 0.005
6. Control cycle: Relay output 2~120s and can be adjusted
7. Relay output contact capacity: AC220V/5A(resistance load)
8. Power: AC85V~242V(switching supply), 50/60Hz, or the other special request.
9. Working condition: Temperature 0~50.0, relative humidity≤ 85% RH, without corrode and strong electric radiation

Time function selection:
1:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller keep on heating;
2:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller stop heating;
3:regular temperature control(no alarm)+time relay function:start timing when the power is on, alarm relay attracting after reaching the time .

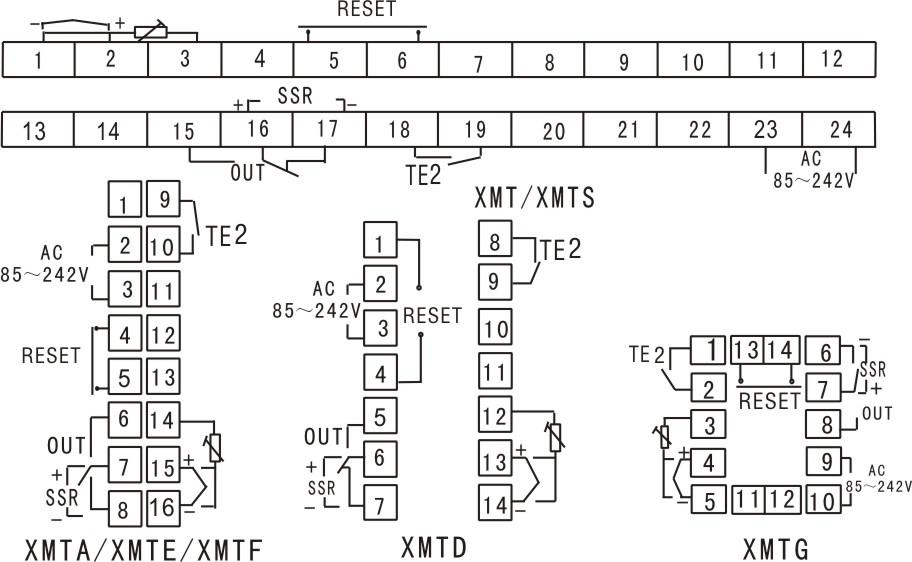

Panel and connection scheme description(consult)

Certificate

Packaging Details

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
