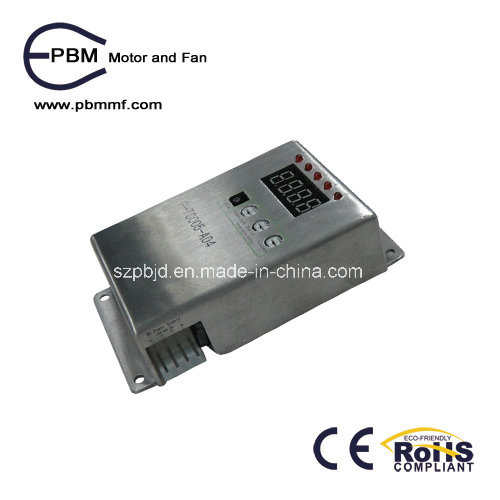

Digital Thermal Controller Card with Top Function

Name: Digital Thermal Controller Card with Top Function
Brand: all-electronics-online.com
SKU: 703268585
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	P-TV005-A04
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermal Sensor Lead Wire Length: 800mm:	Lifespan Expectancy: 50, 000 Hours
Usage:	Ventilation, Air Purifier
Control Type:	Digital
Type:	Temperature Controller

Product Description

Weight: 42g
Two fans can be controlled at a time
Operating voltage: 20 to 56V DC
Maximum loading current: 5.0A per fan
Fan start-up temperature: Adjustable from 25 to 30C
Fan full-speed temperature: Adjustable from 35 to 40C
Over-temperature alarm: Adjustable from 35 to 55C
Tachometer output: Open collector, four pulses/rev
Tachometer output current: 20mA maximum
Alarm output: Fan failure and over-temperature alarm, 5V high-level output when alarm
Alarm output current: 20mA maximum
Digital display screen: Instant ambient operating temperature
Fan operating status and speed
Thermal sensor lead wire length: 800mm
Lifespan expectancy: 50, 000 hours
