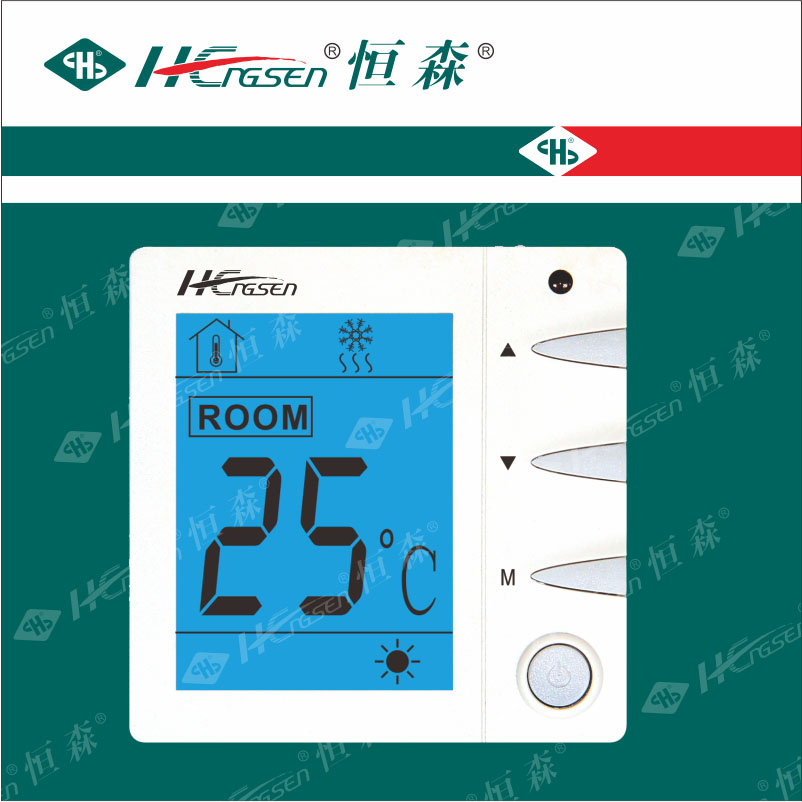

Digital Thermostat/ Heating System /Heating Plant Wks-03A

Name: Digital Thermostat/ Heating System /Heating Plant Wks-03A
Brand: all-electronics-online.com
SKU: 703808552
Availability: InStock
Rating: 4.7 (143 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WKS-03A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperature:	0-60
Rated Voltage:	220V+-10%
Range Of Control Temperature:	10-40

Product Description

Product introduction
WKS-03A can be classified into WKS-03A-D and WKS-03A-F. Temperature is displayed by LCD screen. Microcomputer control technology control the compared result of room temperature and set data. Electric relay's start-stop to maintain the temperature.

Function
1.       Working mode: heating
2.       Freeze-proofing
3.       Blue background light and LCD screen
4.       Remote function
5.       Temperature compensation
6.       Light touch operation(optional)
7.       Sensor(inner control outer limit, inner control, external control)

Specification		WKS-03A-D	WKS-03A-F
Rating voltage		90~260VAC 50/60Hz
Power		≤1W
Current		<30A	<2A
Working environment		0~60 degree
Control temperature range		10~40 degree
Control precision		±1 degree
Temp. Sensing parts		NTC
Housing	Material	Tenacious fire PC engineering plastics
	color	Milky white
Outline dimension	Display board	86×86×16mm
	Power panel	61.5×45.5×25mm
	Telecontroller	85.5×54×6mm

We are professional OEM manufacturer of HVAC Control Products, Refrigeration Parts&Tools, Brass fittings&Copper Fitting, Disperse pipe(refnet joint).

We founded in 1988 years and have 10 years ODM&OEM experiences.

We have 3 main series products.

(1)HVAC Control products:

-Motorized brass Ball Valve

-Motorized Zone Valve

-Electric Thermal Valve

-Brass Solenoid Valve(air, oil, water)

-Motorized Flange Iron ball valve

-Damper actuator

-Dynamic Pressure Balance Electric Regulating Valve

-Dynamic Balance Filter motorized ball valve

-Water Flow Brass Static Balance valve

-Electrical Control Auto compensation Plug valve

-Mechanical thermostat

-Digital thermostat

-Temperature sensor

-Liquid Flow Switch

-HVAC Brass Control Valve(with Actuator)

-HVAC Iron Control Valve(with Actuator)

(2)Refrigeration Parts&Tools:

-Double Manifold gauge sets-Single manifold set-Refrigeration Gauges

-Charging Hose-Quick Couplers-Sight Glass-Hand Valve

-Split Air Conditioning Valve-Refrigeration Ball Valve

-Refrigeration Solenoid Valve-Filling Valve-Can Tap Valve

-Needle Valve-capillary-Comb Slice-Cutting Knife

-Brass Nut-Brass tie-in

-Disperse pipe(refnet joint)

(3)Copper&Brass Pipe Fitting:

-copper Elbow-copper Tee-copper Straight coupling

-copper Reducing Coupling-copper U Bend-copper P-Trap

-Brass Solenoid Valve(water, oil, air)

-Brass Male&Female elbow

-Brass Male&Female Tee

-Brass Male&Female connector

If you are interesting in our products and service,

Please contact with us, Thanks.
