Digital Touch Screen Temperature Controller Ek3020

Name: Digital Touch Screen Temperature Controller Ek3020
Brand: all-electronics-online.com
SKU: 824577325
Availability: InStock
Rating: 4.4 (83 reviews)

Price:	Negotiable/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EK3020
Product Name:	Refrigeration Digital Temperature Controller
Certificate:	Rhos,Ce
Accuracy:	+ / - 1
Useage:	Cold Storage ,Refrigeration,Showcase
Power Supply:	220VAC
Sensor Type:	Ntc Sensor
Safety Level Of The Front Panel:	IP54
Sensor Length:	2m
OEM:	Accepted
ODM:	Accepted

Product Description

^{Digital touch screen temperature controller EK3020}

Product Description

Digital touch screen temperature controller EK3020

Features and functions:
1.This controller is suitable for temperature control of the middle and low temperature cold storage;
2.It could measure,display,control temperature,with the function of temp. calibration,forced defrost,over temp. alarm and sensor failure alarm,one key recovery of factory default value,parameters preset and one key recovery;
3.It adopts touch key design with the key lock function;
4.One way sensor input:cabinet temperature sensor(Pb1).Two way control output:Refrigeration and defrost.

Technical parameters:
1.Temperature measuring range:-40ºC~99ºC
2.Temperature controlling range:-40ºC~85ºC
3.Accuracy:±1ºC at(-30ºC~50ºC);±2ºC at other range
4.Resolution: 0.1ºC
5.Power consumption:<5W
6.Output capacity:Refrigeration:10A/220VAC Defrost:10A/220VAC One way buzzer alarm output
7.Power supply: 220VAC ±10%,50/60Hz
8.Ambient temperature: -5ºC~60ºC

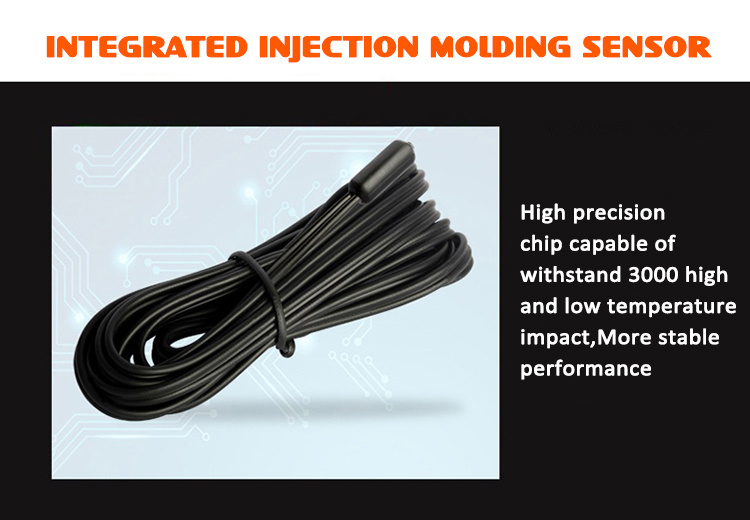

9.Probe type: NTC(10KΩ/25ºC,B value3435K)
10.Sensor length:2M

Specification:
1.Product size85*35*63.8mm
2.Installation size:71*29mm

Our Services
1. We offer 7/24 full time service, please feel free to contact me.

2. OEM service available and custom designs are welcomed!

3. We can offer you premium quality,competitive,price,prompt delivery and low minimum orders.

4. We can manufacture all kinds of digital thermometer according to your design and sample,we are more than happy to answer even the smallest question for you and we will gladly give you a bid on any item you are interested in.

5. All items from us has one year Warranty.

6. All items from us are high quality with first-class after-sale service.

7. We are not responsible for any custom duty or import tax.
8. If sincere cooperation, we can provide free samples to your company.

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd

Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration

Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.

Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.

Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.

We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
