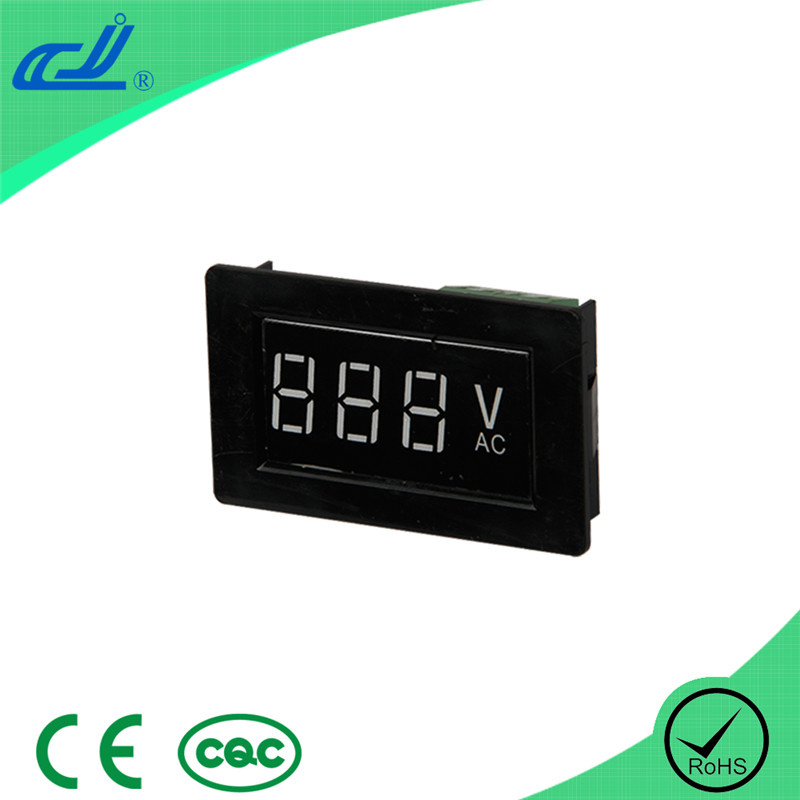

Digital Voltage Meter Dy85

Prod Model:	DY85
Dimensions:	70X42X38mm

Product Description

The  digital current meter has good stability, high accuracy, easy to install. With appearance of various kinds of pointer traditional voltage, current meter and hole.

 Technical specification:


1. Accuracy Class: +_1.0%F.S +_1
2. Current range: 0~1000A (0-9.999A)
3. Display mode: 0.56" LED; red, blue, green, yellow
4. Power supply: 8-30V  AC/DC
5. Working circumstance: 0-50C
    Relative humidity: less than 85%
6. Working current < 20MA
7. Measurement rate>3 times/S

Meaning of the model code


                                            D  (         )  ----    (        )     (        )      (        )
                                           (1)                 (2)           (3)            (4)

(1) .   Product classification
    L: Current                          Y: Voltage                         H: Frequency meter                          W: Power meter

(2).    External dimension and installation hole(mm)
85:  70x42x38 mm     62x37
48:  48x48x30 mm    44x44
69:  79x43x20 mm    71x39
80:  80x80x30 mm    75x75
44:  52x34x30 mm    47x29
96:  96x48x30 mm    92x44

(3).   Power supply
        1. AC80~260V                         2. AC180~420V                  3. AC/DC 12~30V

(4).   No power supply an external signal input directly
