| Prod Model: |
KA-DP24A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Delivery Time: |
Within 30 Days |
| Warranty: |
2 Years |
| Package: |
Customized Color Box or White Box |
| Type: |
Microwave Sensor Switch |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Principle: |
Microwave Sensor |
| Application: |
Corridor, Warehouse,Garage,Toilets etc. |
Product Description
KA-DP24A 25-80V Dimmable Microwave Sensor Specifications:
1) Power source: DC 25-80V
2) Output current: <3A
3) Transmission power: <0.3mW
4) Working temperature: -30°C~+70°C
5) Protection level: IP20,Class 2
6) Installation sit: indoors, ceiling mounting
7) HF system: 5.8GHz CW electric wave,ISM band
8) Detection angle: 360°(ceiling mounting)
9) Detection range: 1-8m (radii.) (adjustable)
10) Time setting: 8sec-12min, (adjustable)
11) Light-control: 10-1000LUX, (adjustable)
12) Dimmable Standby brightness: 10-30%
KA-DP24A Dimmable Function Description:
The dimming standby brightness is in the range of 10%~30%. When the ambient light is less than 70 lux,
the system starts dimming mode. If there is no signal detected during the delay time, it
will enter the percentage lighting. Once signal detected, it recovers to 100% lighting. It
will auto exit dimming mode, when the ambient light is over 100 lux. The dimming mode
works digitally and independently.
Product Introduction:

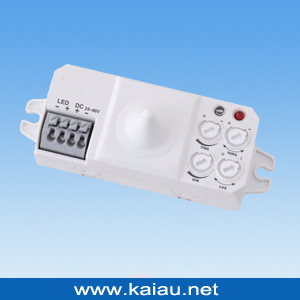

KA-DP24A is a hi-precision digital microwave sensor whose detection range is 360°and working
frequency is 5.8GHz. It applies Doppler principle to emit & receive signals. It adopts MCU (Micro Control Unit)
that greatly increases its precision and decreases its fault rate. It's delicate in appearance and compact in
structure. It can be independently connected to the loads or easily installed inside the lightings with the
non-metal lampshade. It is widely applied in the passageway, washroom, elevator, household or other public
areas for security protection or energy saving. It possesses several technical patents and is the perfect choice
for your intelligent living.
