Dimmer Wall Mounted Transfer Switch for Smart Home Automation

Name: Dimmer Wall Mounted Transfer Switch for Smart Home Automation
Brand: all-electronics-online.com
SKU: 818138965
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 19-48/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZW31
Z-Wave Frequency:	908.42MHz
Range:	Mini 30m Line of Sight
Voltage:	120 VAC /Dimmer 500W
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Certification:	FCC, RoHS

Product Description

The ZW31 Wall Mounted Switch is a component of the lighting control system. Wire the Wall Mounted Switch in place of a standard wall switch. Inclusion of this Switch allows remote ON/OFF control of loads connected. This Wall Mounted Switch is designed to work with other
Z-Wave enabled devices. Z-Wave nodes of other types can be added to the system and will also act as repeaters.

Technical data

Operating Volatge	120Vac/60Hz
Maximum Load	500W
Range	Min 30m line of sight
Dimensions	115(L)70(W)44(H)mm
Net Weight	130g
Frequency	908.2MHz

Installation
1. Before installation ensure that the voltage supply is disconnected.

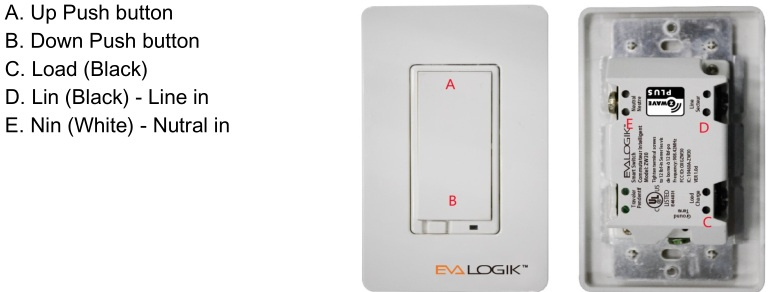

2. Connect ZW31 module as shown on above diagram.

3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.

4. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the ZW31 to your controller. To get in the "Add" mode, the distance between ZW31 module and controller is suggested to be in one meter. Quickly pressing the learn switch of ZW31 for 1 second at least & release to be included.

5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW31 from your controller. Press the learn switch of ZW31 for 1 second at least &release to be excluded.

Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.

NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.

Warranty 1 year
