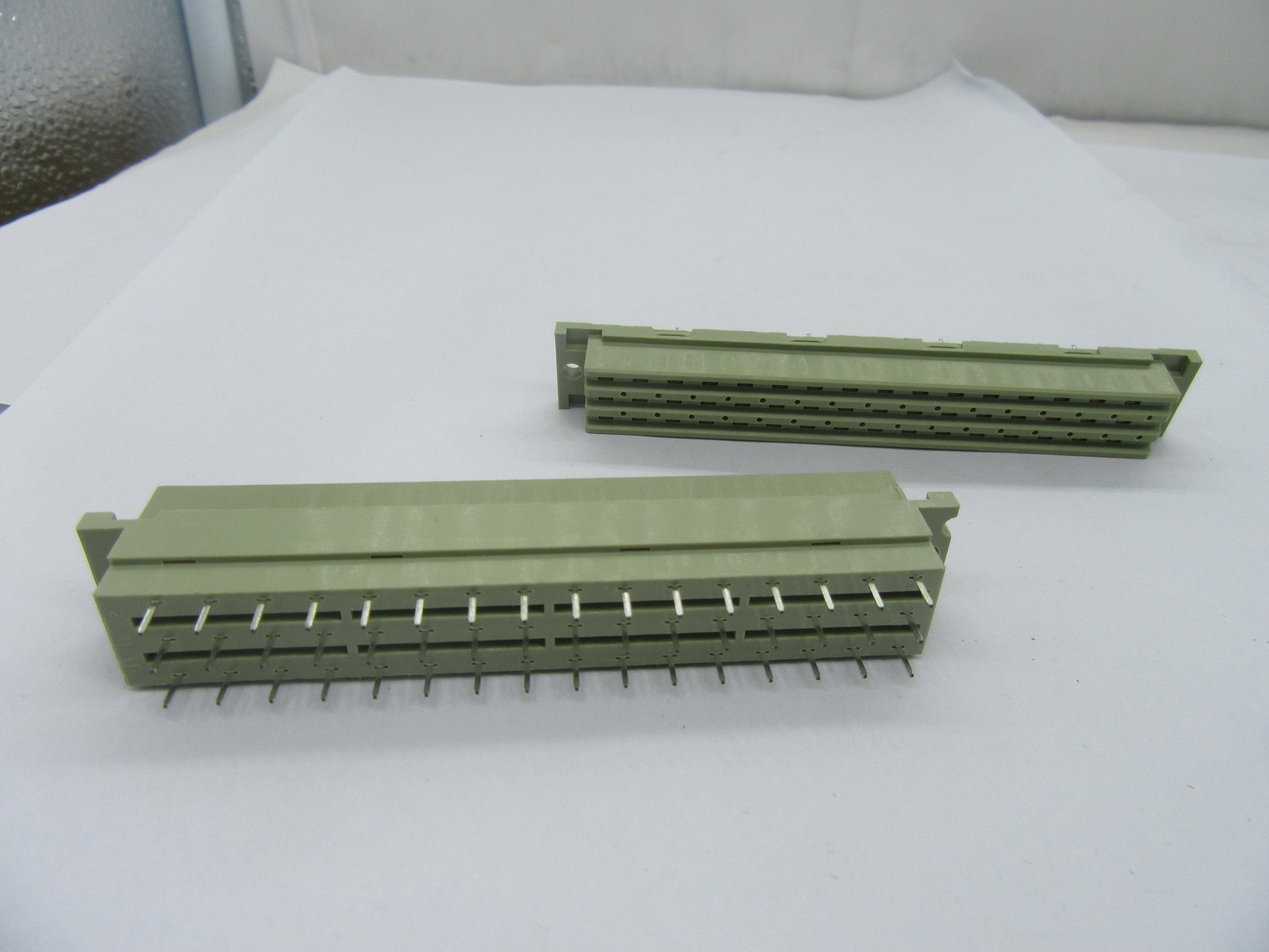

DIN 41612 Vertical Female Type High Power Connectors 48 Positions

Name: DIN 41612 Vertical Female Type High Power Connectors 48 Positions
Brand: all-electronics-online.com
SKU: 830330485
Availability: InStock
Rating: 4.3 (118 reviews)

Price:	US $ 2.3/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DIN 41612-48P
Type:	High Voltage Coaxial Connectors
Coupling Mechanism:	Clamping Type

Product Description

Din41612 Eurocard connector, Female vertical, 48Poles

Special features:
Rated current: 2.0A
Insulation-resistant: 100, 000M; (minimum) at 100V DC
Contact-resistant: 20M; (maximum)
Withstand voltage: 1000V AC for one minute
Operating temperature: -55 to +105C
Contact material: Phosphor bronze
Contact plating: Au/Sn over Ni
Insulator material: PBT + 30%, GF UL 94V-0
Insertion force: 160 pins (maximum) 150N
Poles: 48 pins
OEM and ODM orders welcomed

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
