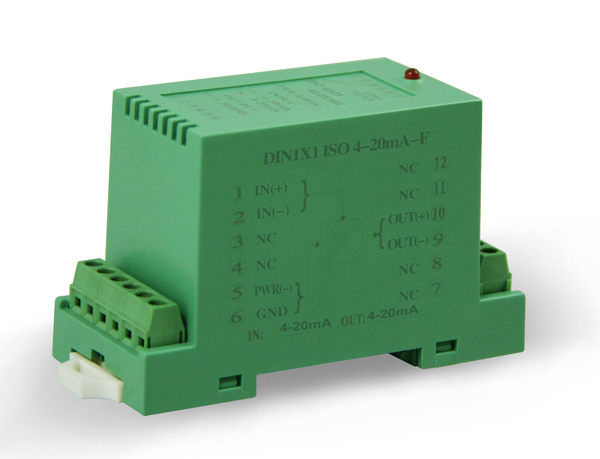

DIN Rail 4-20mA Dual Loop Powered Signal Transmitter
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
DIN1X1 ISO 4-20mA-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
4-20mA |
| Output Signal: |
4-20mA |
| Isolation Mothod: |
Electromagnetic Isolation |
| Isolaton Voltage: |
3000VDC |
| Package: |
DIN35 Rail Mounted |
| Operation Temperature Range: |
-20--+85cel. Dg. |
| Input-Output: |
1-in 1-out |
| Application: |
Signal Isolation and Conversion |
Product Description
DIN Rail 4-20mA Dual Loop Powered Transmitter
Feature:
Supply power for sensor: 24VDC
4-20mA Signal loop input
High linearity (Nonlinearity<0.5%)
Low cost, small size, standard SIP12 package
4-20mA signal input/Output, 3000VDC isolated voltage
Industrial temperature (-45_+85 grade. C)
Panel or DIN Rail mounted
Application:
PLC, DCS analog signal data acquisition and isolation
Industrial process 4-20mA signal isolation
Ground-loop elimination
No distortion in long distance signal transmission
Instrument signal acquisition
Electric supervision, medical application and Isolated safe Bar
| Input | Power supply | Output |
| 4-20mA | None Loop Powered | 4-20mA |
