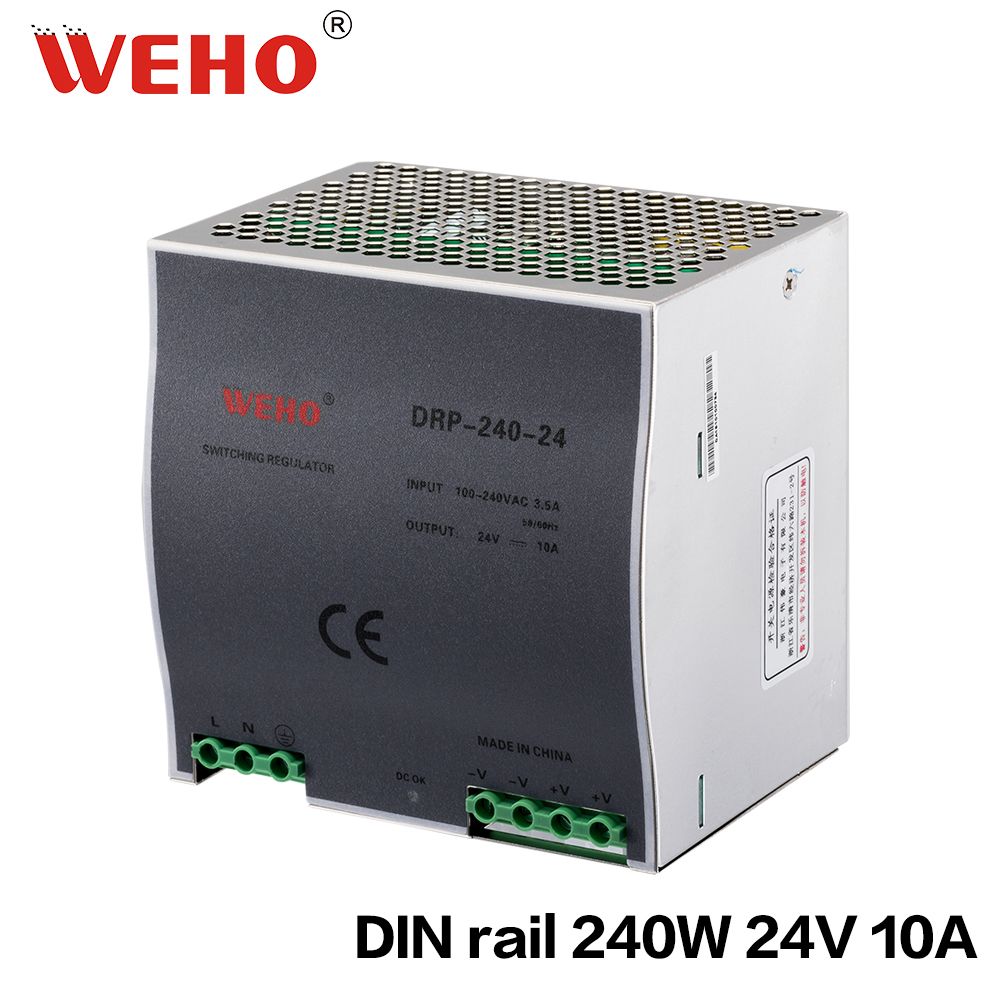

DIN Rail AC/DC 10A 240W 24V Switch Mode Power Supply

Name: DIN Rail AC/DC 10A 240W 24V Switch Mode Power Supply
Brand: all-electronics-online.com
SKU: 832319685
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 30-35/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DRP-240-24
Type:	Constant Voltage
Material:	Aluminum Case
Weight:	1.2kg
MOQ:	1-5PCS Sample Order
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Test:	100% Full Load Burn-in Test
Voltage:	24V
Current:	10A
Output Type:	Single
Warranty:	2 Years
Output Power:	201 - 300W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

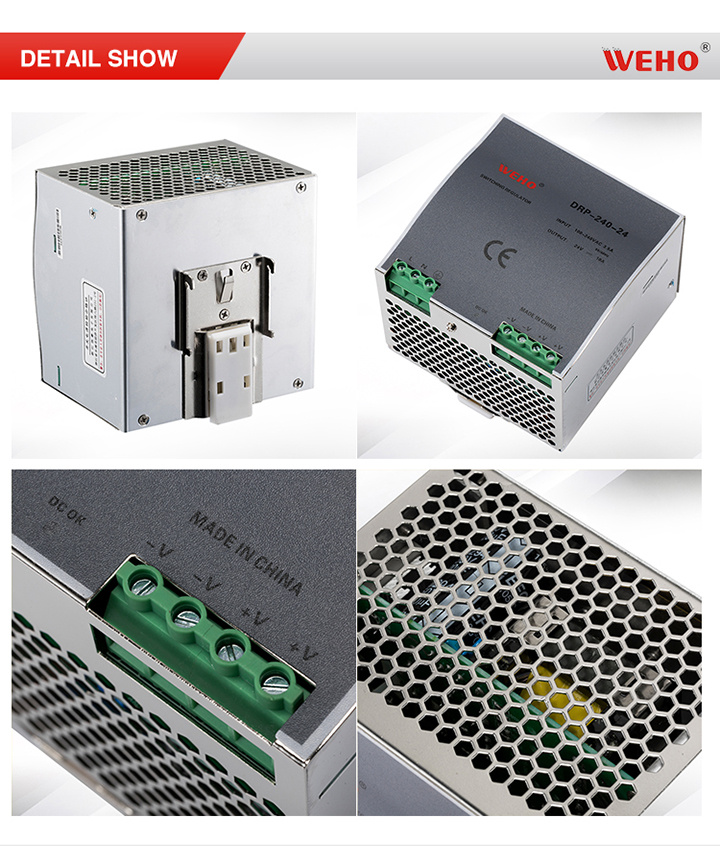

DIN Rail ac/dc 10a 240w 24v switch mode power supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Model / Specification	DRP-240-24	DRP-240-48
DC output voltage	24V	48V
Output voltage error (Note2)	±1%	±1%
Rated output current	10A	5A
Output current rage	0-10A	0-5A
Wave and noise(Note3)	80mVp-p	150mVp-p
Inlet stability(Note4)	±0.5%	±0.5%
Load stability(Note5)	±1%	±1%
DC output power	240W	240W
Efficiency	84%	85%
Adjustable range for DC voltage	21.6-26.4V	43.2-52.8V
AC input voltage range	88~264VAC 47~63HZ;120~370VDC
Input current	3.5A/115V 1.8A/230V
AC impulse current	Cold-start current 30A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type:PULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	30-34V	54-60V
High-temperature protection	100°C±5°C(TSW1)
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,40ms,20ms/230VAC 800ms,40ms,20ms/115VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval:3KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure:500VAC/100M Ohms
Working temperature and humidity	-10°C~+50°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95RH
Overall dimension	125.2125.2100mm
Weight	1.2Kgs 20PCS/14.4KG/1.2CUFT
Safety standards	Meet UL1012
EMC standards	Meet Part 15J conduction class B
