Yueqing Fron Electric Co., Ltd. >> DIN Rail-Circuit Breaker-Miniature Circuit Breaker-Hydraulic Magnetic Circuit Breaker

DIN Rail-Circuit Breaker-Miniature Circuit Breaker-Hydraulic Magnetic Circuit Breaker

DIN Rail-Circuit Breaker-Miniature Circuit Breaker-Hydraulic Magnetic Circuit Breaker
Price: US $ 1-1.5/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Din Rail
Spec: Flush, Surface
Max Voltage: 240V
Standard: IEC 157-1973 Bc4752-1977 and BS 3871
Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Installation: Fixed
Structure: MCB
Poles Number: 3
Operation: Electric
Arc-extinguishing Medium: Circuit Breaker
Certification: CNAS,Ma

Product Description

Product Description
DIN Rail

Features:
1. Quick and easy to cut to required length, needing no special tools
2. Available in lenths of 1248mm (96ways * 13mm or 48ways * 26mm)
3. Indexing of mini rail means MCB is in a fixed position and therefore cannot slide

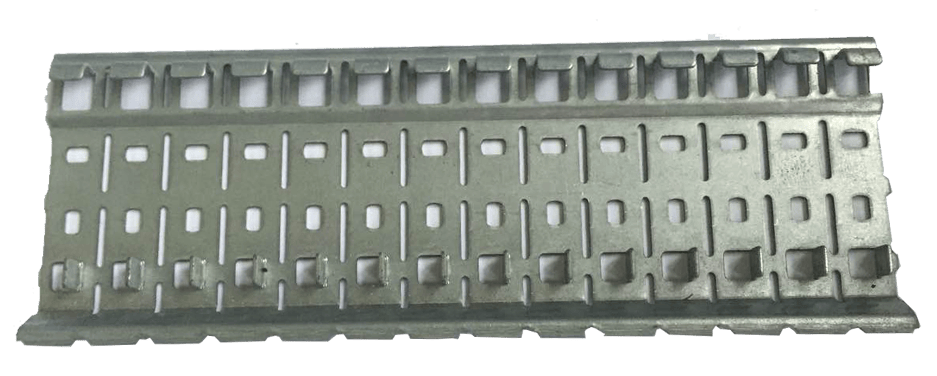

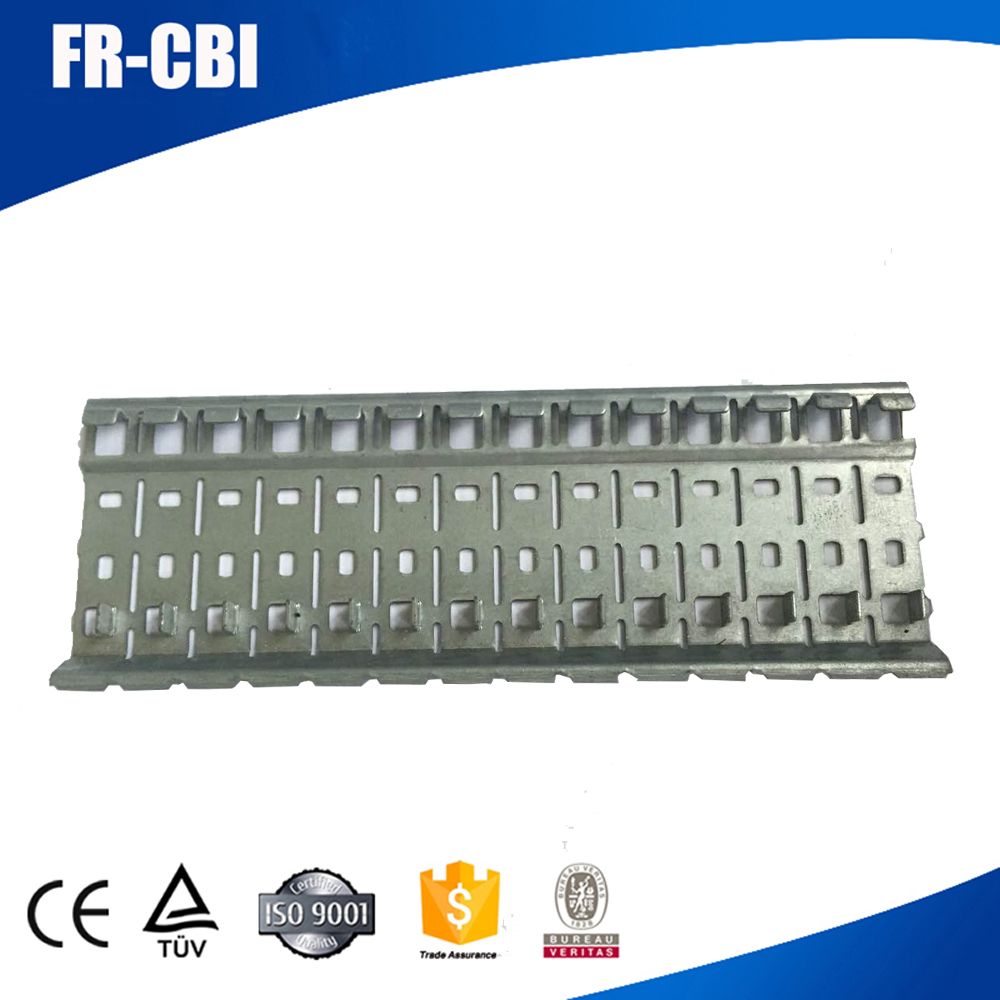

DIN standard slotted low profile 35x7.5 steel din rail



Product Data Sheet

T&G Part Number



D357.5E10+

Description



35 x 7.5, slotted, steel

RoHS Status



RoHS compliant





Size



35 mm x 7.5 mm (1.378" W x 0.295" H)

Length



1000.00 mm (39.370") or 2000.00 (78.740")

Thickness



1.00 mm (0.039")

Slotted/Unslotted



Slotted

Length x Width of Slots



15 x 6.2 mm (0.591" x 0.244")

Standard



EN60715





Surface Treatment



Passivated by trivalent chromium after zincification

Surface Color



Yellow





Weight



0.315 kg/meter approx

Standard Package



50



Cross Reference List

T&G



D357.5E10+

ENTRELEC



173220.05

PHOENIX CONTACT



801733

WAGO



210-112

WEIDMULLER



51450

WIELAND



98.300.1000.0




Yueqing Fanrong Electrical Co., Ltd lies in Wenzhou City, which is called as the capital of the low voltage electrical appliance of China, it is very convenient for transportation.

We are one of the best manufacturers and exporters in Liushi, China and specialize in manufacturing various low voltage electrical products, such as mini circuit breaker, isolator switches, hydraulic magnetic circuit breaker, lighting arrestor and so on. They are sold in worldwide market with fashionable design and favorable price.

In near, our company continued adopts international advanced technology and updating our products, have owned advanced equipment of production, inspection and experiment, powerful technical force and network system of sales, services all over the world. We adhere to the guide of market and the principle of living on quality, developing on credit. We wish to make friends with all over the world to expand our products market and to create a brilliant tomorrow together with out customer.
