DIN Rail Delay off Without Supply Power Time Relay 16A Industrial Control Auto Timer Relays Time Delay

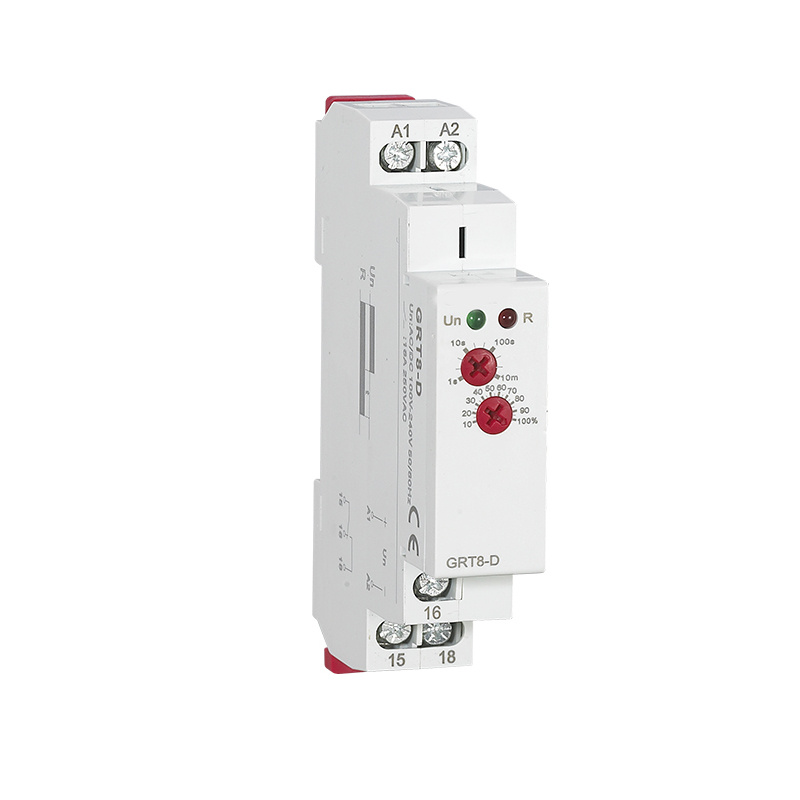

Name: DIN Rail Delay off Without Supply Power Time Relay 16A Industrial Control Auto Timer Relays Time Delay
Brand: all-electronics-online.com
SKU: 839154785
Availability: InStock
Rating: 4.8 (97 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GRT8-D
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail

Product Description

Applications
-Back-up source for Delay OFF in case of voltage failure (emergency lighting, emergency respirator,or protection of el. controlled doors - in case of fire).

Function Features
-Time range (adjustable by rotary switch and fine setting by potentiometer):
0.1 s - 10 min.
-Voltage range: AC/DC12-240V , clamp terminals.
-Relay status is indicated by LED.

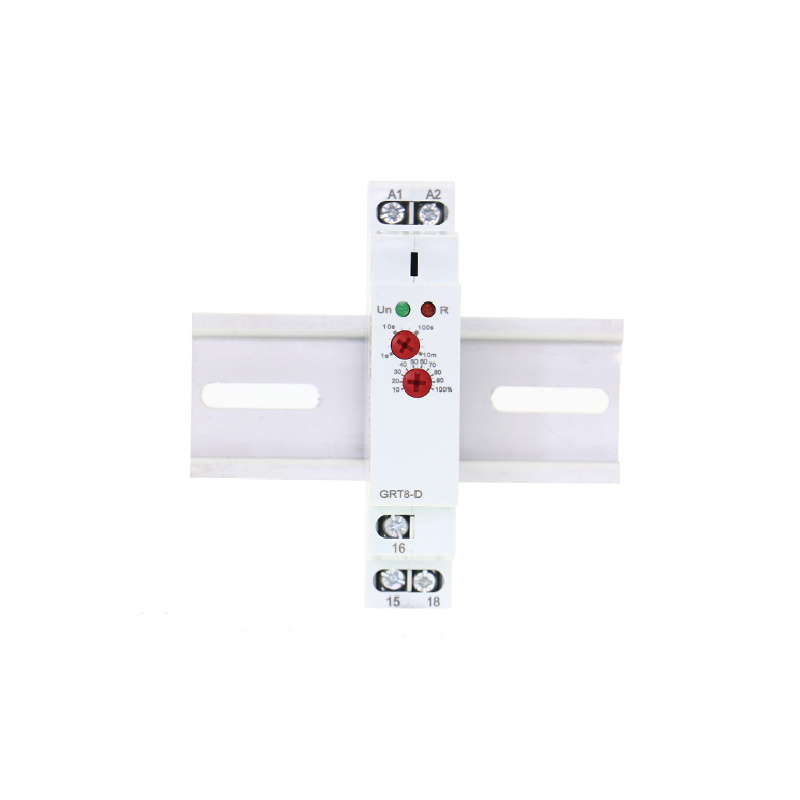

-1-MODULE,DIN rail mounting.

Model and connotation
GRT8 D
Rated control supply voltage:
W240: AC/DC 12-240V

Technical Data
Electrical features

Model NO	GRT8-D
Function	Delay off without Supply Power
Voltage Range	AC/DC24V-240V
Output	1 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
