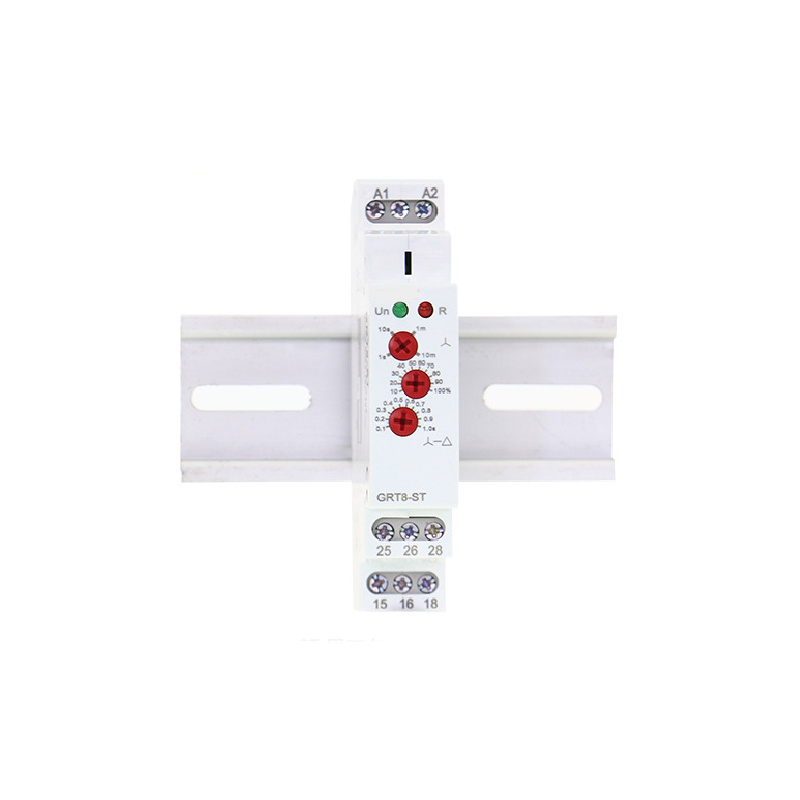

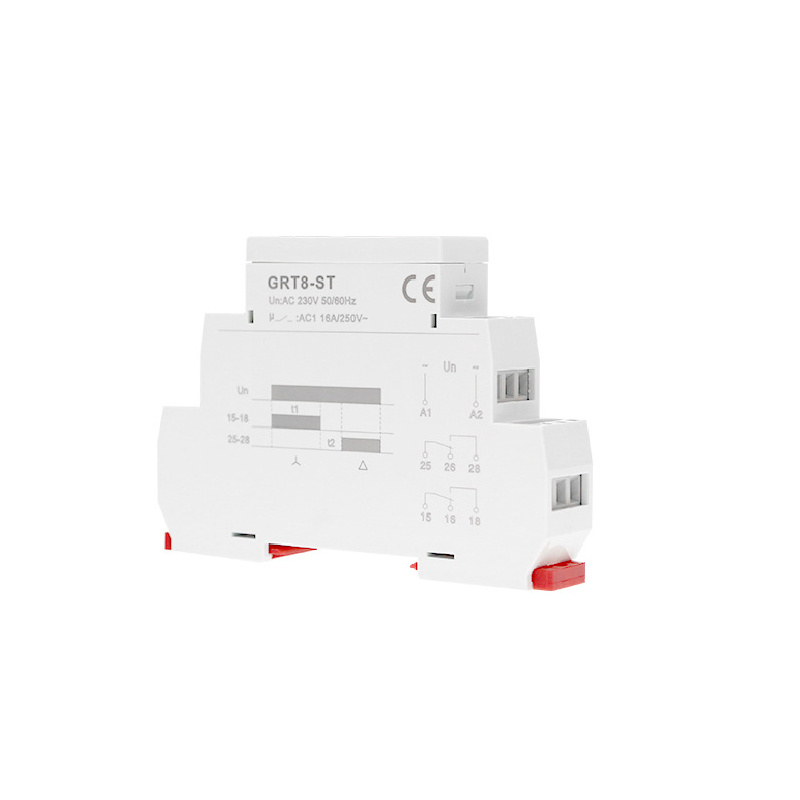

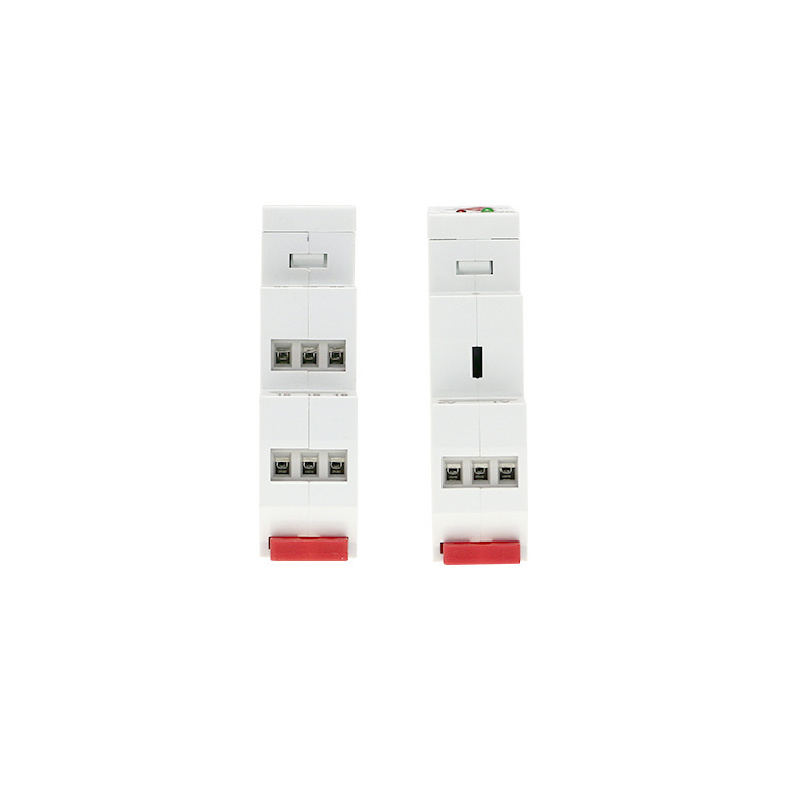

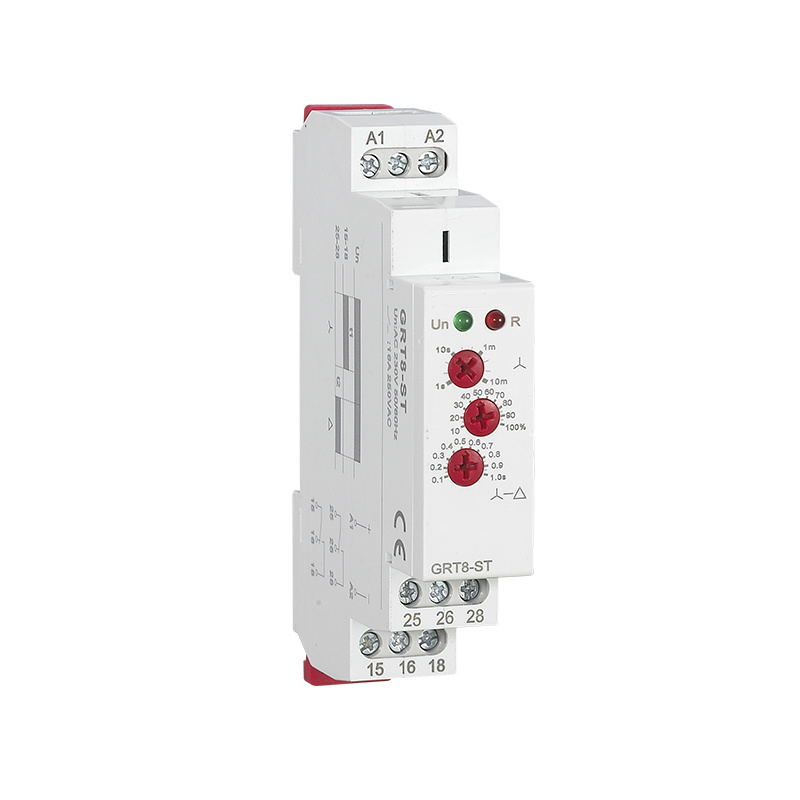

DIN Rail Delay on Star Delta Time Relay 16A Industrial Control Auto Timer Relays Time Delay

Name: DIN Rail Delay on Star Delta Time Relay 16A Industrial Control Auto Timer Relays Time Delay
Brand: all-electronics-online.com
SKU: 839156055
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GRT8-ST
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail

Product Description

Applications
-Designated for delay ON of motors star/delta.

Function Features
-Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges rough time setting by rotary switch.
-Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

GRT8 ST
Rated control supply voltage:
A230:AC230V
A400:AC400V
W240:AC/DC12V-240V
Delay ON star/delta GRT8 Series

Technical Data
Electrical features

Model NO	GRT8-ST
Function	Delay on Star Delta Relay
Voltage Range	AC230V (A230) OR AC/DC12V-240V OR AC415V
Output	2 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Glow Tubes Connections	Voltage range: AC 230V Yes(A1-S)
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
