Utility Electrical Co., Ltd. >> DIN Rail Mount Block Terminal 690V

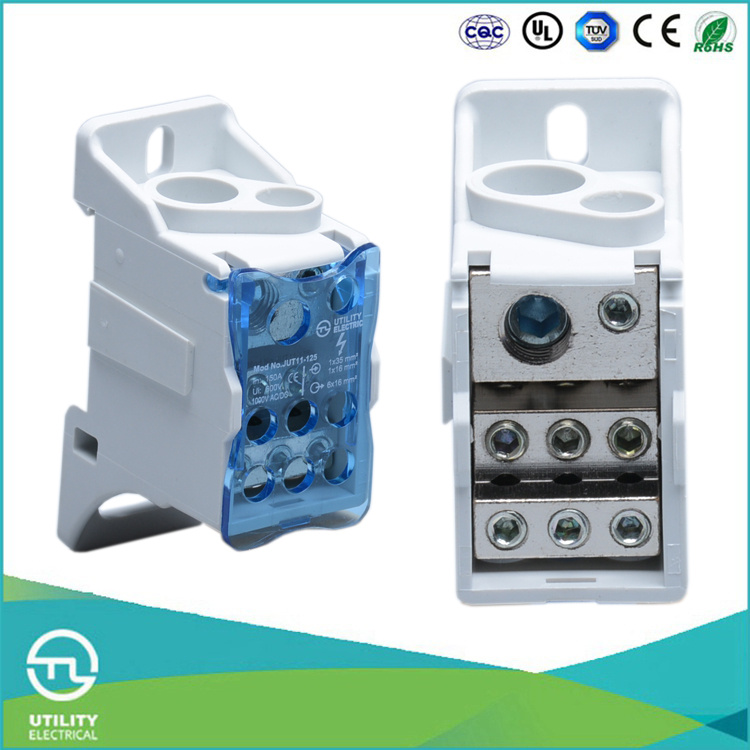

DIN Rail Mount Block Terminal 690V

DIN Rail Mount Block Terminal 690V
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT11-125
Current: 150A
Voltage: 690V
IEC: 60947-7-1
Certificate: TUV
Body Material: PA66
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

UTL Shopping Single-strand Line Power Din Rail Mount Block Terminal 690V IEC Voltage
Model No.JUT11-125
Item name Universal Power Distribution Terminal Block
ColorBlue or OEM
Current (Amp) 150A
Voltage(V)690V IEC
Dimensions (LxWxH)29x46x77(mm)
Insulation resistanceDC 1000V 1000MΩ min
Income line specification→In10 to 35       x1
→In 6 to 16        x4
Out→2.5 to 16   x2
MouldarSingle-strand line,can be extended jumper,can be double neutral line
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

Features:

Material:
Cover: PC UL94-V0                 Body: PA66 UL94-V0                     Block: Copper(Ni Plated)
Screw: Steel(Zinc Plated)        Fixed Part: Steel(Zinc Plated)         Standard: IEC 60947-7-1 IP20
Electrical:
(1) Voltage rating/Current rating: 690V/30A~500A;
(2) Insulation resistance: DC 1000V 1000MΩ min;
(3) Contact resistance: 20MΩ max;

UTL specialized in producing all kind of terminal block.Through persistent research and development, we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
