| Prod Model: |
S800E |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Special: |
DIN Rail Mounted |
| Frequency Range: |
0.01~400.00Hz |
| RS485: |
Standard RS485 Communication |
| Protective Structure: |
IP20 |
| Export Markets: |
Global |
| Size: |
Mini |
| Ambient Humidity: |
Max. 95% (Non-Condensing) |
| Pid Control: |
Built-in Pid Control |
| Voltage Range: |
220V: 170~240V |
| Altitude: |
Lower Than 1000m |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |

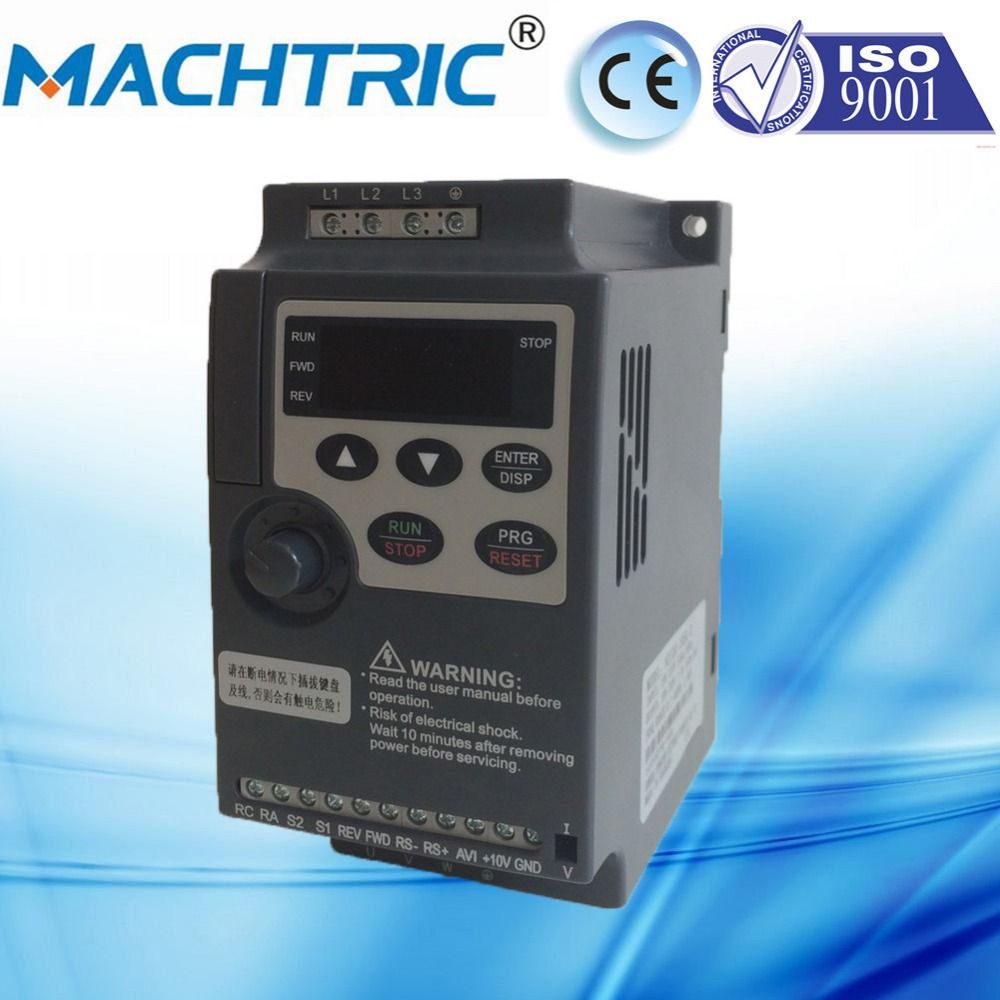

Product Description
S800E series
1, Din rail mounted inverter
2,cheap and easy operation
3,Similar as Delta VFD-L series
Shipping:
by sea, or express like UPS, DHL, FedEx...if we deliver a lots of inverters ,we could use a outer larger carton to pack it ,and cover PE film to protect goods. Xiamen export port is the nearest to our factory. delivery lead time is for 7 days when without forecast.
product specification:
Items | S800E |
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage |
Product series models
Model | Input | Power
Output
(KW) | Capacity
(KVA) | Current
Output
(A) | Load
Capacity
(60s)(A) | Motor
Equipped
(KW) |
| S800-2T0.4GE | 1PH/3PH
220V-
50/60HZ | 0.4 | 1.0 | 2.5 | 3.75 | 0.4 |
| S800-2T0.75GE | 0.75 | 2.0 | 5.0 | 7.50 | 0.75 |
| S800-2T1.5GE | 1.5 | 2.8 | 7.0 | 10.50 | 1.5 |
Our products:
1). Computerized control system of textile machines: Seamless Underwear machine, Glove Machine, Circular Knitting machine,
AutoStripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler
2). Inverter series:
Vector series: Z900, S2800E, S1100VG, S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Dedicated series: S100 Series, S200 series(circular knitting machine),
Mini Series : S800E
3). Welcome to know more about us, visit our website: www.machtric.com
Quick Details
Place of Origin: Fujian, China (Mainland)
Brand Name: Machtric
Model Number: S800E
Output Power: 0.4kw-1.5kw
Output Type: Triple
Size: super mini, Super mini
Weight: different
Input Voltage: 220V
Output Voltage: 220V
Type: AC-DC-AC
Output Frequency: 0-400Hz
Output Current: different
variable frequency inverter: Din rail mounted frequency inverter
Din rail VFD: Variable frequency drive
specification: easy operate and din rail
supply power: ac 220V
frequency inverter: variable voltage variable frequency
control mode: V/F control
