| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Pid Control: |
Built-in Pid Control |
| Frequency Range: |
0.01~400.00Hz |
| RS485: |
Standard RS485 Communication |
| Altitude: |
Lower Than 1000m |
| Protective Structure: |
IP20 |
| Export Markets: |
Global |
| Size: |
Mini |
| Ambient Humidity: |
Max. 95% (Non-Condensing) |
| Protection: |
Over Voltage |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

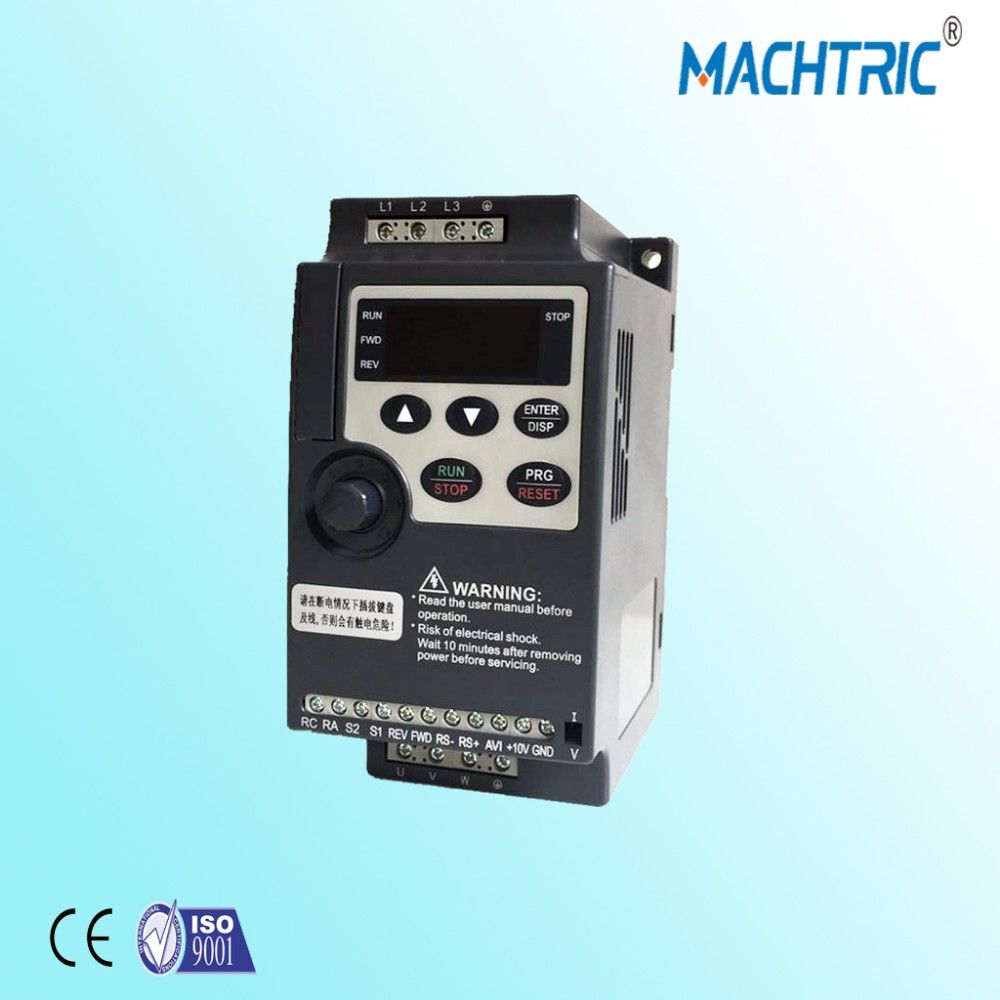

S800 E Series-Mini Inverter
Compact size design, small
Appearance, easy to operate
1).Easy operation and install
2) Cheap
3) Similar as Delta VFD-L series
4) DIN installation
5) Soon we will phase in 380V range for this type.
Power range: 0.4~2.2kw 220V 1ph
0.75 ~2.2kw 380v 3ph
Specification:ItemsS800E
|
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input: Input using the setting dial of the
Operate panel or RS485 or UP/DOWN.
Note: AVI terminals can be used to select an
analog voltage input(AV) and analog current
Input (AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input (AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation | Automatic voltage regulation function can be
Selected |
| Counter | Built-in 2 group of counters |
| Protection/Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set. |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, output short circuit, over current, and
Parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Structure | Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Installation | Mode | Wall-mounted or standard 35MM rail mounting |
| Model | Power output
(KW) | Capacity
(KVA) | Current output
(A) | Input current
(A) | Motor equipped
(KW) |
| 1PH AC220V,50/60HZ |
| S800-2S0.4GE | 0.4 | 1.0 | 2.5 | 3.75 | 0.4 |
| S800-2S0.75GE | 0.75 | 2.0 | 5.0 | 7.50 | 0.75 |
| S800-2S1.5GE | 1.5 | 2.8 | 7.0 | 10.50 | 1.5 |
| S800-2S2.2GE | 2.2 | 4.2 | 11.0 | 16.5 | 2.2 |
| 3PH AC380V ,50/60Hz |
| S800-4T0.75GE | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 |
| S800-4T1.5GE | 1.5 | 3.2 | 4.0 | 6.0 | 1.5 |
| S800-4T2.2GE | 2.2 | 4.0 | 5.0 | 7.5 | 2.2 |
Why choose us:
More than 15 years - we are more than 15 years professional manufacture frequency inverter
More than 50 countries- we exported our products to more than 50 countries all over the word.
Professional work team- we can accept OEM ODM
Powerful production capacity - we can offer a large quantity products each month.
Certification -we have passed CE
We offer 24 hours service
Inverter series:
Vector series: Z900, ,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Dedicated series: S100 Series, S200 series(circular knitting machine),
Mini Series : S800E
