DIN Rail Mounted PTC Element Small Semiconductor Electric Heater

Name: DIN Rail Mounted PTC Element Small Semiconductor Electric Heater
Brand: all-electronics-online.com
SKU: 784447485
Availability: InStock
Rating: 5 (142 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGK 047
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heating Element:	PTC Resistor, Self Regulating and Temperature Limi
Heater Body:	Extruded Aluminum Profile, Anodised
Mounting:	Clip for 35mm DIN Rail, En 60715
Fitting Position:	Vertical
Operating/Storage Temperature:	-20 to +70°c(-4 to +158°f)
Protection Type:	IP54/I (Earthed)
Accessories:	Screw Fixing
Weight:	0.2kg
Color:	Black
Length:	50-100mm
Installation:	Portable
Ventilation:	With Ventilation

Product Description

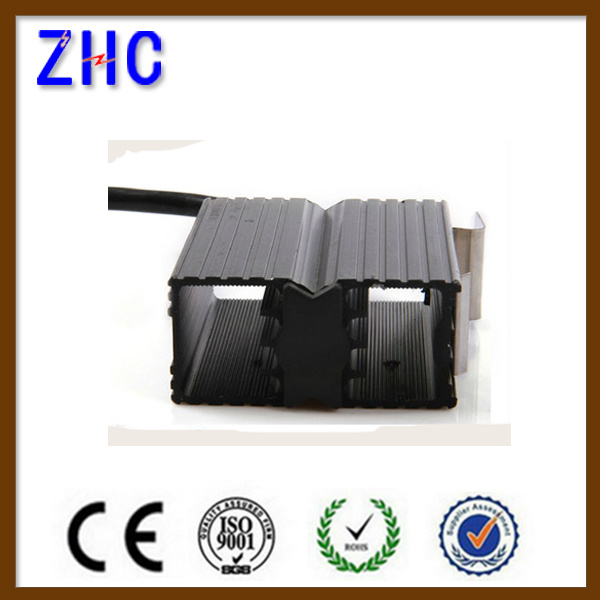

Din Rail Mounted PTC Element Small Semiconductor Electric Heater

Description of product

The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.

Product advantage
1. Dynamic heating up
2. Energy saving
3. Wide voltage range
4. Temperature limiting
5. Clip fixing

Technical Data

Heating element	PTC resistor, self regulating and temperature limiting
Heater body	Extruded aluminum profile, anodised
Mounting	Clip for 35mm DIN rail, EN 60715
Fitting position	vertical
Operating/Storage temperature	-20 to +70°C(-4 to +158°F)
Protection type	IP54/I (earthed)
Accessories	Screw fixing
Weight	0.1kg, 0.2kg

1) at 20°C (68°F) ambient temperature
2) (min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx, 10%.

Art. No.	Operating voltage	Heatingcapacity	Inrush current max.	Lenth	Weight (approx.)	Connecting
04700.0-00	120-240V AC/DC	10W	1.0A	50mm	0.10kg	3×0.5mm2×300mm sheather cable(silicone)
04701.0-00	120-240V AC/DC	20W	2.5A	60mm	0.20kg	3×0.5mm2×300mm sheather cable(silicone)
04702.0-00	120-240V AC/DC	30W	3.0A	70mm	0.20kg	3×0.5mm2×300mm sheather cable(silicone)
04700.9-00	110-120V AC/DC	10W	1.0A	50mm	0.10kg	3×AWG 20×300mm sheather cable
04701.9-00	110-120V AC/DC	20W	1.5A	70mm	0.20kg	3×AWG 20×300mm sheather cable
04702.9-00	110-120V AC/DC	30W	1.5A	100mm	0.20kg	3×AWG 20×300mm sheather cable
