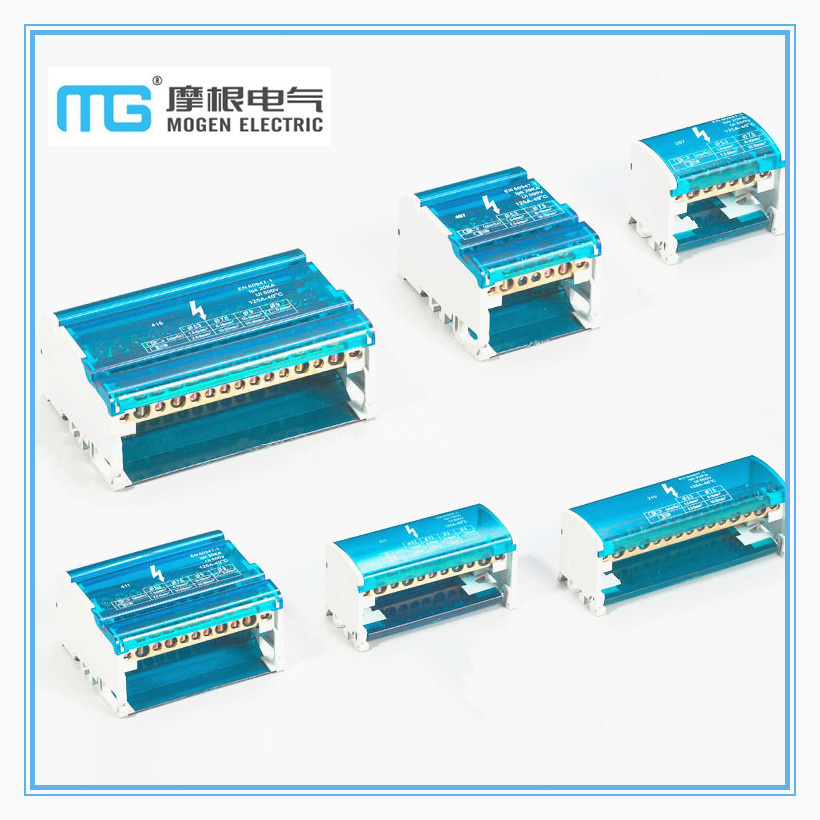

DIN Rail Mounting Brass Earth Bar Terminal Box
| Price: |
US $ 0.155-0.17/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MG-015 |
| Markets: |
North America,South America,Africa,Mid East,Eastern Asia,Western Europe |
| Size: |
6*9 8*12 |
| Color: |
Green /Blue |
| Hs: |
8536900000 |
| Plastic Holder: |
PA/ABS |
| Body Material: |
Brass |
| Voltage: |
250-450V |
| Environmental Protection: |
General |
| Shape: |
Round |
| Application: |
Battery |
| Contact Termination Form: |
Screws Fixed |
| Connection Mode: |
Push-Pull Connection |
| Brand: |
Mogen |
Product Description
1:Material :
PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C
The pressure line screws on : zinc-plated iron
Rated Voltage: 250V-450V
Color: Green Blue Yellow
Cross section size: 6*9
Cable wire: 16mm2
Working Temp: ABS: --20 ° C TO 70 ° C PE: --30 ° C to 110 °
2: Packing Details:
1>Standard export packing
2>Neutral packing
3>According to customer needs
3: Our advantages:
We are factory manufacture in Terminal and Busbar with high quality and competive price for many years
With an experienced and perfessional team, Have exported products to many countries all over the world
1)We have our own design team, own mold workshop and owned many CNC machine tools
2)Every new product can be made accurate by your design and demand.
3)REACH, IP68, RoHS and CE certifications guarantee the quality of our products.
4)Keep smooth delivery on time.
5)Perfect package according to your demand.
6)Enough stock to fit your urgently need.
7) Excellent inoxidability and High corrosion resistance
8) Our own mold workshop and injection molding workshop
9) Provide free samples and OEM Service
10) Prompt Delivery and Small Order Accept
11) Certificate: CE&RoHS&OTHERS
12) Tolerance: ± 0.3mm
13We can discuss directly in HongKong Electronics Fair, Canton Fair,
|
Itme No. |
Spec. |
Rated current
( A ) |
Rated voltage
( V ) |
L1 |
L2 |
H |
W |
Max. section |
Hole. Qty |
Plastic Setting |
|
W×H |
mm |
|
207 |
6.5 x 12 |
125A |
500V |
67 |
48 |
50 |
45 |
35mm 2 |
2 x 7 |
PA |
|
211 |
100 |
86 |
50 |
45 |
2 x 11 |
|
215 |
134 |
118 |
50 |
45 |
2 x 15 |
|
407 |
67 |
48 |
50 |
90 |
4 x 7 |
|
411 |
100 |
86 |
50 |
90 |
4 x 11 |
|
415 |
134 |
118 |
50 |
90 |
4 x 15 |
|
413 |
8 x 17 |
160A |
180 |
168 |
73 |
138 |
50mm 2 |
4 x 13 |
|
Items |
Brass size |
LxWxH mm |
PCS/Carton |
Packing Size |
C.W Kgs |
N.W Kgs |
|
MG-015/207 |
6.5*12 |
65*42*50 |
100 |
38.5*27.5*24.5 |
13 |
12 |
|
MG-015/211 |
6.5*12 |
100*42*50 |
100 |
43.5*27.5*30 |
18 |
17 |
|
MG-015/215 |
6.5*12 |
135*42*50 |
100 |
57.5*26.5*30.5 |
25 |
22 |
|
MG-015/407 |
6.5*12 |
65*85*50 |
100 |
40*37*30.5 |
25 |
23 |
|
MG-015/411 |
6.5*12 |
100*85*50 |
50 |
48*22.5*30.5 |
19 |
18 |
|
MG-015/415 |
6.5*12 |
135*85*50 |
50 |
47*29.5*30.5 |
24 |
22 |
Wenzhou Mogen Electric Co., Ltd founded in 1999, has been a comprehensive enterprise incorporating industry and trade after more than 10 years' Development,
Which is professionally engaged in designing, exploring and manufacturing various terminals and connectors.
Our main products are terminal blocks, insulated terminals and non-insulated terminals, terminal ends, cable clips as well as cable glands, mainly sold to the Middle East, Southeast Asia, South Africa, Europe, America and Australia. The company has established quality system according to the ISO9001 International standards, applied to the whole process of controlling the design and production of the products and as well as the service. We have obtained the Certifications of ISO9001, TUV, CE, RoHS, SGS, etc.
We provide the high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transport, automobile manufacturing, household appliances,
And electrical installations etc.
We have strong technical force, advanced technique of production and complete testing equipments. We maintain "Excellent quality, Exceeding customer needs" as our business purposes, supply electrical products to our customers with the quality of "Safe, Reliable, Suitable and Steady", observe the commitment of "Leader in science and technology, Honest operation, Best Quality and Customer first", and provide best
After-sell services to our new and old clients from both domestic and abroad with our sincere hearts.
