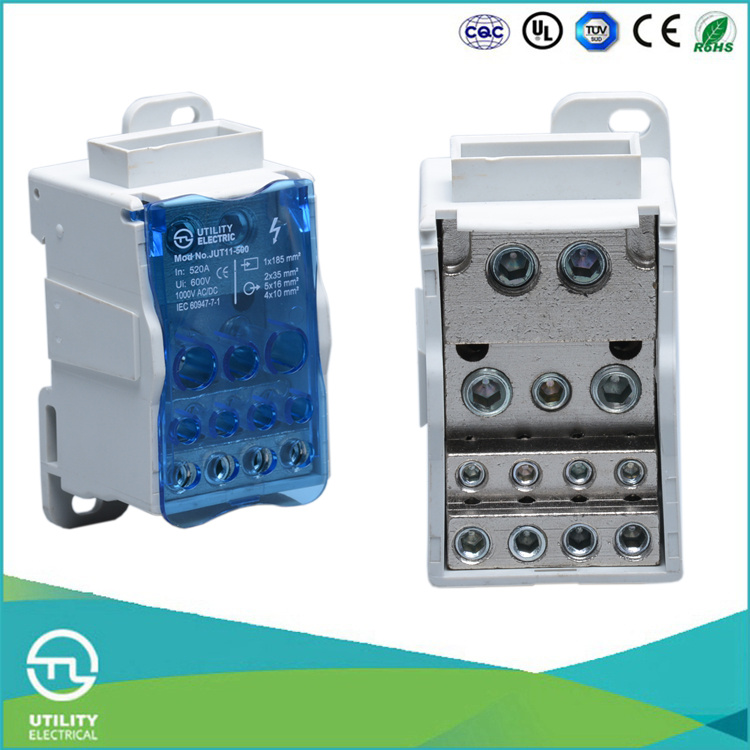

DIN Rail Plastic Terminal Blocks 520A

DIN Rail Plastic Terminal Blocks 520A
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT11-500
IEC: 60947-7-1
Current: 520A
Voltage: 690V
Body Material: PA66
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

UTL 2016 New Business Ideas Screw Clamp Din Rail Plastic Terminal Blocks 520A

Model No.JUT11-500
Item name Universal Power Distribution Terminal Block
ColorBlue or OEM
Current (Amp) 520A
Voltage(V)690V IEC
Dimensions (LxWxH)49x50x96(mm)
Insulation resistanceDC 1000V 1000MΩ min
Income line specification→ In 4×15.5×0.8 to 8×24     x1
Out→ 6 to 35                       x2
Out→ 2.5 to 16                    x5
Out→ 2.5 to 10                    x4
MouldarAllows a variety of combinations,can be used unipolar,bipolar,three poles,four poles
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

Features:

Material:
Cover: PC UL94-V0                 Body: PA66 UL94-V0                     Block: Copper(Ni Plated)
Screw: Steel(Zinc Plated)        Fixed Part: Steel(Zinc Plated)         Standard: IEC 60947-7-1 IP20
Electrical:
(1) Voltage rating/Current rating: 690V/30A~500A;
(2) Insulation resistance: DC 1000V 1000MΩ min;
(3) Contact resistance: 20MΩ max;
