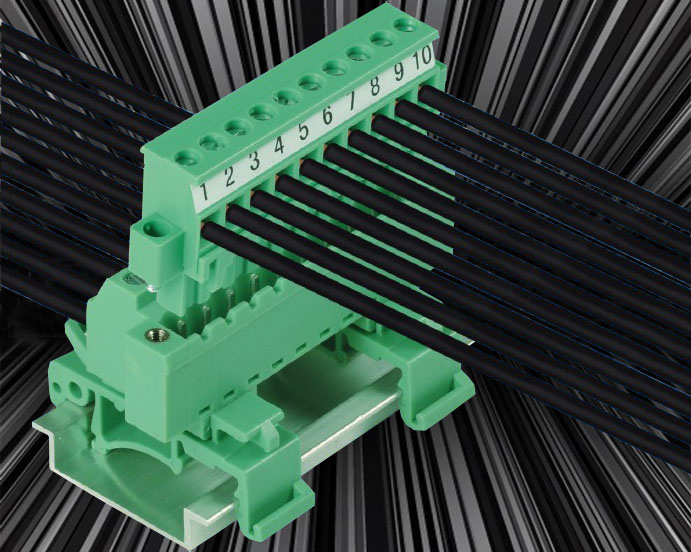

DIN Rail Plugable Terminal Block with 5.08mm Pitch for Wire to Wire Connection

DIN Rail Plugable Terminal Block with 5.08mm Pitch for Wire to Wire Connection
Price: US $ 2.8-3/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: KF2EDGKAM-5.08 / KF2EDG-UVKM-5.08
Color: Green
Application: Solar Power
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed
Brand: Kefa

Product Description





Part number: KF2EDGKAM-5.0/5.08

Rated voltage: 300V
Rated current: 10A
Wire range: 28-12AWG
Withstanding voltage:AC2500V/1min
Strip length:7-8mm
Torque:0.4Nm(3.5 lb.in)


Pitch: 5.0mm/5.08mm
Poles: 2P to 24P

Materials:
Contact: Ni-plated phosphor bronze
Wire guard:  Ni-plated brass
Screw:M2.5, Zinc-plated steel
Housing: PA66.UL 94V-0
Maximum soldering: 250°C for 5 seconds
Temperature range: -40 to 105°C

Part number: KF2EDG-UVKM-5.08

Material

Pitch:5.08mm
Poles:2P-24P
Screw:M2.5,Zinc plated steel
Contact:Tin-plated brass
Wire cage:Ni-plated brass
Housing:PA66.UL94V-0


Electrical

Rated voltage:300V
Rated current:10A
Withstanding voltage:AC2500V/1Min
Wire range:28-12AWG


Mechanical

Temperature range:-40deg to +105deg
Max soldering:+250deg for 5 sec.
Torque:0.4Nm(3.5 lb.in)
Strip length:7mm
Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.

We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
